Loc-Line 41403 1/8" Round Nozzle for 1/4" Modular Hose, Pack of 4, Orange

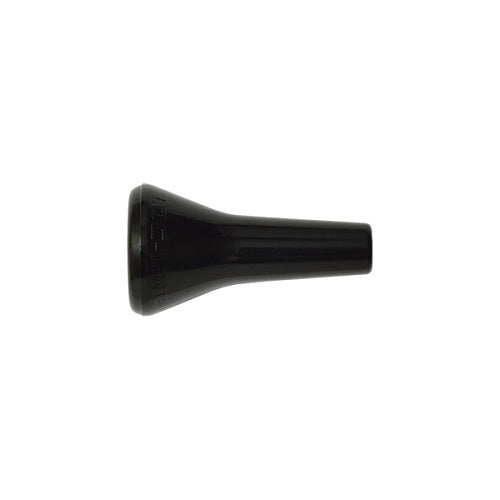

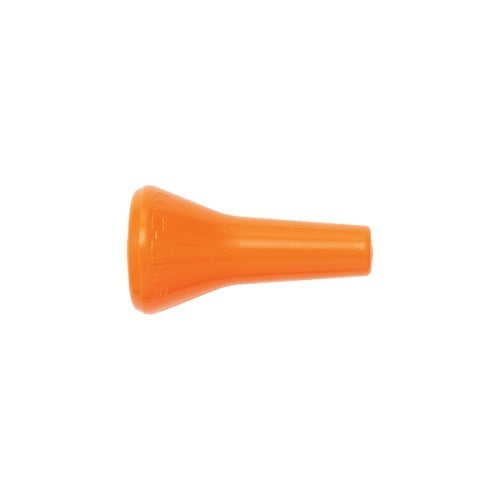

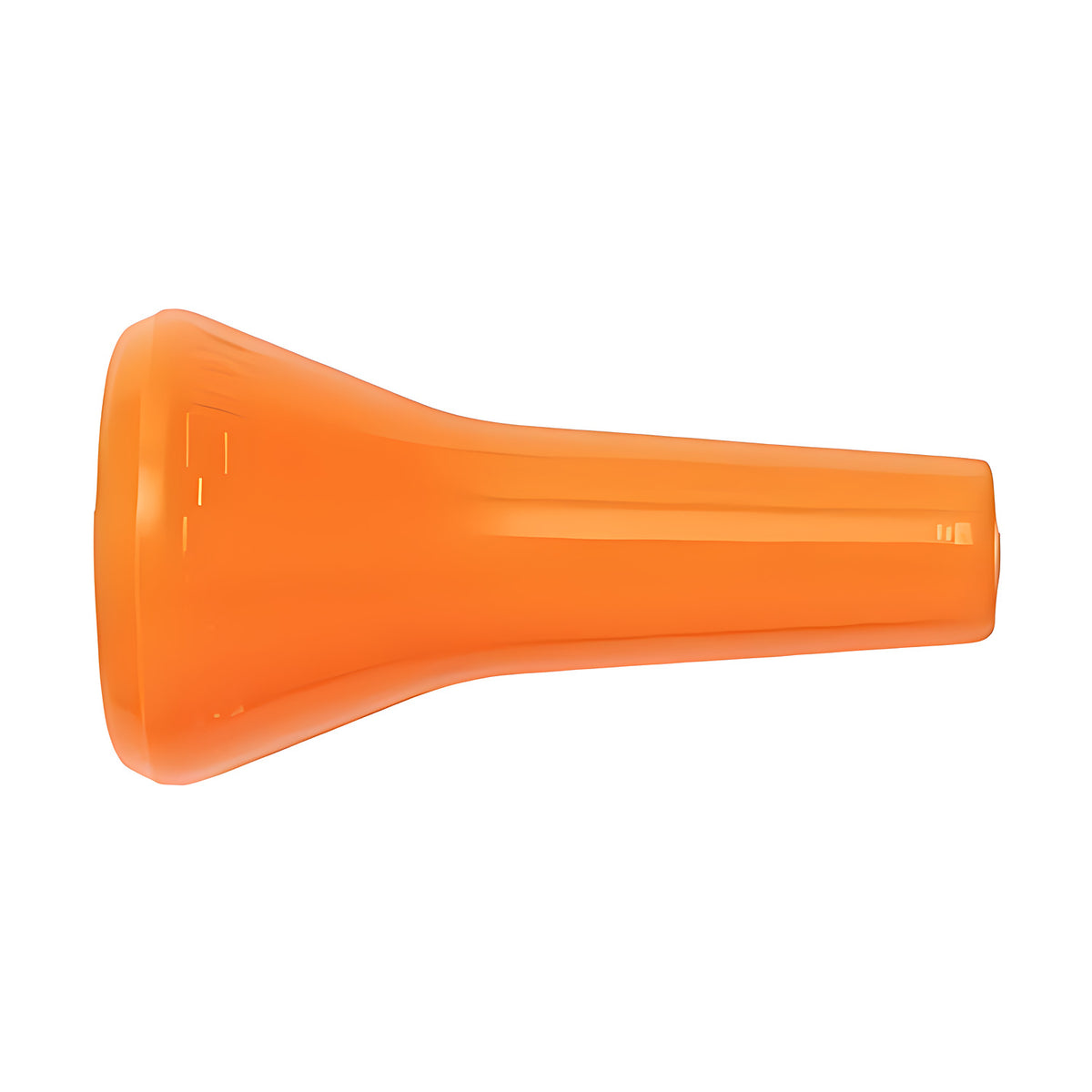

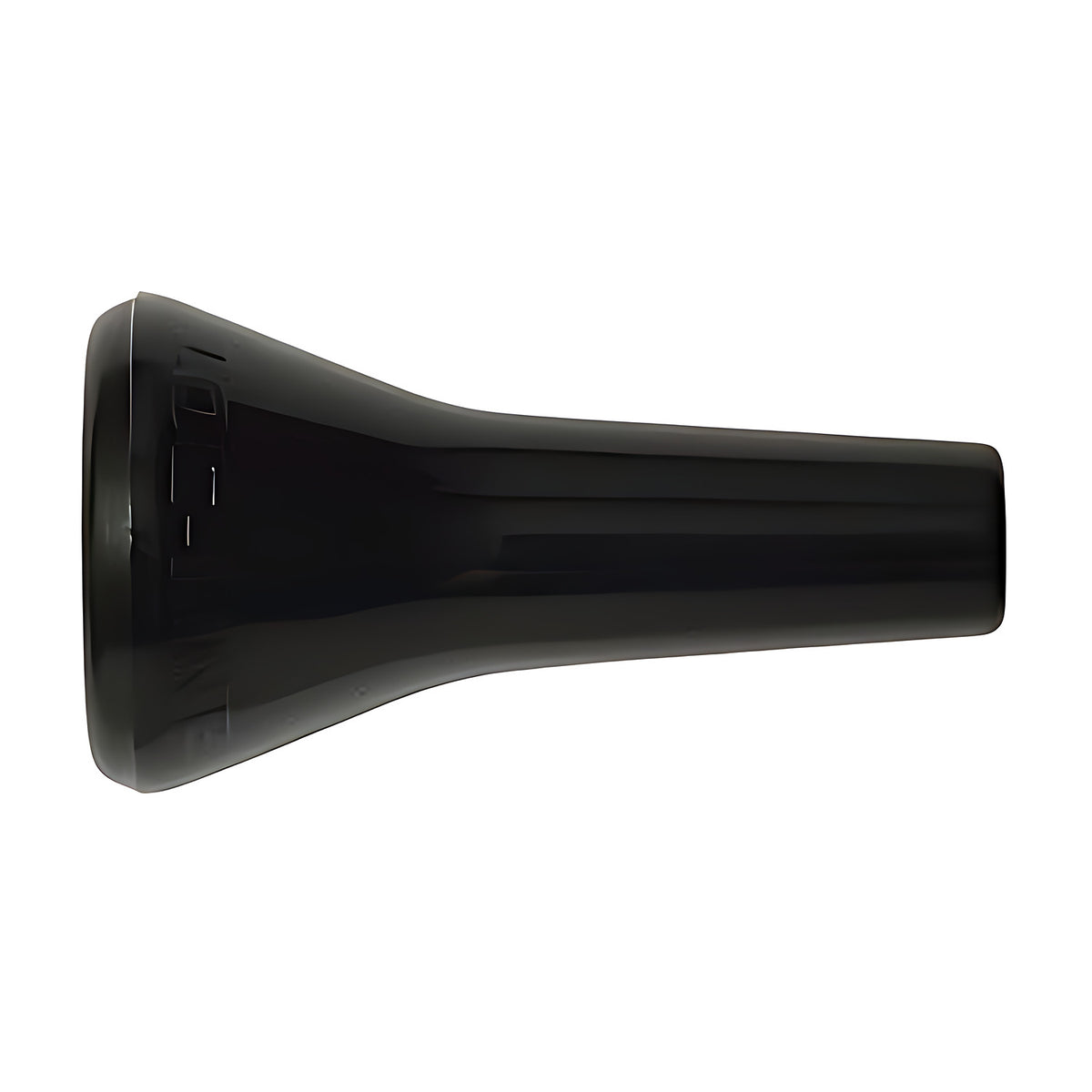

Loc-Line 41403 is the 1/8" round nozzle for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). The catalogue lists 41403 as a pack of 4 and 49423 as a pack of 50. This listing has three variants: 41403 (pack of 4, orange), 49423 (pack of 50, orange) and 49423-BLK (pack of 50, black).

The catalogue lists it with the 1/4" system nozzles. The 1/4" system standard line pressure is 55 PSI (manufacturer-stated).

Where this product is used

• 1/4" system nozzle for machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
• Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).

Features

• 1/8" round nozzle: 41403 is a pack of 4 and 49423 is a pack of 50
• Colour suffixes printed for 49423: -BLK (black), -G (grey) and -W (white); adding one to the part number orders that colour (manufacturer-stated)
• Listing colours: black and orange (orange is a store colour option; black comes from the colour suffix)
• Made for the 1/4" Loc-Line system; 1/4" system parts do not fit hose from another system

Common specifications

Key specifications

Pack contents and colour suffixes are taken from the Loc-Line catalogue (Lockwood Products). Orange is a store colour option, not printed in the catalogue.

Selecting the right option

The catalogue lists round nozzles in 3 sizes for the 1/4" system: 1/16" (41402), 1/8" (41403), 1/4" (41404), with the matching packs of 4 or 50 under their own numbers. Choose the pack by quantity: 41403 holds 4 and 49423 holds 50. This listing offers black and orange; the catalogue prints -BLK (black), -G (grey) and -W (white) as colour suffixes for 49423, added to the part number when ordering (manufacturer-stated). Match the nozzle to the hose system: a 1/4" system part does not fit hose from another system. The catalogue lists 41403 among the packs that supply one nozzle each to the 1/4" Nozzle-Rama pack (41490).

Related products

Other nozzles for the 1/4" system: 1/16" round nozzles for 1/4" hose (41402, 49422), 1/4" round nozzles for 1/4" hose (41404, 49424) and 1/8" 90° nozzles for 1/4" hose (41471, 49440). Acid resistant version: acid resistant 1/8" round nozzles for 1/4" hose (pack of 50). Nozzle-Rama pack: 1/4" Nozzle-Rama pack (41490). Hose and fittings for the 1/4" system: 1/4" modular hose, 50 ft coil (49421), 1/4" hose kit (40413), 1/4" NPT connectors and 1/4" hose assembly pliers.
