Loc-Line 1/8" 90° nozzle, 4

Loc-Line 41471 is the 1/8" 90° nozzle for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). 41471 is a pack of 4 and 49440 is a pack of 20. It comes in two options: 41471 (pack of 4) and 49440 (pack of 20).

It is grouped with the 1/4" system nozzles. The 1/4" system standard line pressure is 55 PSI.

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

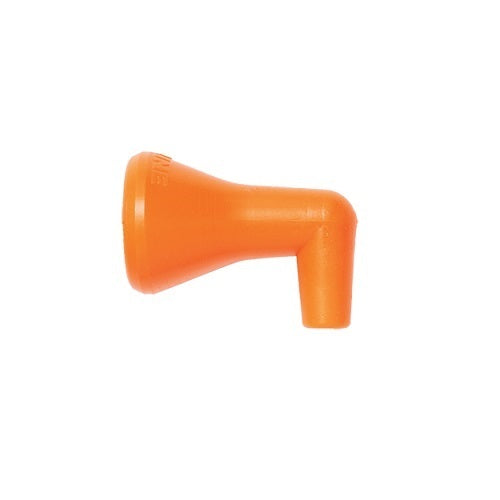

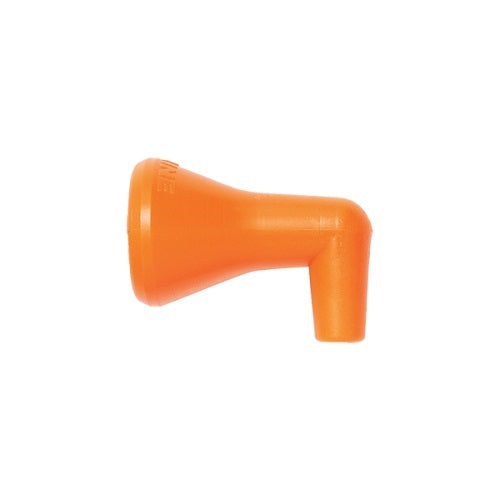

• 1/8" 90° nozzle: 41471 is a pack of 4 and 49440 is a pack of 20
• Colour suffixes printed for 49440: -BLK (black) and -G (grey), adding one to the part number orders that colour
• Made for the 1/4" Loc-Line system, 1/4" system parts do not fit hose from another system
• Nozzle: 1/8" 90° nozzle

Key specifications

Choosing the right option

90° nozzles in 3 sizes for the 1/4" system: 1/16" (41470), 1/8" (41471), 1/4" (41472), with the matching packs of 4 or 20 under their own numbers. Choose the pack by quantity: 41471 holds 4 and 49440 holds 20. The colour suffixes for 49440 are -BLK (black) and -G (grey), added to the part number when ordering. Match the nozzle to the hose system: a 1/4" system part does not fit hose from another system. 41471 is one of the packs that supply one nozzle each to the 1/4" Nozzle-Rama pack (41490).

Other nozzles for the 1/4" system: 1/16" 90° nozzles for 1/4" hose (41470, 49439), 1/4" 90° nozzles for 1/4" hose (41472, 49441), 1/8" round nozzles for 1/4" hose (41403, 49423).

Nozzle kit with the 90° sizes: 1/4" 90° nozzle kit (41474).

Nozzle-Rama pack: 1/4" Nozzle-Rama pack (41490).
