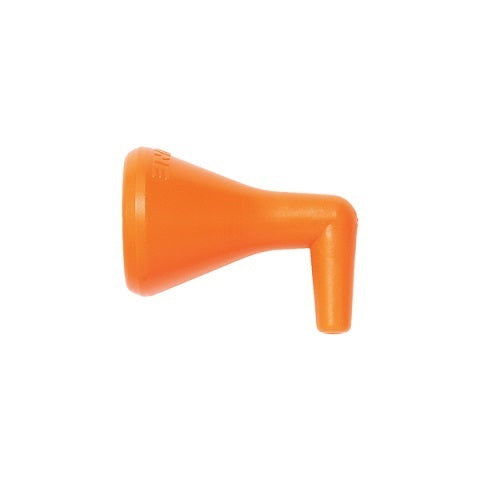

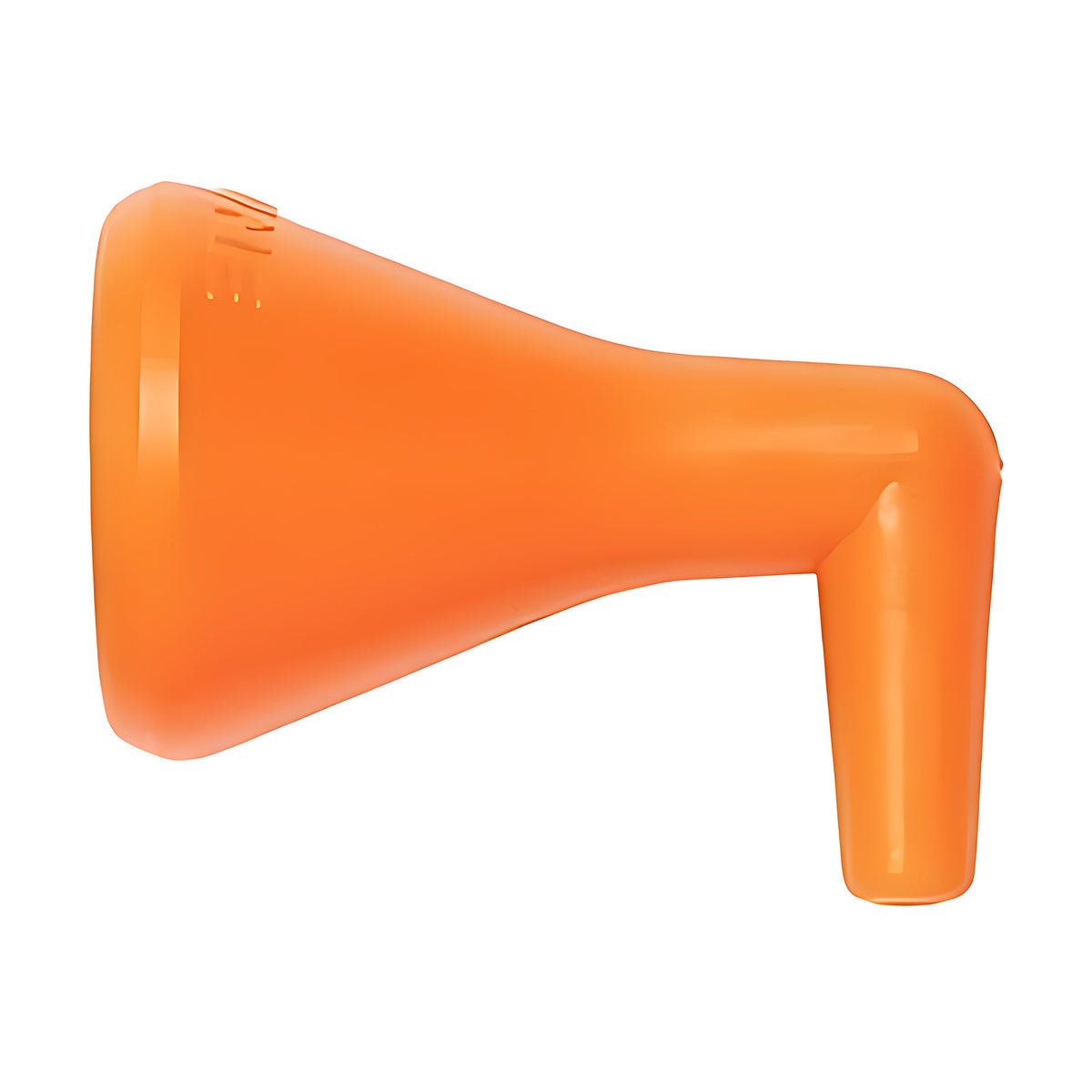

Loc-Line 41470 1/16" 90° Nozzle for 1/4" Modular Hose, Pack of 4

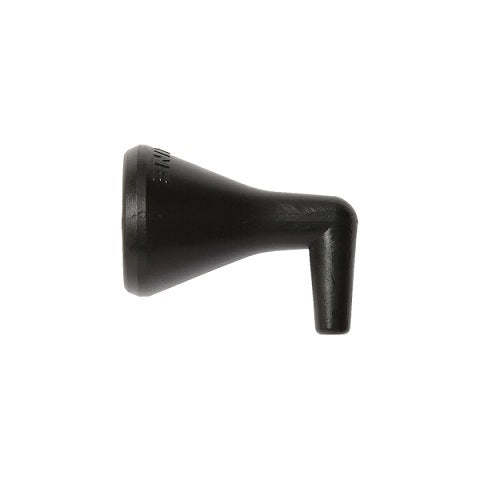

Loc-Line 41470 is the 1/16" 90° nozzle for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). The catalogue lists 41470 as a pack of 4 and 49439 as a pack of 20. This listing has two variants: 41470 (pack of 4) and 49439 (pack of 20).

The catalogue lists it with the 1/4" system nozzles. The 1/4" system standard line pressure is 55 PSI (manufacturer-stated).

Where this product is used

• 1/4" system nozzle for machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
• Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).

Features

• 1/16" 90° nozzle: 41470 is a pack of 4 and 49439 is a pack of 20

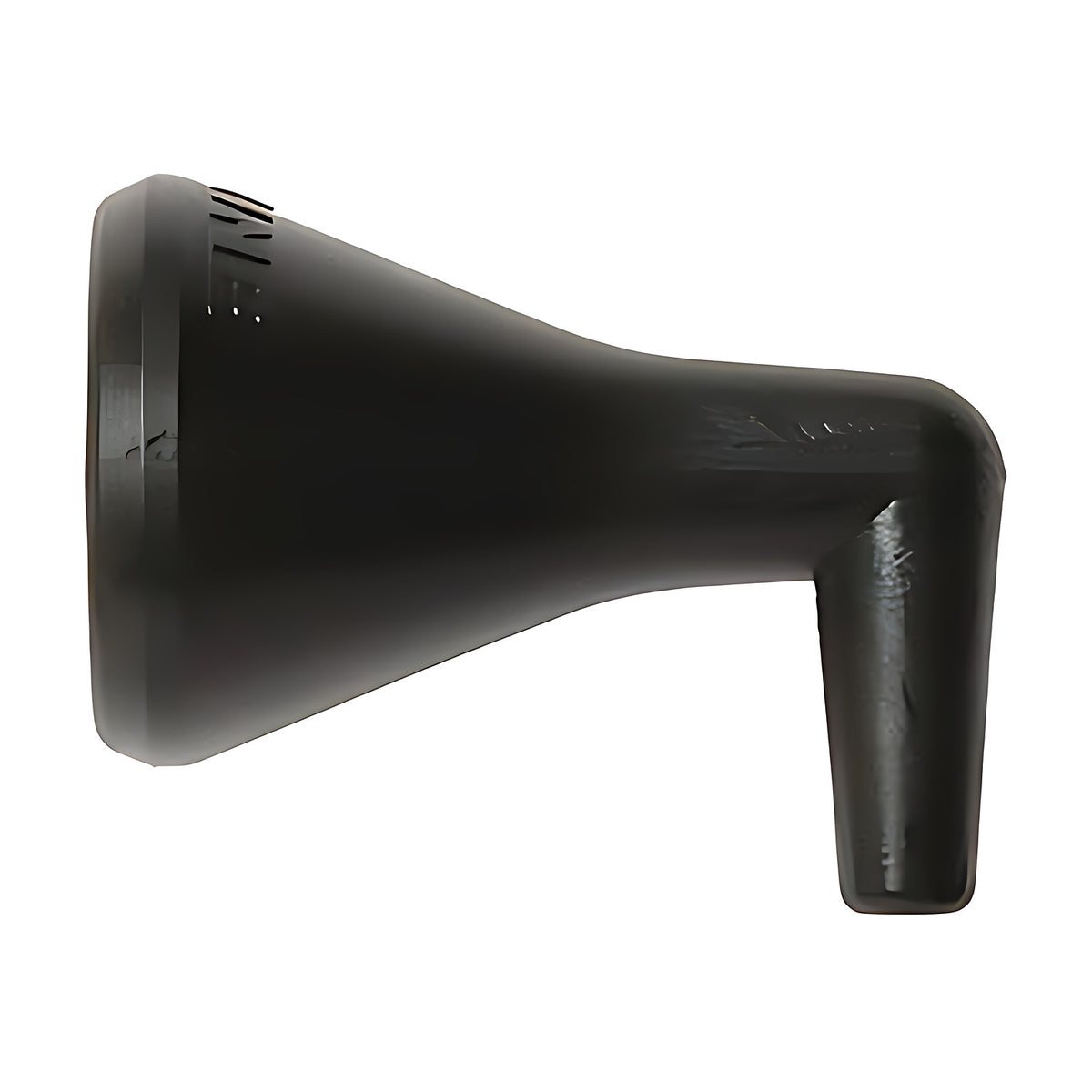

• Colour suffixes printed for 49439: -BLK (black) and -G (grey); adding one to the part number orders that colour (manufacturer-stated)
• Base part numbers only in this listing, with no colour suffix
• Made for the 1/4" Loc-Line system; 1/4" system parts do not fit hose from another system

Common specifications

Key specifications

Pack contents and colour suffixes are taken from the Loc-Line catalogue (Lockwood Products).

Selecting the right option

The catalogue lists 90° nozzles in 3 sizes for the 1/4" system: 1/16" (41470), 1/8" (41471), 1/4" (41472), with the matching packs of 4 or 20 under their own numbers. Choose the pack by quantity: 41470 holds 4 and 49439 holds 20. The catalogue prints -BLK (black) and -G (grey) as colour suffixes for 49439, added to the part number when ordering (manufacturer-stated). This listing has the base part numbers only. Match the nozzle to the hose system: a 1/4" system part does not fit hose from another system. The catalogue lists 41470 among the packs that supply one nozzle each to the 1/4" Nozzle-Rama pack (41490).

Related products

Other nozzles for the 1/4" system: 1/8" 90° nozzles for 1/4" hose (41471, 49440), 1/4" 90° nozzles for 1/4" hose (41472, 49441) and 1/16" round nozzles for 1/4" hose (41402, 49422). Nozzle kit with the 90° sizes: 1/4" 90° nozzle kit (41474). Nozzle-Rama pack: 1/4" Nozzle-Rama pack (41490). Hose and fittings for the 1/4" system: 1/4" modular hose, 50 ft coil (49421), 1/4" hose kit (40413), 1/4" NPT connectors and 1/4" hose assembly pliers.
