Loc-Line 61515 3/4" Elbow for 3/4" Modular Hose, Pack of 2
Available
Loc-Line 61515 and 69555 are the 3/4" elbow for the 3/4" Loc-Line modular hose system (Lockwood Products, USA): 61515 is a pack of 2; 69555 is a pack of 20. 69555-BLK is the pack of 20 in black. Orange is the store colour option for the base part numbers. The catalogue lists this part as the 3/4" Elbow, under accessories in its 3/4-inch system section.
The catalogue says a colour is ordered by adding a suffix to the part number (-BLK black, -G grey, -W white) and prints -BLK and -G against the bulk pack number 69555 (manufacturer-stated).
Where this product is used
- 3/4" Elbow in the 3/4" system for machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
- Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).
Features

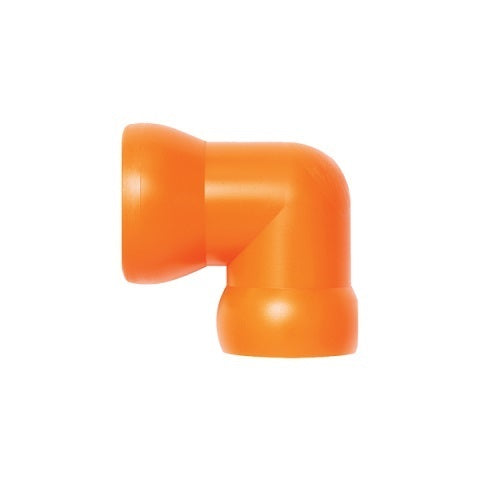

- Pack of 2: 61515; Pack of 20: 69555 and 69555-BLK (black)
- Colours in this listing: orange for the base part numbers (store colour option); black (69555-BLK); the catalogue also prints -G (grey) against bulk pack number 69555 (manufacturer-stated)
- Catalogue section: accessories, 3/4-inch system
Common specifications
| Specification | Detail |
|---|---|
| System | 3/4" Loc-Line modular hose |
| Part | 3/4" Elbow |
| Pack numbers | Pack of 2: 61515; Pack of 20: 69555, 69555-BLK |
| Colours in this listing | Orange (store colour option): 61515, 69555; Black: 69555-BLK |
| Colour suffixes printed | -BLK (black) and -G (grey) against bulk pack number 69555 (manufacturer-stated) |
| Line pressure, 3/4" system | 20 PSI standard; up to 50 PSI with element clamps on all joints, fully tightened (manufacturer-stated) |
| Flow rate, 3/4" system | 1,140 gal/hr (manufacturer-stated) |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F (manufacturer-stated) |
Key specifications
| Part number | Pack | Colour | Colour suffix |
|---|---|---|---|
| 61515 | Pack of 2 | Orange (store colour option) | none (base number) |
| 69555 | Pack of 20 | Orange (store colour option) | none (base number) |

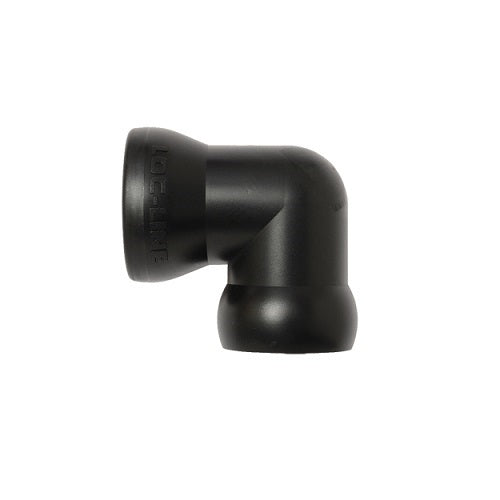

| 69555-BLK | Pack of 20 | Black | -BLK (manufacturer-stated) |
Pack numbers come from the Loc-Line catalogue. Colour suffixes are manufacturer-stated; orange and blue are the store colour options.
Selecting the right option
Choose 61515 for a pack of 2 or 69555 for a pack of 20. 69555-BLK is the same pack in black; the catalogue says adding -BLK to a part number orders it in black (manufacturer-stated). Match every fitting to the hose system: a 3/4" system part does not fit hose from another system.
Related products
Other 3/4" system fittings: 3/4" double sockets and 3/4" Y fittings. 3/4" hose and connectors: 3/4" hose, 50 ft coil, 3/4" hose, 5 ft coil and 3/4" NPT connectors. Assembly tool: 3/4" assembly pliers. Same part in other hose sizes: 1/4" elbows and 1/2" elbows.
