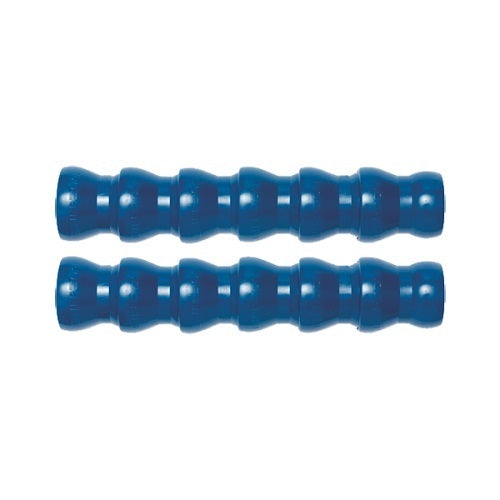

Loc-Line 61501 3/4" Modular Hose Segments, Pack of 2, Blue

Loc-Line 61501 is a pack of 2 hose segments for 3/4" hose, each 5-3/4" long. It belongs to the 3/4" Loc-Line modular hose system (Lockwood Products, USA), where the catalogue counts 1 segment as 6 elements (manufacturer-stated). This listing has two variants: 61501 in blue (the base part number) and 61501-BLACK in black (the -BLK suffix).

The hose is a ball and socket assembly with enough friction between the parts for it to stay in position once set (manufacturer-stated). The catalogue gives the 3/4" system a standard line pressure of 20 PSI with a flow rate of 1,140 gal/hr, and up to 50 PSI with element clamps on all joints, fully tightened (manufacturer-stated). It adds that every application has variables that affect the maximum hose pressure and recommends testing whenever possible (manufacturer-stated). The catalogue lists standard acetal parts, which include the blue, black, grey and white colours, with a maximum operating temperature of 170 °F and a melting point of 329 °F (manufacturer-stated).

Where this product is used

• Machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
• Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).

Features

• Ball and socket hose that stays in position once set (manufacturer-stated)

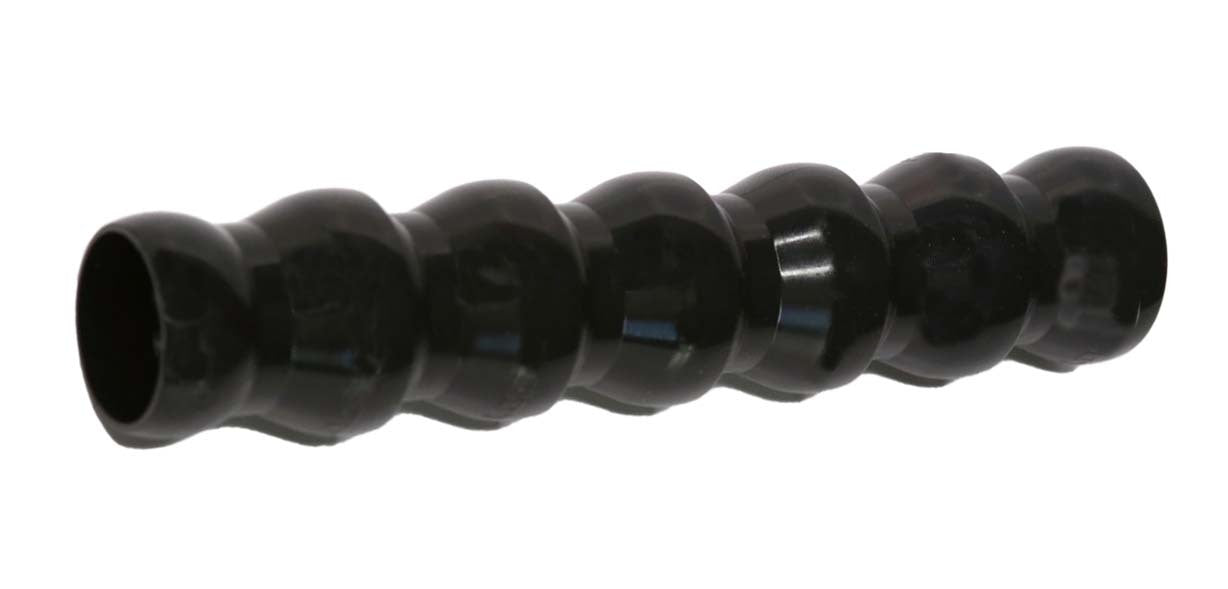

• Blue (61501) and black (61501-BLACK) in one listing; adding -BLK to a part number orders it in black (manufacturer-stated)
• Contents (2) 5-3/4" long segments; the catalogue counts 1 segment as 6 elements (manufacturer-stated)
• Standard line pressure 20 PSI at 1,140 gal/hr for the 3/4" system; up to 50 PSI with element clamps on all joints, fully tightened (manufacturer-stated)
• Acetal: maximum operating temperature 170 °F, melting point 329 °F (manufacturer-stated)

Common specifications

Key specifications

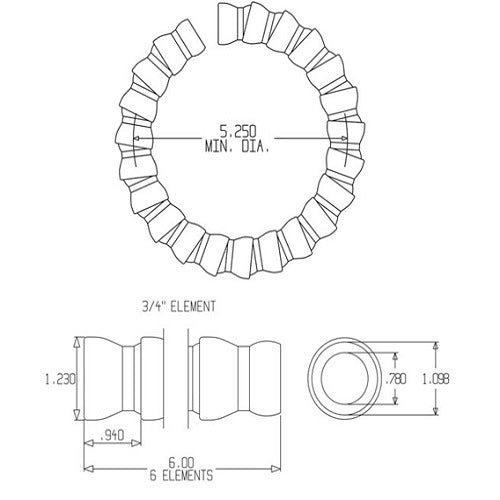

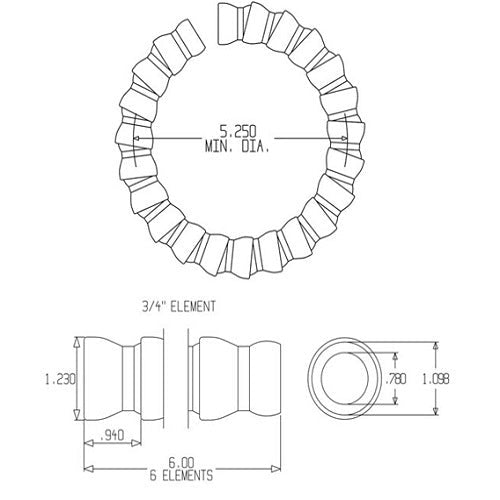

Pack contents and colour suffixes are taken from the Loc-Line catalogue (2019). 1 segment = 6 elements (manufacturer-stated).

Selecting the right option

This listing offers blue and black. The catalogue prints -BLK (black) and -G (grey) as colour suffixes for this hose, added to the part number when ordering (manufacturer-stated). Match every nozzle, fitting and clamp to the hose system: a 3/4" system part does not fit hose from another system. Use element clamps on all joints if you want to work above the standard line pressure.

Related products

Other 3/4" hose parts: 3/4" hose, 50 ft coil (69541), 3/4" hose, 5 ft coil (69539) and 3/4" hose segments, bulk 25 ft (69540). Matching 3/4" system parts: 3/4" round nozzles, 5/8" round nozzles, 3/4" NPT connectors, 3/4" assembly pliers and 3/4" hose kit (60513).
