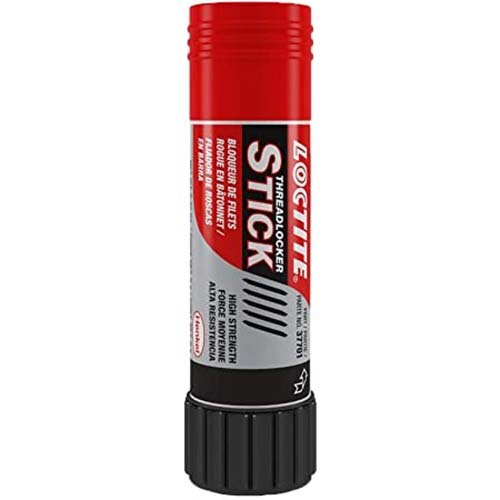

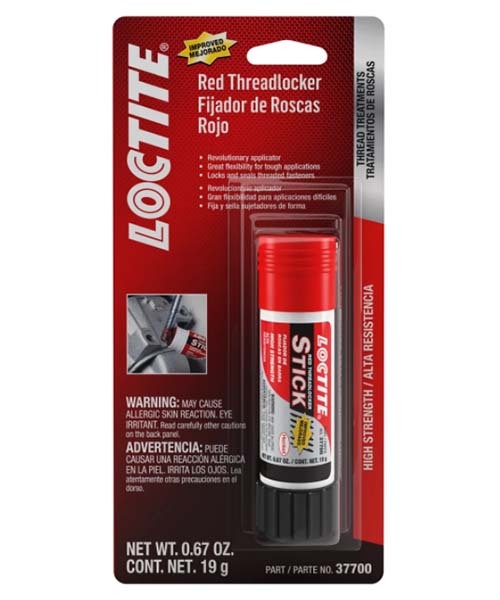

Loctite 268 High Strength Threadlocker Stick 19g

Loctite 268 is a one-component, red, high strength anaerobic threadlocker supplied as a self-feeding stick with a wax consistency. Henkel describes it as a high strength version of an anaerobic threadlocking material.

The stick form suits fasteners where a liquid product would run or be hard to apply. It cures in the absence of air between close-fitting metal surfaces and fluoresces under UV light.

Where this product is used

• Threaded fasteners where a liquid threadlocker would run or be hard to apply
• Studs, nuts and bolts that need a high strength lock
• Black oxide steel and stainless steel fasteners, the materials Henkel gives torque data for
• Jobs where the product is applied directly from the stick with no mixing

Features

• High strength anaerobic threadlocker
• Self-feeding stick with a wax consistency
• One component, no mixing
• Red, with positive fluorescence under UV light
• Melting point above 65 °C
• 40 N·m breakloose torque on M10 black oxide steel (pre-torqued to 5 N·m, 24 h at 22 °C)
• Removable with localised heat to about 250 °C

Key specifications

Selecting the right option

Breakloose torque is measured on a fastener pre-torqued to 5 N·m, and breakaway torque on an unseated one, so the two figures are not directly comparable.

If a liquid grade suits the job, compare Loctite 263 High Strength Threadlocker or Loctite 271 High Strength Threadlocker 50ml. For a medium strength stick, see Loctite 248 Medium Strength Threadlocker Stick 19g.

Using it

Where hand tools will not work (excessive engagement or diameters over 1 inch), apply localised heat to approximately 250 °C and disassemble while hot.

Cure speed depends on the materials, the gap and the temperature; the cure-speed graphs are in the Henkel data sheet.

Henkel states no operating temperature range for this product. Hot strength is graphed from 0 to 150 °C, and heat ageing at 100, 125 and 150 °C.

Storage and handling

Store unopened in a dry location. Henkel gives 8 °C to 21 °C as the optimal range. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidisers. Not recommended for plastics, particularly thermoplastics. Check compatibility with aqueous washes. Read the safety data sheet before use.

Frequently asked questions

What strength is Loctite 268?

High strength. Henkel describes it as a high strength version of an anaerobic threadlocking material, for fasteners that should stay put.

What is the breakloose torque of Loctite 268?

On M10 black oxide steel nuts and bolts, pre-torqued to 5 N·m and cured 24 hours at 22 °C, it is 40 N·m (ISO 10964). Unseated breakaway torque on the same parts is 10 N·m.

How do I remove Loctite 268?

Where hand tools will not work, apply localised heat to about 250 °C and disassemble while hot.

What temperature can Loctite 268 handle?

The Henkel data sheet states no operating temperature range. It shows hot strength as a graph from 0 to 150 °C and heat ageing at 100, 125 and 150 °C.

How long does Loctite 268 take to cure?

Henkel gives no fixture time in the data sheet; it gives cure-speed graphs and torque figures at set times. It reports at least 8 N·m breakloose on 3/8 x 16 steel after 1 hour at 25 °C.

Does Loctite 268 have any approvals?

The current Henkel data sheet lists no approvals; contact AIMS if you need a certificate for a specific application.
