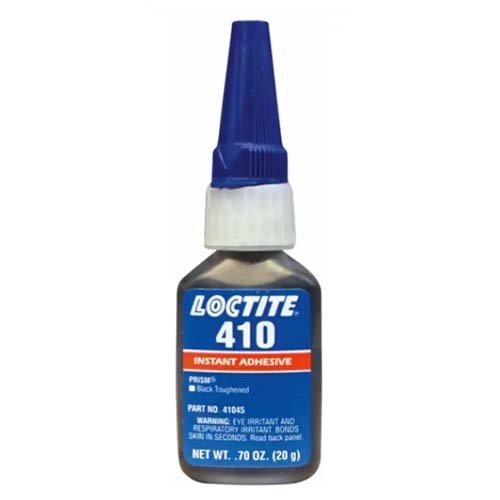

Loctite 410 Black Toughened Instant Adhesive 20g

$28.12

Inc. GST

Available

Loctite 410 is a black, rubber-toughened ethyl cyanoacrylate instant adhesive. It is a one-part, high viscosity liquid that cures with atmospheric moisture and needs no mixing.

Henkel describes it as having increased flexibility and peel strength, along with enhanced resistance to shock. It bonds metals, plastics and rubbers, and it suits thin bond gaps.

Where this product is used

Bonding metals, plastics and rubbers
Rubber (neoprene, nitrile) bonded to metal
Bonding ABS, PVC, polycarbonate and phenolic plastics
Joints where a rubber-toughened bond line with enhanced resistance to shock is wanted

Features

Black liquid; it is a liquid, not a gel
Rubber toughened, with increased flexibility and peel strength
Enhanced resistance to shock
High viscosity: 1,700 to 5,000 mPa·s
One part, no mixing
22 N/mm² lap shear on grit-blasted steel (24 h at 22 °C, ISO 4587)
Glass transition temperature of 120 °C

Key specifications

Specification	Detail
Chemical type	Ethyl cyanoacrylate, rubber toughened
Colour	Black liquid
Components	One part, no mixing
Cure	Humidity (atmospheric moisture)
Viscosity (Brookfield RVT, 25 °C, spindle 3, 20 rpm)	1,700 to 5,000 mPa·s
Specific gravity (25 °C)	1.1
Fixture time (time to 0.1 N/mm² shear, 22 °C, 50% RH)	Degreased steel 60 to 120 s; aluminium 10 to 30 s; neoprene and nitrile 15 to 25 s; ABS 20 to 50 s; PVC 50 to 100 s
Lap shear, grit-blasted steel (ISO 4587, 24 h at 22 °C)	22 N/mm²
Lap shear, etched aluminium (same conditions)	15 N/mm²
Tensile strength, grit-blasted steel (ISO 6922, 24 h at 22 °C)	18.5 N/mm²
Glass transition temperature (ASTM E 228)	120 °C
Full chemical resistance	At least 24 hours
Storage	2 °C to 8 °C, unopened, dry
Technical data sheet	Henkel TDS March-2008 (Reference 1.2)

Selecting the right option

Loctite 410 is the black, high viscosity toughened grade. For a clear to straw-coloured toughened grade, see Loctite 435 Toughened Instant Adhesive 25ml; for a black grade, see Loctite 480 Black Toughened Instant Adhesive 20g.

For a general purpose grade without toughening, see Loctite 401 Instant Adhesive.

Using it

Henkel states the product suits thin bond gaps (0.05 mm). Increasing the bond gap decreases the rate of cure.

Fixture times in the Henkel data sheet are the time to 0.1 N/mm² shear at 22 °C and 50% RH, and vary widely by substrate: degreased steel takes 60 to 120 seconds, aluminium 10 to 30 seconds.

Full chemical and solvent resistance takes at least 24 hours.

Storage and handling

Store unopened, in a dry place, at 2 °C to 8 °C. Storage outside this range can affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidising materials. The Henkel data sheet states no operating temperature range; the hot strength graph runs from 0 °C to 120 °C. Read the safety data sheet before use.

Frequently asked questions

What is the fixture time of Loctite 410?

At 22 °C and 50% RH, time to 0.1 N/mm² shear is 10 to 30 s on aluminium, 15 to 25 s on neoprene and nitrile rubber, 20 to 50 s on ABS and 60 to 120 s on degreased steel.

How strong is Loctite 410?

After 24 hours at 22 °C, lap shear is 22 N/mm² on grit-blasted steel and 15 N/mm² on etched aluminium. Tensile strength on grit-blasted steel is 18.5 N/mm².

Is Loctite 410 a gel?

No. It is a black, high viscosity (1,700 to 5,000 mPa·s), rubber-toughened ethyl cyanoacrylate liquid.

What bond gap suits Loctite 410?

Henkel says it suits thin bond gaps (0.05 mm). Increasing the gap decreases the rate of cure, and the data sheet gives no gap-fill rating.

How strong is Loctite 410 after heat?

Steel lap shear is at least 19.3 N/mm² when cured 24 h at 22 °C plus 24 h at 121 °C and tested at 22 °C.

How should Loctite 410 be stored?

Unopened and dry at 2 °C to 8 °C. Storage outside this range can affect its properties.
