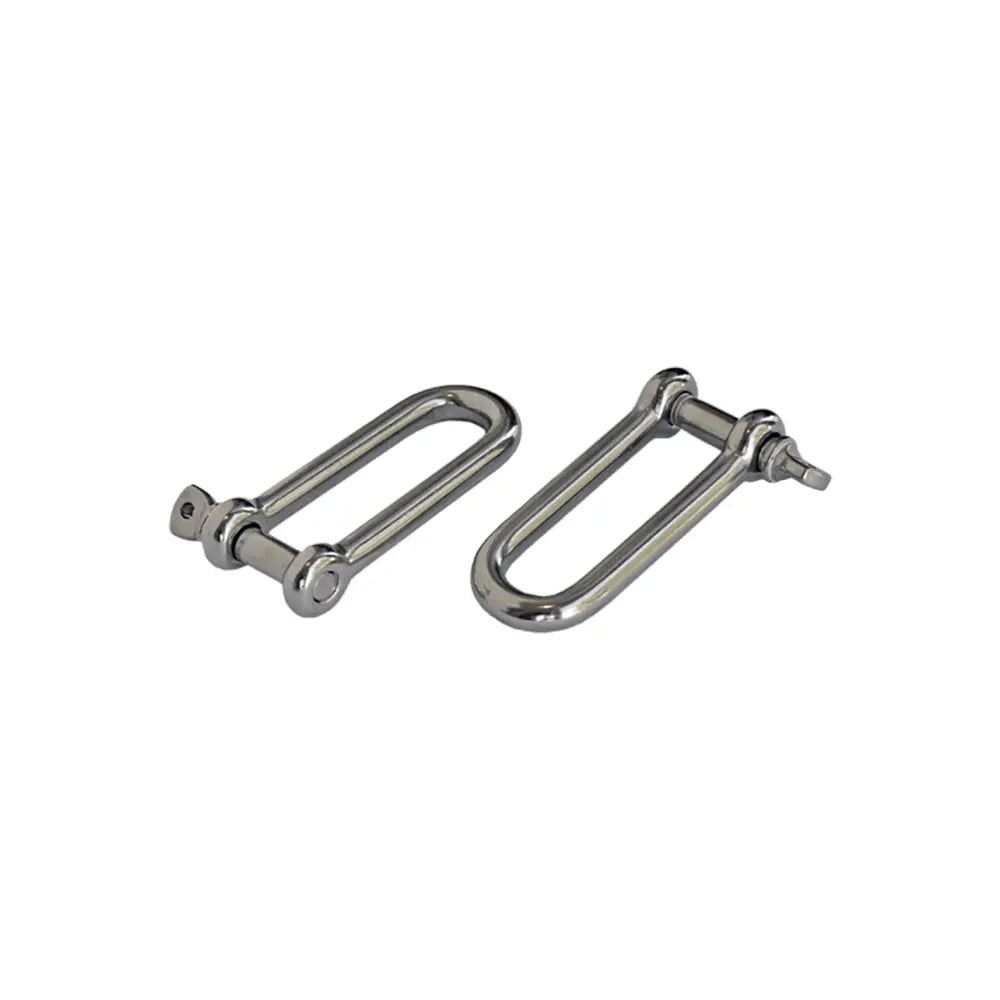

M10 Long Captive Pin D Shackle, 316 Stainless Steel - DLCA4M10

Made in 316 (A4) stainless steel, the Long Captive Pin D Shackle is a long-bodied D shackle whose pin is held captive, so the pin cannot be lost when the shackle is opened.

The A4 (316) grade is stainless steel with added molybdenum, which helps it hold up where salt, pool chemicals or washdown chemicals are present. It is the more corrosion-resistant of the two common stainless grades, at a higher cost than 304.

You can choose from 6 variants, covering sizes M4 to M12. Pack quantities depend on size: packs of 2 to 10.

In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Shade sails, awnings and tensioned structures
• Food and beverage processing equipment
• Marine rigging, boat and yacht fittings
• Boat, jetty and waterfront structures
• Balustrade and wire fencing

Features

• Choice of 6 sizes, M4 to M12
• Pin stays attached to the shackle
• Long body gives extra reach
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Pack quantities to suit trade and bulk buying: packs of 2 to 10

Key specifications

Selecting the right option

Pick the shackle by the size shown on the variant and the fittings it will connect.

Important

This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
