Mackay JT adjustable foot, 25 - 40kg
Available

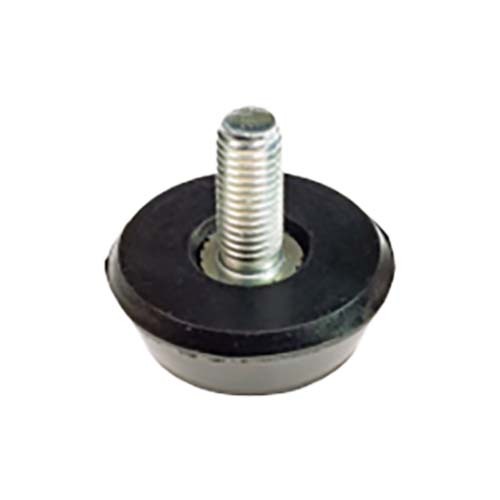

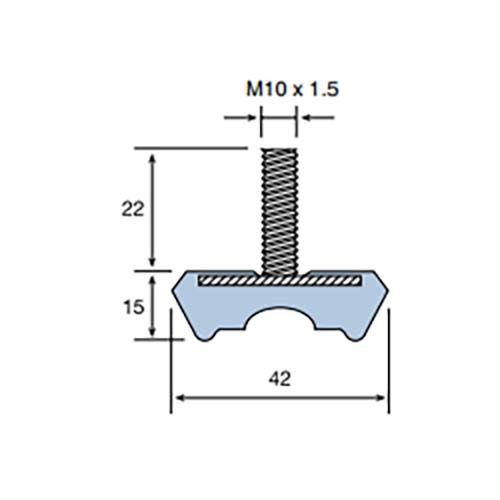

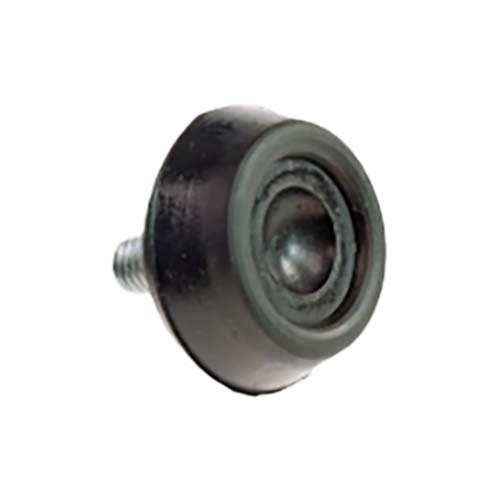

Mackay Adjustable Rubber Foot JT is a threaded adjustable foot, JT type, in two hardnesses. Both part numbers have an M10 x 1.5 stud, a 42mm diameter rubber pad and a weight of 53g. M144001 is hardness 50 for a load of 25 to 40kg and M144002 is hardness 75 for a load of 75 to 100kg. Stud length is 22mm and pad height is 15mm. Choose it on the load range and hardness alone.
Where this product is used
- Fitted to equipment as an adjustable isolating foot
- Adjusting the height of the foot on its threaded stud
Features
- An adjustable feet isolator, JT type
- Threaded M10 x 1.5 stud
- Rubber pad 42mm in diameter, in hardness 50 or 75
- Mackay part numbers: M144001, M144002
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Adjustable Levelling Foot |
| Mackay part numbers | M144001, M144002 |
| Hardness | 50 (M144001) and 75 (M144002) |
| Load | 25 to 40kg (M144001) and 75 to 100kg (M144002) |
| Thread | M10 x 1.5 |
| Pad diameter | 42mm |
| Stud length | 22mm |
| Pad height | 15mm |
| Weight | 53g each |
| Mackay part number | M144001, M144002 |
| Load (kg) | 25-40, 75-100 |
| Weight (g) | 53 |
Choosing the right option
Neither range covers 40 to 75kg. Check the M10 x 1.5 thread suits your fixing and the 42mm pad suits the space. For lighter loads use the SX type, and for heavier loads the SV type or Surefoot. All properties are nominal.
Related Mackay products: Mackay Adjustable Rubber Foot SX - 10 to 25kg, Mackay Adjustable Rubber Foot SV Type, Mackay Surefoot Levelling Isolator.
| Option | SKU |
|---|---|
| 25 - 40kg | A0166425 |
| 75 - 100kg | A0166426 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Adjustable Rubber Foot JT Type: 25 - 40 kg
SKU: A0166425 | Model: M144001
Mackay M144001: Adjustable Rubber Foot JT Type, hardness 50, 25 to 40kg load, M10 x 1.5 stud, 53g. Pad diameter: 42mm.
