Mackay SV adjustable foot, 80kg

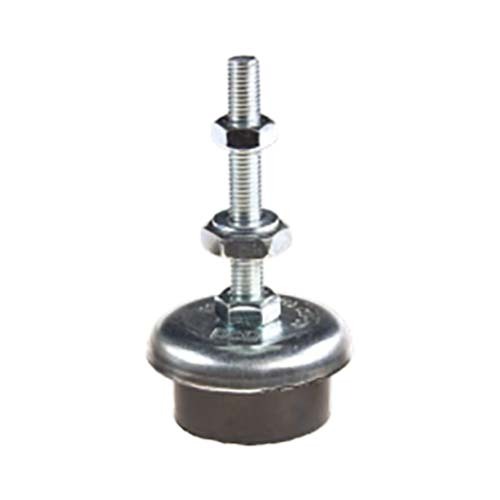

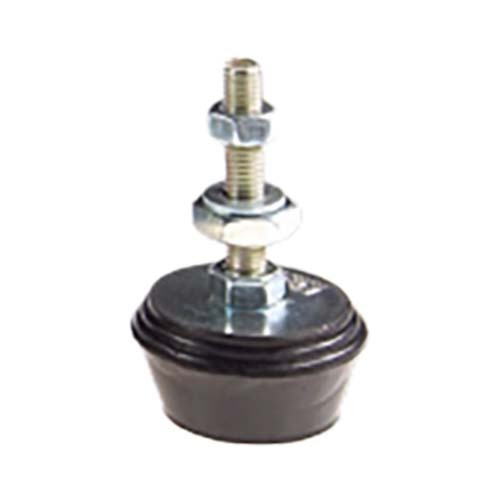

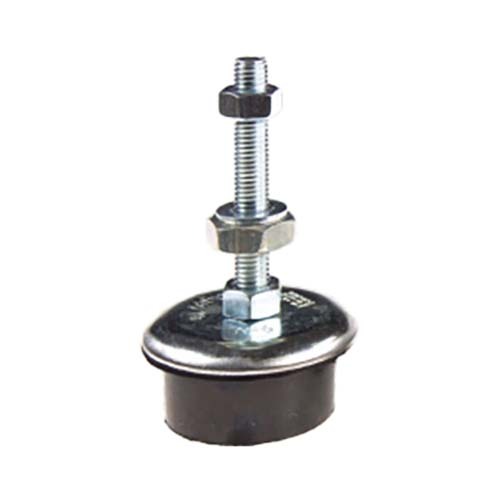

Mackay Adjustable Rubber Foot SV is one of three adjustable feet isolators (SV, JT and SX types). It has the highest loads of the three, with a rubber foot, a metal top and a threaded spindle in three sizes. M143001 has an M8 x 1.25 thread for loads of 20 to 80kg, M143002 an M10 x 1.5 thread for 60 to 120kg, and M143003 an M12 x 1.75 thread for 90 to 160kg.

The foot diameter is 40mm, 60mm and 70mm, the overall height 48mm, 81mm and 89mm, and the weights 89g, 235g and 350g. Each size has a minimum and a maximum load, so the ranges overlap: use the size whose range covers the load on each foot. No application text for the SV type.

Where this product is used

• Fitted to equipment as an adjustable isolating foot
• Adjusting the height of the foot on its threaded spindle

Features

• An adjustable feet isolator, SV type
• Threaded spindle in three sizes: M8 x 1.25, M10 x 1.5 and M12 x 1.75
• It has a minimum and a maximum load for each size
• Mackay part numbers: M143001, M143002, M143003

Key specifications

Choosing the right option

Check the thread (M8, M10 or M12) and the overall height D against your machine. For lighter loads use the SX or JT types, and for heavier loads see the Surefoot. All properties are nominal.

Related Mackay products: Mackay Adjustable Rubber Foot JT Type, Mackay Adjustable Rubber Foot SX - 10 to 25kg, Mackay Surefoot Levelling Isolator.
