Mackay M145001 Adjustable Rubber Foot SX, hardness 50, 10 to 25 kg

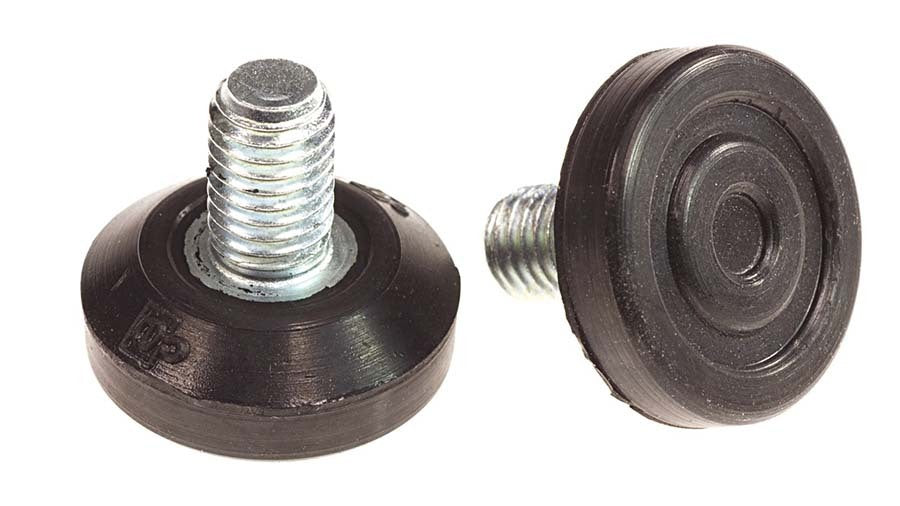

The Mackay Adjustable Rubber Foot SX is one of three adjustable feet Mackay lists together under the heading Adjustable Feet Isolator (SV, JT and SX types) (manufacturer-stated). It is a threaded foot with an M10 x 1.5 stud and a 30 mm diameter rubber pad, hardness 50, for a load of 10 to 25 kg, and at 25 g it is the lightest of the three.

There is one part number, M145001. The Mackay drawing shows a stud length of 14 mm and a pad height of 10 mm. Mackay gives no application text for the SX type, so choose it on the 10 to 25 kg load range and the hardness.

Where this product is used

• Fitted to equipment as an adjustable isolating foot, which is how Mackay lists it (Adjustable Feet Isolator) (manufacturer-stated)
• Adjusting the height of the foot on its threaded stud (manufacturer-stated)

Features

• Listed by Mackay as an adjustable feet isolator, SX type (manufacturer-stated)
• Threaded M10 x 1.5 stud (manufacturer-stated)
• Rubber pad 30 mm in diameter, hardness 50 (manufacturer-stated)

Common specifications

Key specifications

Part number, hardness, load and weight are from the Mackay table. The Mackay table does not print a unit for hardness. The M10 x 1.5 thread, stud length, pad height and pad diameter are read from the Mackay drawing, in millimetres. Mackay prints all properties as nominal and asks you to contact them for technical advice.

Selecting the right option

Choose by load: this foot is listed for 10 to 25 kg, so divide the machine weight by the number of feet and check the result falls inside that range. Check the M10 x 1.5 thread suits your fixing and that the 30 mm pad suits the space. If your load is higher, the JT and SV types and the Surefoot cover more weight. Mackay prints all properties as nominal and asks you to contact them for technical advice.

Related products

Other Mackay adjustable feet: Mackay Adjustable Rubber Foot JT Type and Mackay Adjustable Rubber Foot SV Type. For heavier loads: Mackay Surefoot Levelling Isolator.
