Mackay Minifix machine foot, Grey

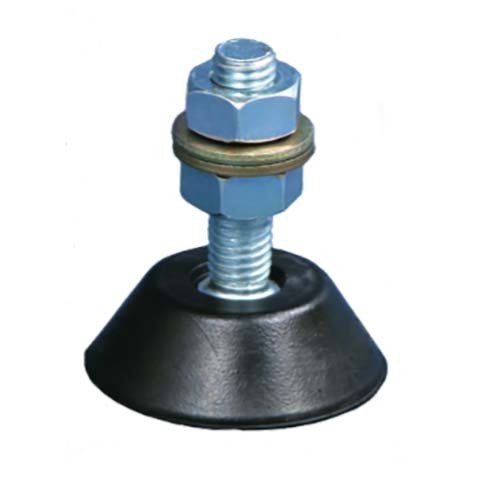

MINIFIX is a machine support made of a rubber foot with a grooved anti-slip base and a threaded stud, which lets equipment be adjusted accurately. Mackay supplies it complete with locking nuts and washers, in two rubber hardnesses.

Two variants: M53080550 is grey SBR, Duro 50, with a load rating of 30 to 40kg; M53080580 is black nitrile, Duro 80, with a load rating of 80 to 100kg. Both have a 46mm diameter base, an M10 stud and weigh 0.1kg. SBR has poor resistance to fuel, oil and grease and nitrile as good.

Where this product is used

• Electronic cabinets and measuring equipment
• Laboratory equipment and domestic appliances
• Agricultural equipment and electrical installations
• Packing machinery, food processing machines, surveying equipment and factory equipment

Features

• Rubber foot with a grooved anti-slip base and a threaded stud for accurate adjustment
• Supplied complete with locking nuts and washers
• No floor bolting required
• Controls noise, shock and vibration
• Fast, simplified and precise levelling of all machines, and compensates for uneven floors
• Saves on installation and relocation

Key specifications

Choosing the right option

Choose by load rating first: M53080550 (Duro 50) has a load rating of 30 to 40kg and M53080580 (Duro 80) 80 to 100kg. Then choose by environment: Mackay rates the grey SBR as poor and the black nitrile as good for resistance to fuel, oil and grease. See its Surefoot machine levelling isolators for larger load ratings; they are linked below.
