Mackay Multicushion Kit - Small 55 Duro

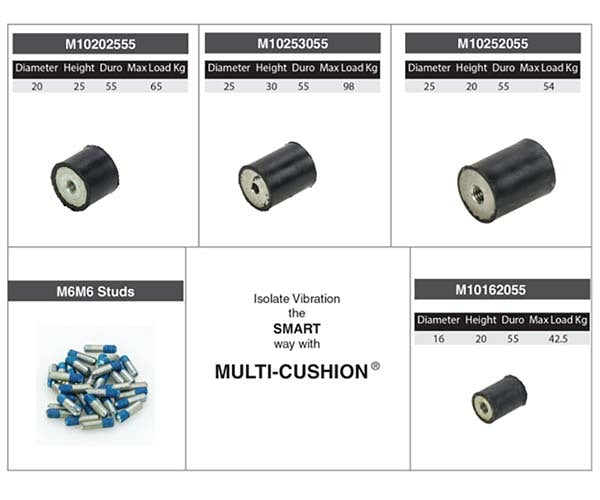

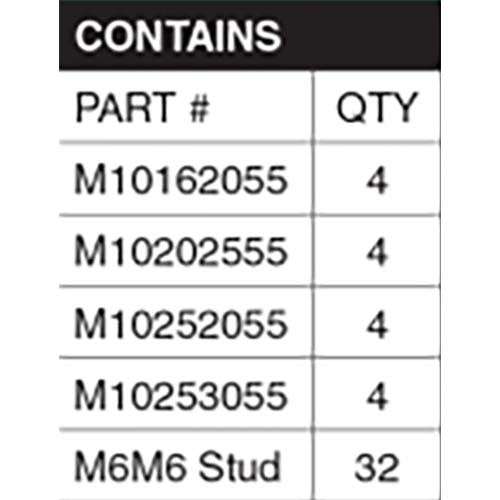

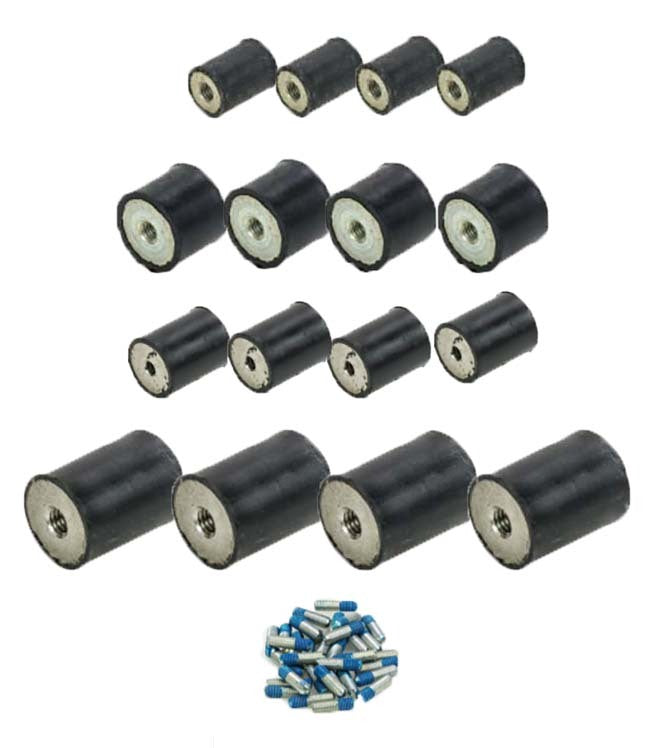

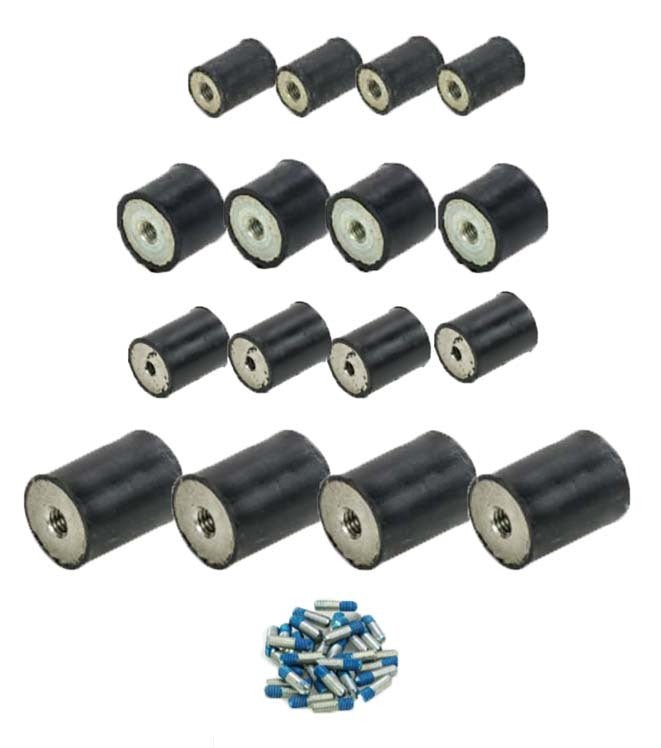

Mackay small Multicushion kit, part number M10KITS55, contains 16 Multicushion isolators and 32 studs: four each of M10162055 (16 x 20mm), M10202555 (20 x 25mm), M10252055 (25 x 20mm) and M10253055 (25 x 30mm), all Duro 55, with 32 M6M6 studs.

Multicushion isolators are made from high-grade natural rubber with passivated metal surfaces; the studs are easily inserted with a screwdriver and the microBOND fastener adhesive system provides secure thread locking. All four cushions have an M6 thread.

Where this product is used

• Having four each of the cushion part numbers on hand, with the studs to fit them
• Mounting equipment with the rubber loaded in compression, in shear or in a combination of the two

Features

• Cushions are made from high-grade natural rubber
• All metal surfaces are passivated
• Studs are easily inserted with a screwdriver
• The microBOND fastener adhesive system provides secure thread locking
• All cushions in the kit are Duro 55

Key specifications

Choosing the right option

Use this kit when your equipment needs a range of small cushion sizes in one pack. For larger cushions, see the medium kit linked below, or choose individual cushions from the Multicushion isolator list. Apply the load to the full face of a cushion and not just the thread.

Related Mackay products: Mackay Multicushion Kit - Medium 55 Duro, Mackay Multicushion Kit - Stock Module (Small & Medium) 55 Duro, Mackay Multicushion Isolator, Mackay Stud for Multicushion Isolator.
