Mackay Multicushion Kit - Stock Module (Small & Medium) 55 Duro

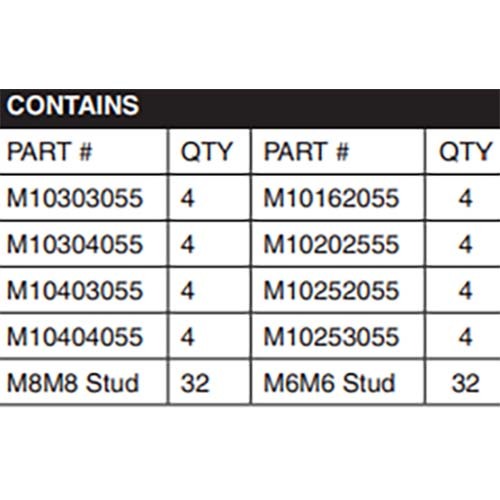

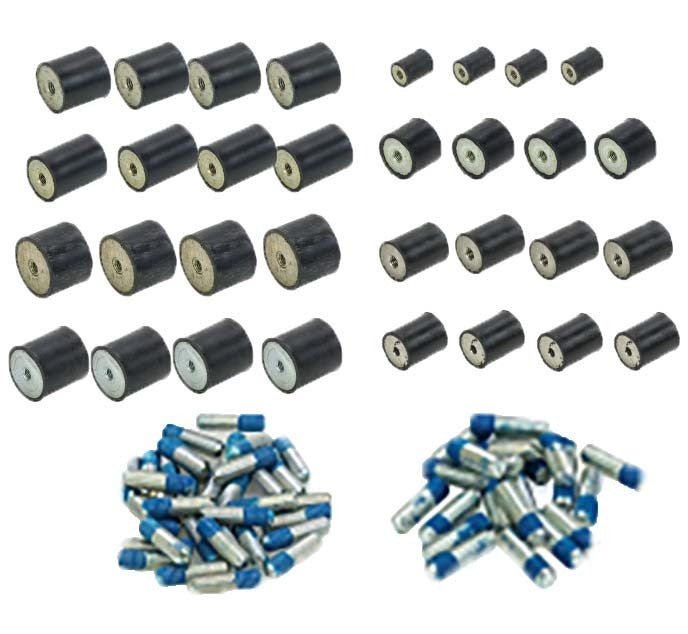

Mackay Multicushion kit Stock Module, part number M10KITMER1, combines the small and medium kits in one: 32 Multicushion isolators, four each of eight part numbers from 16 x 20mm to 40 x 40mm, all Duro 55, with 32 M6M6 studs and 32 M8M8 studs.

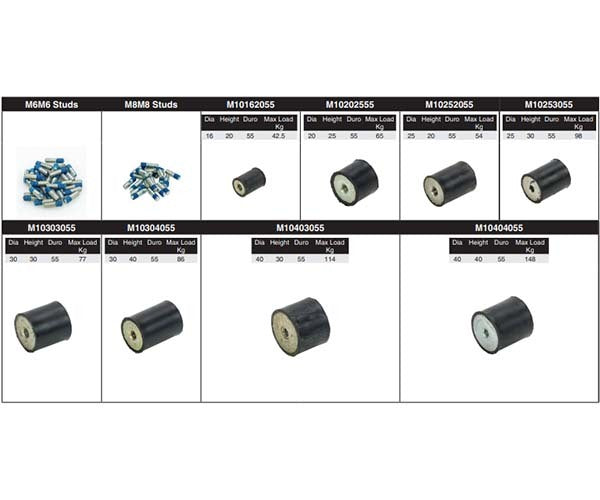

Multicushion isolators are made from high-grade natural rubber with passivated metal surfaces; the studs are easily inserted with a screwdriver and the microBOND fastener adhesive system provides secure thread locking. The four smaller cushions (M10162055, M10202555, M10252055, M10253055) have an M6 thread and the four larger ones (M10303055, M10304055, M10403055, M10404055) have an M8 thread. The kit lists 32 M6M6 studs and 32 M8M8 studs.

Where this product is used

• Having four each of the cushion part numbers on hand, with the studs to fit them
• Mounting equipment with the rubber loaded in compression, in shear or in a combination of the two

Features

• Cushions are made from high-grade natural rubber
• All metal surfaces are passivated
• Studs are easily inserted with a screwdriver
• The microBOND fastener adhesive system provides secure thread locking
• All cushions in the kit are Duro 55

Key specifications

Choosing the right option

Use the Stock Module when you want the whole small and medium range on hand. Use the M6M6 studs with the M6 cushions and the M8M8 studs with the M8 cushions. If you only need one size range, the small and medium kits are linked below. Apply the load to the full face of a cushion and not just the thread.
