Mackay Recessed Flange Steel Washer M181550C
Available
Mackay M181550C is a Type A steel washer. It is the top (overload) and bottom (rebound) washer for the M801550 recessed flange isolators (the 172 x 150 x 100mm range, M80155045 to M80155070); those isolators are ordered without washers.
It has a 139mm outer diameter, 25mm hole, 10mm thickness and a weight of 1.15kg. Overload and rebound washers (top and bottom) are necessary to limit maximum movement in the event of shock loading.
Where this product is used
- Fitted as the overload (top) and rebound (bottom) washer on the M801550 recessed flange isolators, without washers
- Limiting movement of the suspended equipment under shock loads
Features
- Type A steel washer
- 139mm outer diameter with a 25mm hole, 10mm thick
- Weight 1.15kg
- Washer type: Type A, steel washer
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Specialty Washer |
| Washer type | Type A, steel washer |

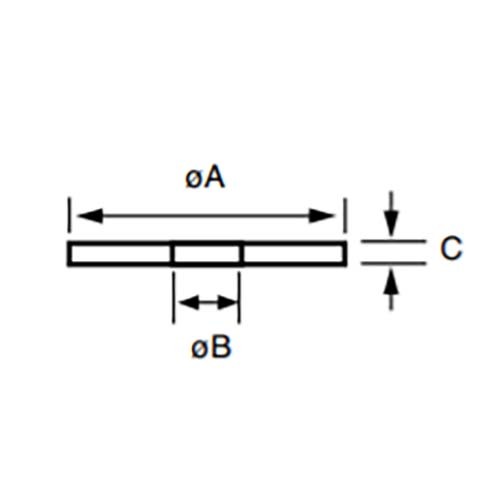

| Outer diameter (A) | 139mm |
| Hole diameter (B) | 25mm |
| Thickness (C) | 10mm |
| Weight | 1.15kg |
| Mackay part number | M181550C |
| Type | A |
| A (mm) | 139 |
| B (mm) | 25 |
| C (mm) | 10 |
| Weight (kg) | 1.15 |
Choosing the right option
Check the 25mm hole against the centre bolt you are using and that there is clearance between the rebound washer and the isolator under static load.
Related Mackay products: Mackay Recessed Flange Isolator 172 x 150 x 100mm.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Recessed Flange Steel Washer M181550C
SKU: A0166994 | Model: M181550C
Mackay A0166994: type A steel washer. Mackay part number: M181550C. Washer type: Type A, steel washer. Outer diameter (A): 139mm.
