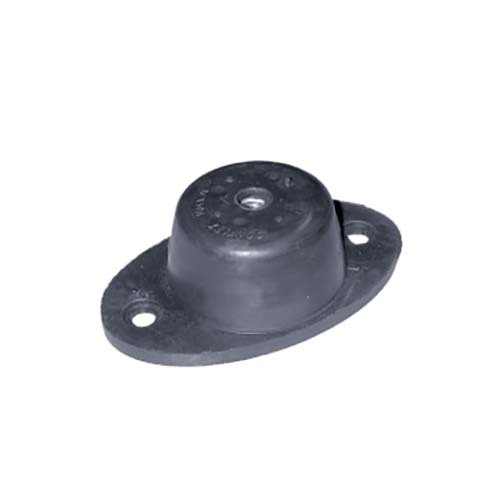

Mackay Stainless safety interlocked Conflex isolator
Available
Mackay stainless steel Conflex safety interlocked isolator is a Conflex-style two-hole foot isolator with internal safety interlocks for failsafe protection. It is made from a high-grade oil-resisting rubber compound and type 304 stainless steel for marine and corrosive applications.
Available as five variants, M1113SN30 to M1113SN70, with Mackay maximum loads of 70, 130, 210, 270 and 330kg at a maximum deflection of 2.5mm. Each part has a colour code: Green, Red, Yellow, White or Silver. All five are 100 x 60 x 28.5mm with an M8 thread. It has similar dimensions to the M1112 isolators.
Where this product is used
- Marine and corrosive applications
- Machinery that needs failsafe protection from internal safety interlocks
- Mounting in the style of the M1112 Conflex isolators with internal interlocks added
Features
- Internal safety interlocks for failsafe protection
- High-grade oil-resisting rubber compound
- Type 304 stainless steel for marine and corrosive applications
- Dimensions similar to the M1112 series Conflex isolators
- Colour code on each part number: Green, Red, Yellow, White or Silver

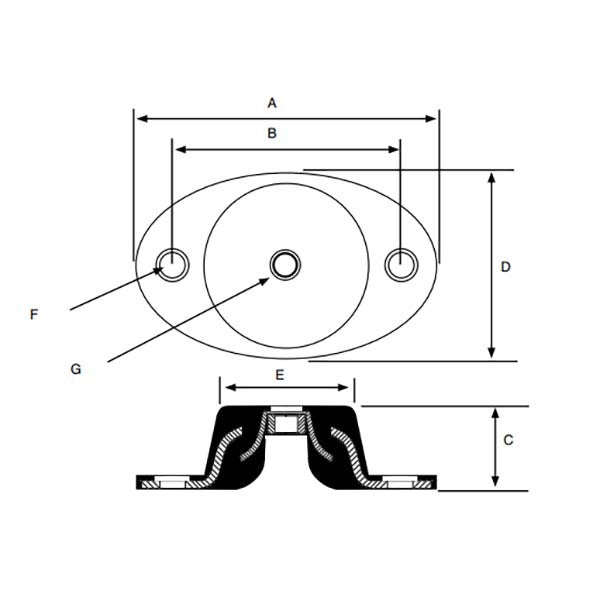

Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Foot Vibration Isolator |
| Length (A) | 100mm |
| Hole spacing (B) | 76mm |
| Height (C) | 28.5mm |
| Width (D) | 60mm |
| Head diameter (E) | 46mm |
| Mounting hole diameter (F) | 8.5mm |
| Thread (G) | M8 |
| Max load range | 70 to 330kg |
| Max deflection | 2.5mm |
| Weight | 0.2kg each |
| Mackay part number | M1113SN30, M1113SN40, M1113SN50, M1113SN60, M1113SN70 |
| Max load (kg) | 70 to 330 |
| Max deflection (mm) | 2.5 |
| Colour code | Green, Red, Yellow, White, Silver |
Choosing the right option
Check hole spacing (76mm), hole diameter (8.5mm) and the 28.5mm height against your frame. For marine or safety-critical use.
Related Mackay products: Mackay Conflex Isolator, Mackay Conflex Isolator Medium HD 100 x 60 x 48mm, Mackay Conflex Isolator Large 140 x 85 x 44mm, Mackay Conflex Isolator Neoprene Rubber.
| Option | SKU |
|---|---|
| Default Title | A0166317 |
| Red | A0166318 |
| Silver | A0166321 |
| White | A0166320 |
| Yellow | A0166319 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Stainless Steel Conflex Safety Isolator
SKU: A0166317 | Model: M1113SN30
Mackay M1113SN30: stainless steel Conflex safety isolator, 70kg max load, 2.5mm max deflection, Green colour code, M8 thread. Length (A): 100mm.
