Macnaught Oil Dispensing System 3:1 - OILMASTER Pump - Metered Gun
Available

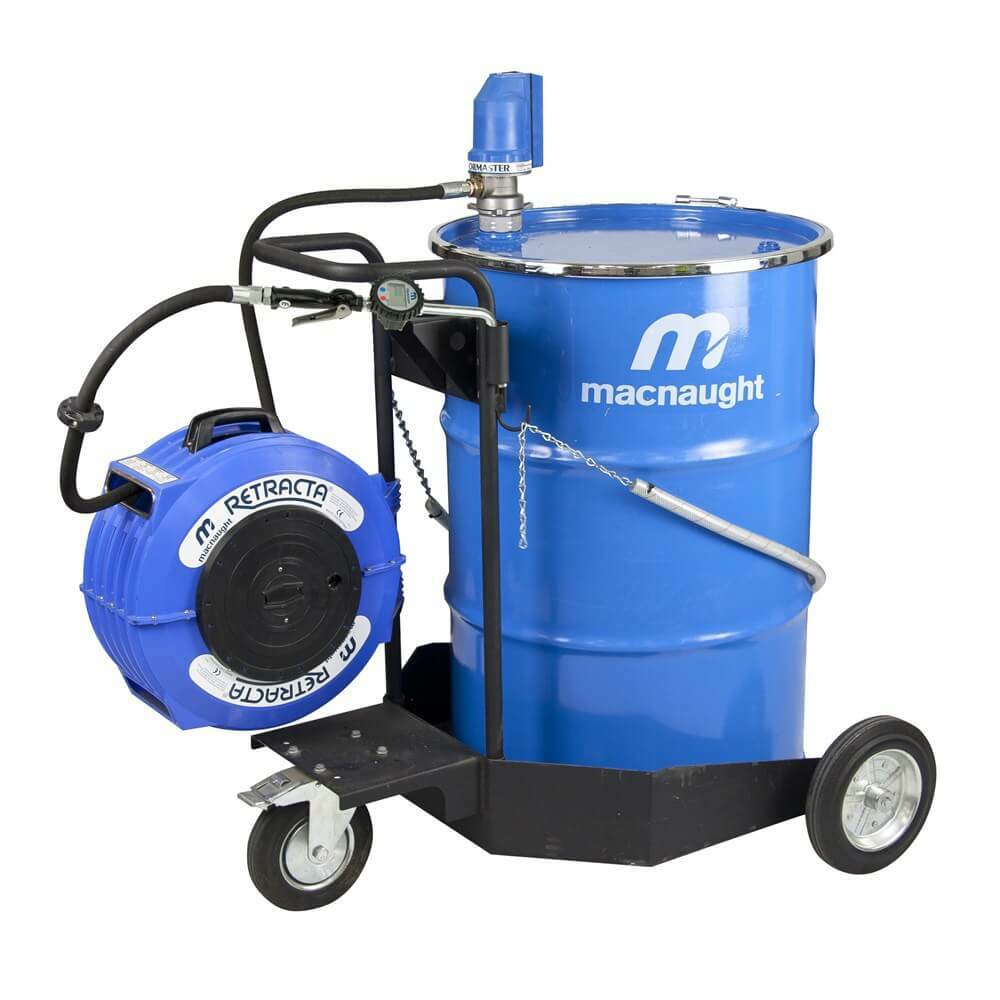

The Macnaught OS50GE-01 is a ready-to-use oil dispensing system on a drum trolley, for workshops and dealerships that dispense from a 205 L drum. The TR205 trolley carries the drum. The pump goes into the drum and the hose reel and gun take the oil to the job. It uses a 3:1 OilMaster air-operated pump with a metered gun.
Pump ratio in plain words: a 3:1 pump puts out oil at 3 times the air pressure you feed it. OilMaster is the T-Series pump range, which is a proven, reliable air motor design. The T312T-01 pump has a free flow of up to 13 L/min on its own. The R-Series version of this system is the OS100GE-01. That pump has a higher free flow, up to 23 L/min. The gun is the HG20R-012E-01 metered oil control gun. Its electronic meter shows a batch total you can reset and a running total that cannot be reset, with accuracy up to +/- 0.5% of reading. It has a rigid extension, an automatic non-drip nozzle and a locking trigger, and it is rated to 6,900 kPa (1,000 psi). If you do not need to measure what you dispense, choose the OS50G-01 unmetered version. This system is for 205 L drums. For an IBC, look at the 5:1 IBC systems.
Where this product is used
- Dispensing oil from a 205 L drum in a workshop or dealership
- Topping up vehicles and machines from a hose reel
- Jobs where you need to read how much oil you dispense
Features
- Drum trolley system for 205 L drums, for workshops or dealerships
- 3:1 OilMaster air-operated pump (T312T-01), free flow up to 13 L/min
- Pump rated for oils and coolants up to SAE140
- Metered HG20R-012E-01 gun with a resettable batch total and a running total, accuracy up to +/- 0.5% of reading
- Retracta spring-rewind hose reel with 15m of 1/2" oil hose, hose rated to 1000 psi
- Gun rated to 6,900 kPa (1,000 psi) and suits oils up to SAE140
- Do not exceed 10 bar air pressure, use the safety chain and wheel brake, and release line pressure before maintenance
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | OS50GE-01 |
| Part number | OS50GE-01 |
| Type | Air-operated oil dispensing system |
| Pump range | OILMASTER / T-SERIES |
| Pump | T312T-01 |
| Pump ratio | 3:1 |
| Mounting | TR205 drum trolley, for 205 L drums |
| Pump free flow (pump on its own) | Up to 13 L/min |
| Hose reel | Retracta OMP415B-01 reel, 15m x 1/2" hose, 1000 psi |
| Gun | HG20R-012E-01 metered |
| Meter accuracy | Up to +/- 0.5% of reading |
| Gun rating | Up to 6,900 kPa (1,000 psi) |
| Maximum air pressure | 10 bar (1000 kPa, 145 PSI) |
Supplied with
- TR205 drum trolley, for 205 L drums
- T312T-01 3:1 OilMaster air-operated oil pump
- Retracta OMP415B-01 oil hose reel with 15m x 1/2" hose
- HG20R-012E-01 metered oil control gun
- All necessary fittings and hoses
Related Macnaught products
- Macnaught Oil Dispensing System 5:1 - OILMASTER Pump - Metered Gun: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught Oil Dispensing System 3:1 - OILMASTER Pump - Metered Gun
SKU: A0082818 | Model: OS50GE-01
The OS50GE-01 is a 3:1 OilMaster oil dispensing system, on a TR205 drum trolley for 205 L drums. It has a T312T-01 pump, a 15m x 1/2" hose reel and a metered HG20R-012E-01 gun.
