Macnaught Oil Dispensing System 5:1 - OILMASTER Pump - Metered Gun
Available

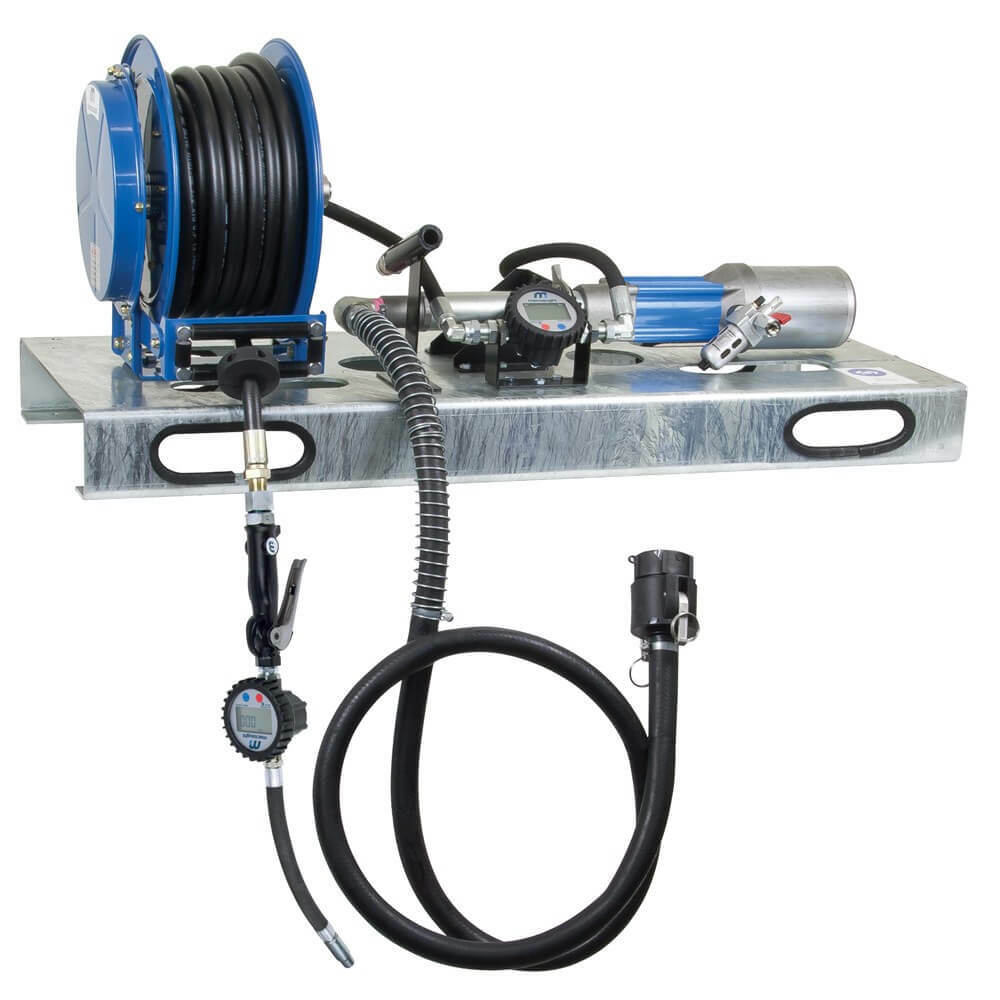

The Macnaught OS900GE-01 is an oil dispensing system for IBCs. Macnaught designed it to be top-mounted on an IBC. It comes with a solid galvanised base frame, a heavy-duty twin-pedestal hose reel with 15m of 1/2" hose, and a gun and holster. It uses a 5:1 OilMaster air-operated pump with a metered gun.
Pump ratio in plain words: a 5:1 pump puts out oil at 5 times the air pressure you feed it. OilMaster is the T-Series pump range, which is a proven, reliable air motor design. The gun is the HG20R-012E-01 metered oil control gun. Its electronic meter shows a batch total you can reset and a running total that cannot be reset, with accuracy up to +/- 0.5% of reading. It has a rigid extension, an automatic non-drip nozzle and a locking trigger, and it is rated to 6,900 kPa (1,000 psi). If you do not need to measure what you dispense, choose the OS900G-01 unmetered version. For a 205 L drum rather than an IBC, the trolley systems are the better fit.
Where this product is used
- Dispensing oil from an IBC in a workshop or depot
- Topping up vehicles and machines from a hose reel
- Jobs where you need to read how much oil you dispense
Features
- Designed to be top-mounted on an IBC, with a solid galvanised base frame
- 5:1 OilMaster air-operated pump (T512-01)
- Metered HG20R-012E-01 gun with a resettable batch total and a running total, accuracy up to +/- 0.5% of reading
- Heavy-duty twin-pedestal hose reel with 15m of 1/2" hose
- Gun rated to 6,900 kPa (1,000 psi) and suits oils up to SAE140
- Never point the nozzle at anyone and release line pressure before maintenance
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | OS900GE-01 |
| Part number | OS900GE-01 |
| Type | Air-operated oil dispensing system |
| Pump range | OILMASTER / T-SERIES |
| Pump | T512-01 |
| Pump ratio | 5:1 |
| Mounting | Top-mounted on an IBC, galvanised base frame |
| Hose reel | Twin-pedestal reel, 15m x 1/2" hose |
| Gun | HG20R-012E-01 metered |
| Meter accuracy | Up to +/- 0.5% of reading |
| Gun rating | Up to 6,900 kPa (1,000 psi) |
Supplied with
- Solid galvanised base frame
- T512-01 5:1 OilMaster air-operated oil pump
- Heavy-duty twin-pedestal oil reel with 15m x 1/2" hose
- HG20R-012E-01 metered oil control gun and holster
- All connecting fittings, hoses, breather and couplers
Related Macnaught products
- Macnaught Oil Dispensing System 3:1 - OILMASTER Pump - Metered Gun: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught Oil Dispensing System 5:1 - OILMASTER Pump - Metered Gun
SKU: A0082820 | Model: OS900GE-01
The OS900GE-01 is a 5:1 OilMaster oil dispensing system, top-mounted on an IBC. It has a T512-01 pump, a 15m x 1/2" hose reel and a metered HG20R-012E-01 gun.
