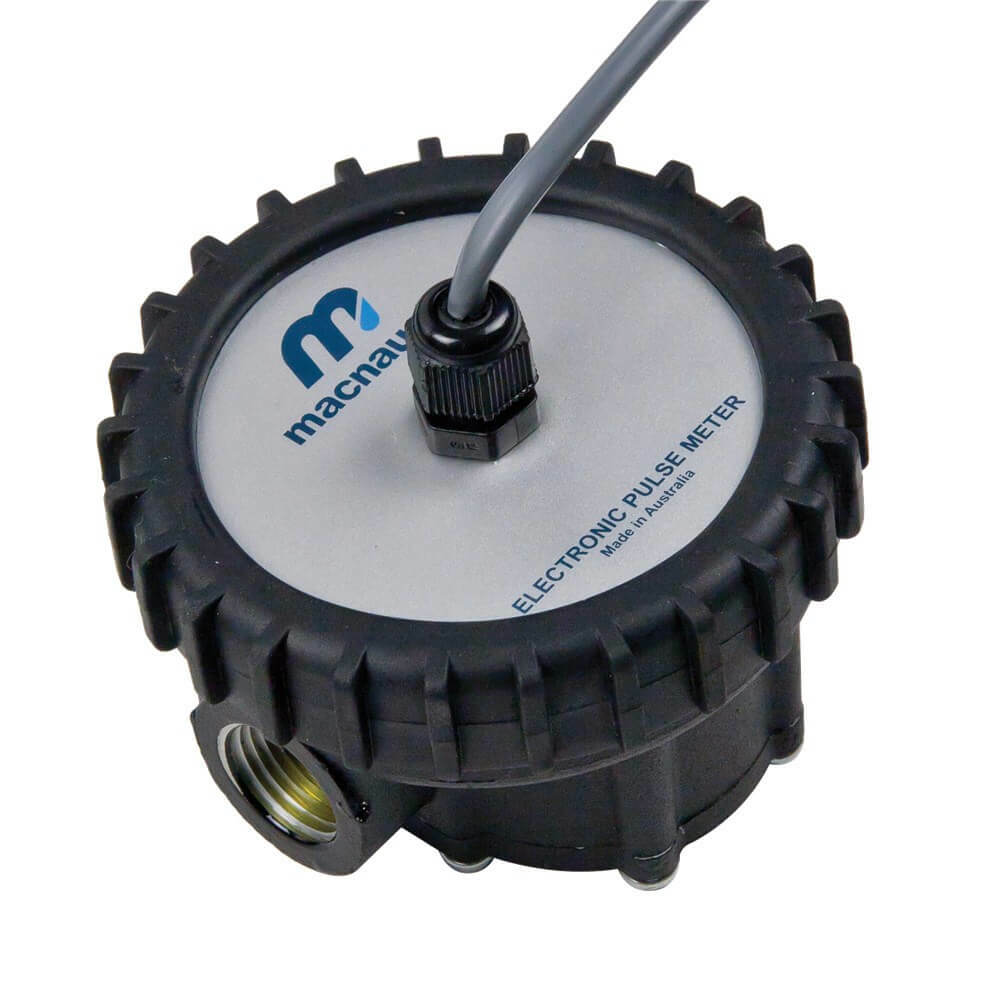

Macnaught Pulse Oil Meter - 1/2" IM012P-01
Available
The Macnaught IM012P-01 is an in-line oil meter with pulse output only. It has no display. It sends a pulse signal for every small amount of oil that passes, and other equipment counts those pulses. It is an in-line oval gear meter with pulse output only, designed to measure lubricating oils, and includes a 1m fly lead for connecting it to other devices. An oval gear meter works by the fluid turning two oval gears, and the register counts the turns.
It has 1/2" BSP(F) inlet and outlet ports and a flow range of 1 to 30 L/min. Accuracy is around +/- 0.5% of reading and the maximum pressure is 6,900 kPa (1,000 psi). It suits oils up to SAE 140. Before use, confirm the fluid is compatible with the meter. Choose a pulse meter when the counting is done by a separate system. Choose the electronic meter (IM012E-01) if you want a display on the meter itself. The IM019P-01 is the 3/4" pulse version for higher flows.
Where this product is used
- Feeding oil volume to a separate counting or recording system
- In-line oil metering where no display is needed on the meter
- Oils up to SAE 140
Features
- In-line oval gear meter with pulse output only, no display
- 1m fly lead included for connecting to other devices
- Flow range 1 to 30 L/min
- Accuracy around +/- 0.5% of reading
- Maximum pressure 6,900 kPa (1,000 psi)
- 1/2" BSP(F) inlet and outlet ports
- Suitable for oils up to SAE 140
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | IM012P-01 |
| Part number | IM012P-01 |
| Type | In-line oval gear meter, pulse output only |
| Display | None |
| Fly lead | 1m, included |
| Flow range | 1 to 30 L/min |
| Accuracy | Around +/- 0.5% of reading |
| Maximum pressure | 6,900 kPa (1,000 psi) |
| Inlet and outlet | 1/2" BSP(F) ports |
| Suitable fluids | Oils up to SAE 140 |
| Pulses per litre | 112 |
| Reed switch ratings | 30 VDC, 0.5 A, up to 10W |
| Maximum viscosity | 1000 cP |
| Operating temperature | -14 to 55 deg C |
| Wetted parts | Aluminium, acetal (Delrin), nitrile rubber |
Supplied with
- 1/2" pulse oil meter with 1m fly lead
- Not included: display, counting equipment, hose or pump
Related Macnaught products
- Macnaught Pulse Oil Meter - 3/4" IM019P-01: Other size or version
