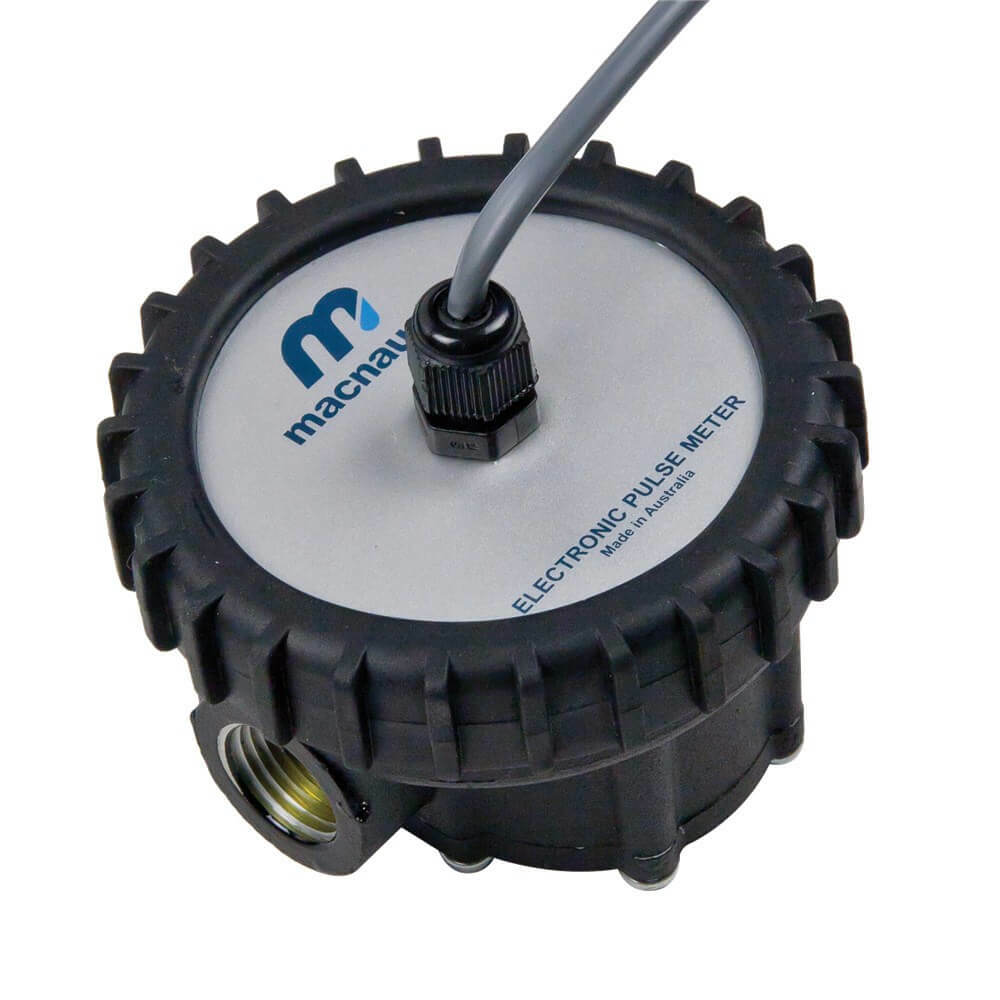

Macnaught Pulse Oil Meter - 3/4" IM019P-01

The Macnaught IM019P-01 is an in-line oil meter with pulse output only. It has no display. It sends a pulse signal for every small amount of oil that passes, and other equipment counts those pulses. It is an in-line oval gear meter with pulse output only, designed to measure lubricating oils, and includes a 1m fly lead for connecting it to other devices. An oval gear meter works by the fluid turning two oval gears, and the register counts the turns.

It has 3/4" BSP(F) inlet and outlet ports and a flow range of 3 to 80 L/min. Accuracy is around +/- 0.5% of reading and the maximum pressure is 10,350 kPa (1,500 psi). It suits oils up to SAE 140. Before use, confirm the fluid is compatible with the meter. Choose a pulse meter when the counting is done by a separate system. Choose the electronic meter (IM019E-01) if you want a display on the meter itself. The IM012P-01 is the 1/2" pulse version for lower flows.

Where this product is used

• Feeding oil volume to a separate counting or recording system
• In-line oil metering where no display is needed on the meter
• Oils up to SAE 140

Features

• In-line oval gear meter with pulse output only, no display
• 1m fly lead included for connecting to other devices
• Flow range 3 to 80 L/min
• Accuracy around +/- 0.5% of reading
• Maximum pressure 10,350 kPa (1,500 psi)
• 3/4" BSP(F) inlet and outlet ports
• Suitable for oils up to SAE 140

Key specifications

Supplied with

• 3/4" pulse oil meter with 1m fly lead
• Not included: display, counting equipment, hose or pump

Related Macnaught products

• Macnaught Pulse Cap For IM019P Pulse Oil Meter PKIT-IM019-MC: Pulse kit (reed switch module)
• Macnaught Pulse Oil Meter - 1/2" IM012P-01: Other size or version
