Magswitch Fixed Single Hand Lifter, 235
Available

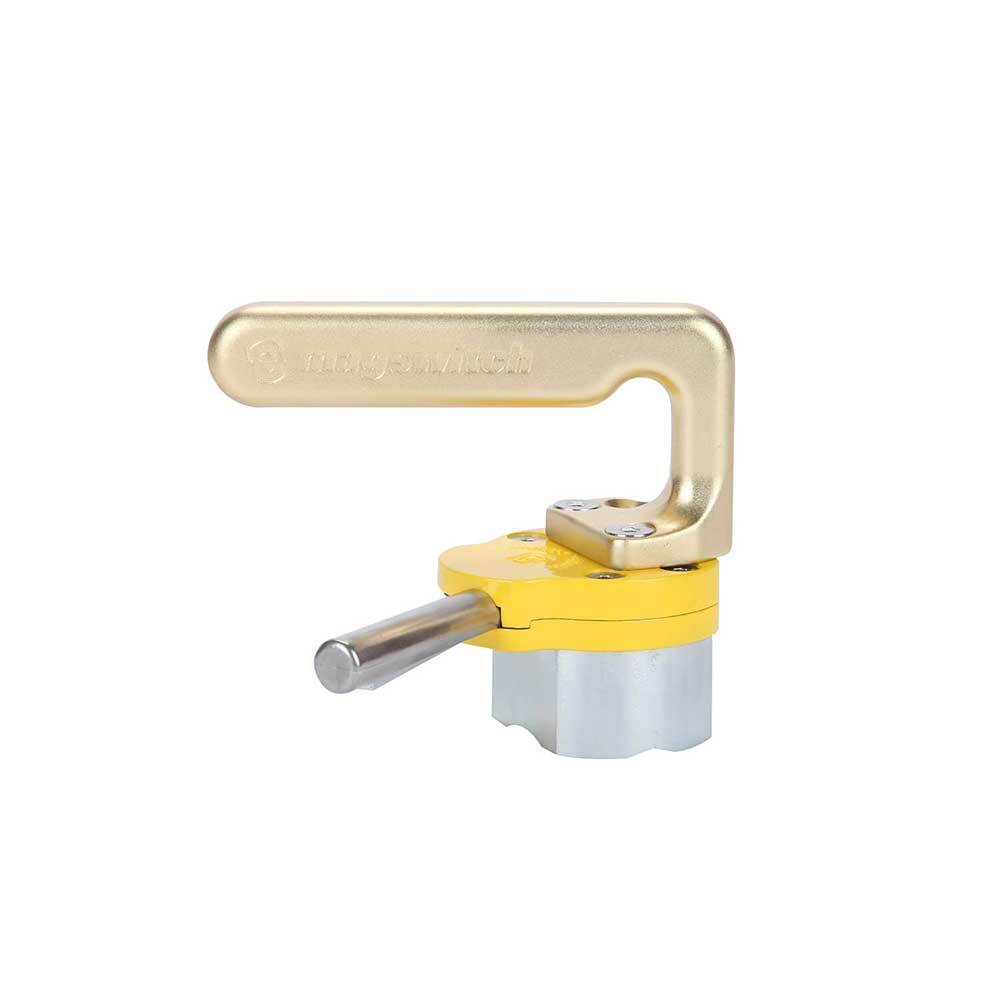

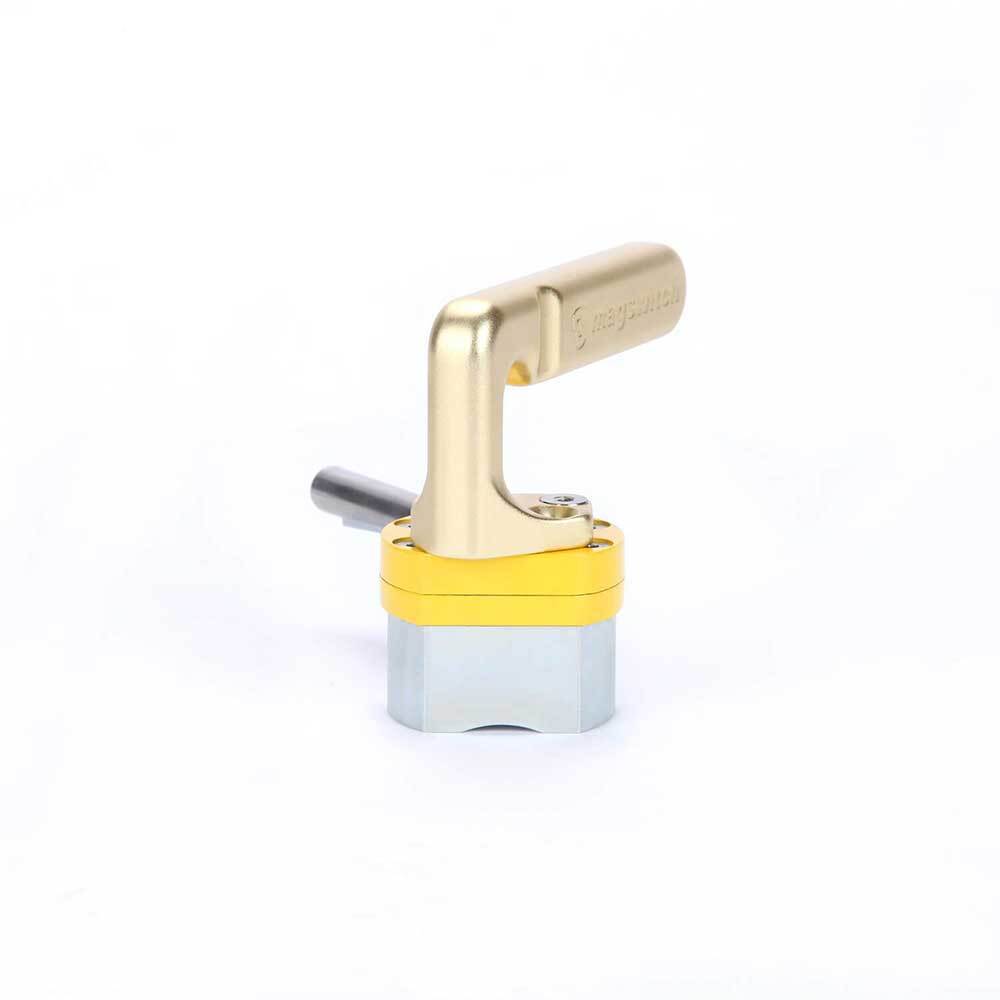

The Magswitch Fixed Single Hand Lifter is a hand-held magnet with a fixed handle for picking up and carrying hot, sharp or dirty steel without touching it. A single side lever switches the magnet on and off, and a locking mechanism stops the lever releasing by accident. It needs no electrical power.

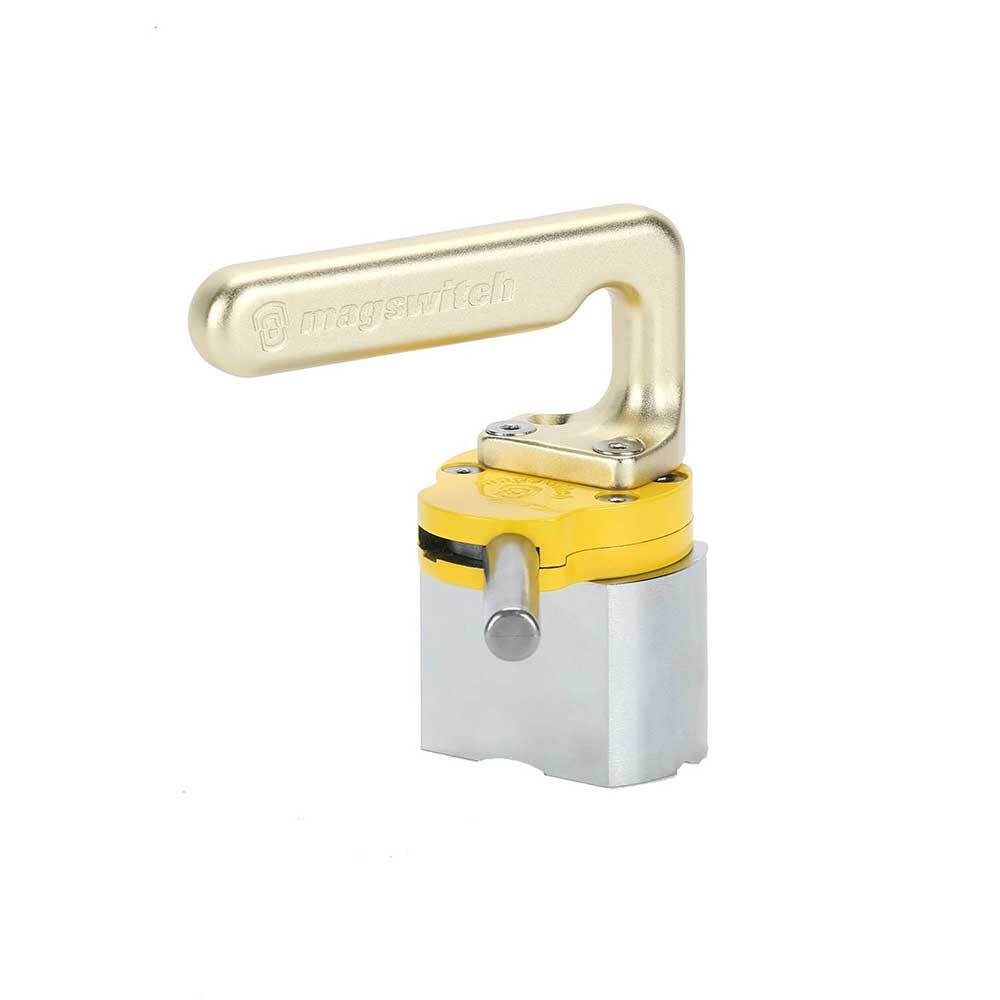

It comes in two sizes. The 235 model (8100795) has a maximum breakaway of 235lb (106kg) and the 400 model (8100810) has 390lb (177kg). Breakaway force is the force needed to pull the magnet straight off clean, flat, thick steel. It is a lab figure on ideal steel and is not a safe working load. Testing the magnet in your own application before use.
Where this product is used
- Handling sharp, hot or dirty steel and scrap

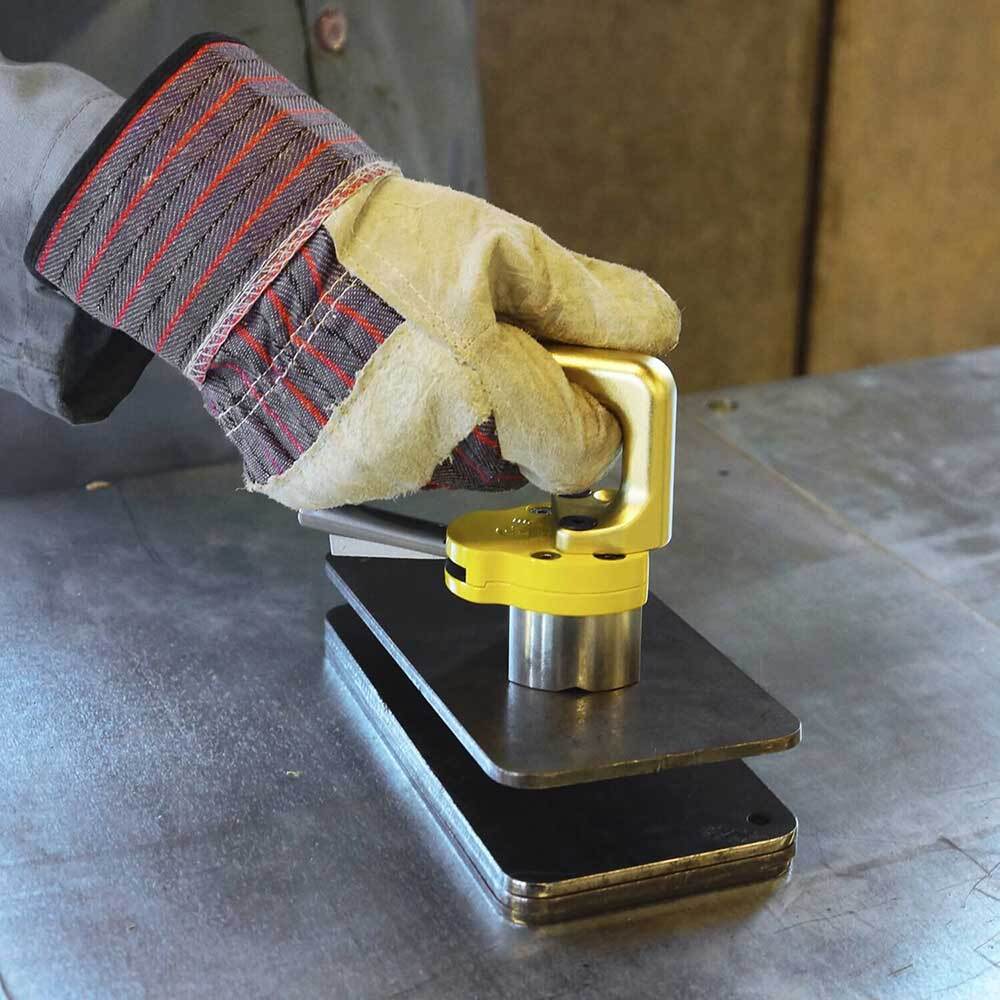

- Lifting and dragging small steel sheet
- Picking up small parts from the cutting table
Features
- Single 90 degree side-actuation lever with a locking mechanism that prevents accidental release
- No electrical power source needed
- Fixed ergonomic handle for lightweight, one-handed use
- Holds flat and round steel, and the magnet stays clean
- Magnet turns completely on and off
- Maximum breakaway of 235lb (106kg) or 390lb (177kg) on thick, clean, flat steel, lab figures and not safe working loads
- Warning: Do not operate unless in contact with a ferrous target (iron or steel)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Part numbers | 8100795 (235 model) and 8100810 (400 model) |
| Maximum breakaway (lab figure) | 235 model: 235lb (106kg). 400 model: 390lb (177kg) |
| Full saturation thickness | 235 model: 3/16" (4.75mm). 400 model: 3/8" (9.5mm) |
| Net weight | 235 model: 1.6lb (0.7kg). 400 model: 2.4lb (1.1kg) |
| Overall height | 235 model: 4.1" (105.1mm). 400 model: 5.0" (127.0mm) |
| Magnetic pole footprint | 235 model: 56mm x 42mm. 400 model: 67mm x 42mm |
| Breakaway test basis | Lab test on 2" thick SAE1018 steel, surface roughness 63 micro inches |
| Warning | Do not operate unless in contact with a ferrous target (iron or steel) |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 235 | A0171090 | |
| 390 | A0171091 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Magswitch Fixed Single Hand Lifter: 235
SKU: A0171090 | Model: 8100795
The 235 model of the Magswitch Fixed Single Hand Lifter has a maximum breakaway of 235lb (106kg) on thick, clean, flat steel. It reaches full force at 3/16" (4.75mm) steel and weighs 1.6lb (0.7kg).
