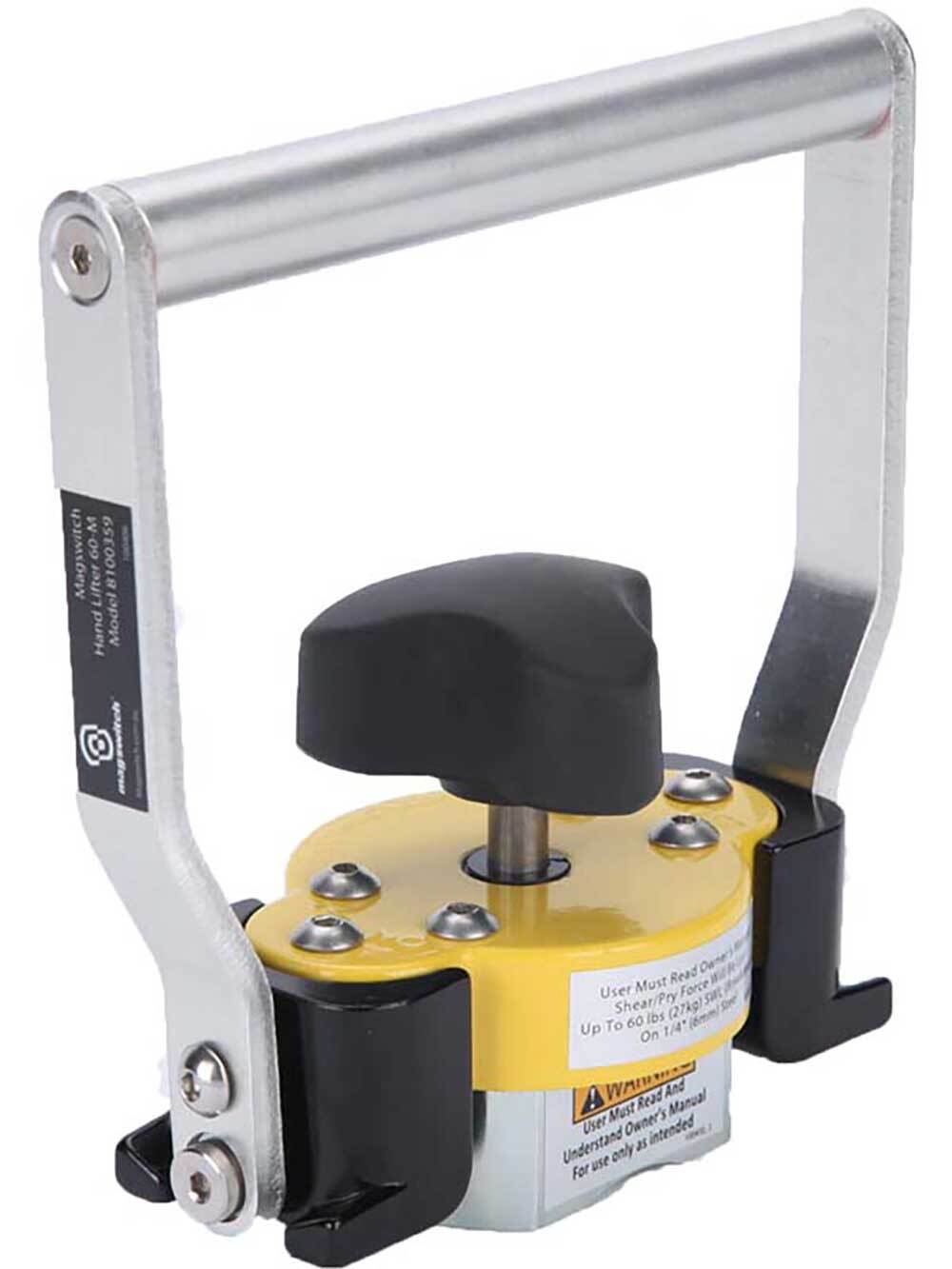

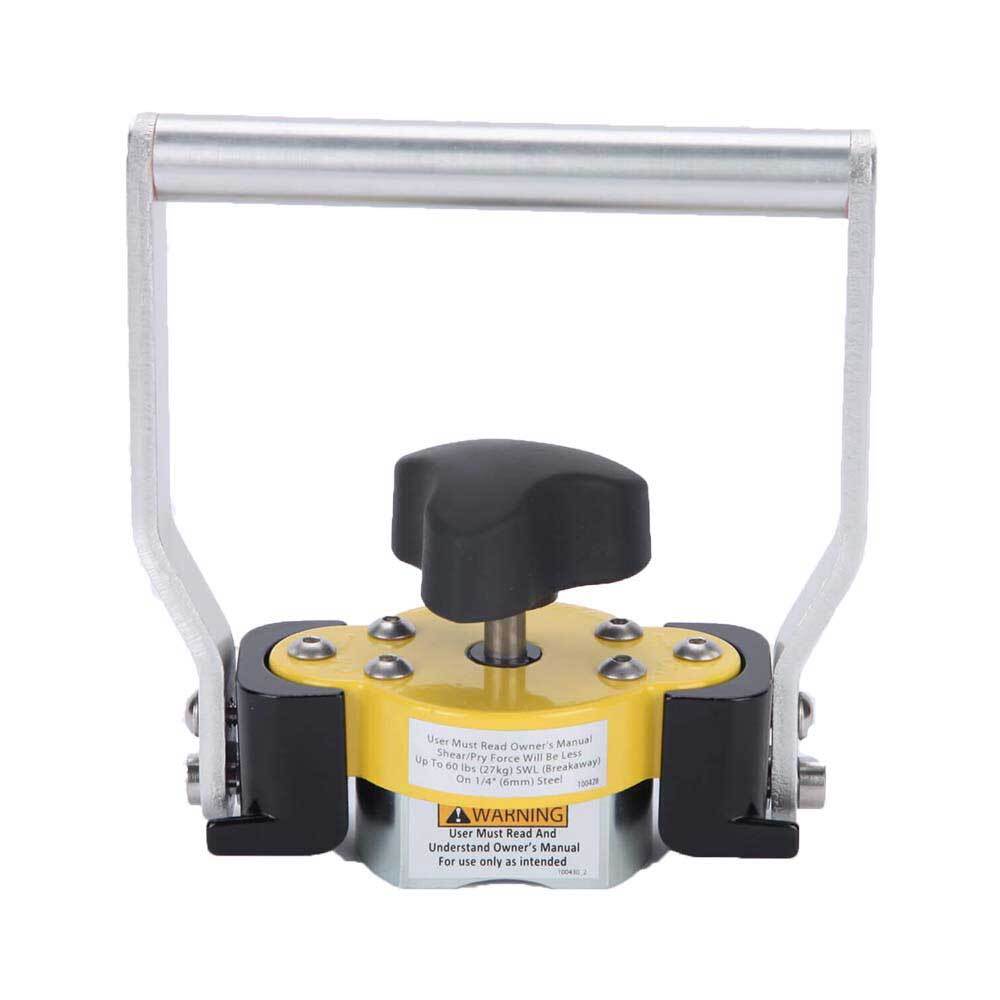

Magswitch Hand Lifter 60-M (Manual) 8100359
Available
The Magswitch Hand Lifter 60-M is the manual model in the Magswitch 60 hand lifter range, a hand-held magnet for lifting and moving steel. It at a maximum breakaway of 235lb (106kg). The cordless electric version is the 60-CE.
Breakaway force is the force needed to pull the magnet straight off clean, flat, thick steel. It is a lab figure on ideal steel and is not a safe working load. Full saturation thickness of 0.25" (6mm), which is the steel thickness where the magnet reaches its full force, so thinner steel is held with less. Testing the magnet in your own application before use.
Where this product is used

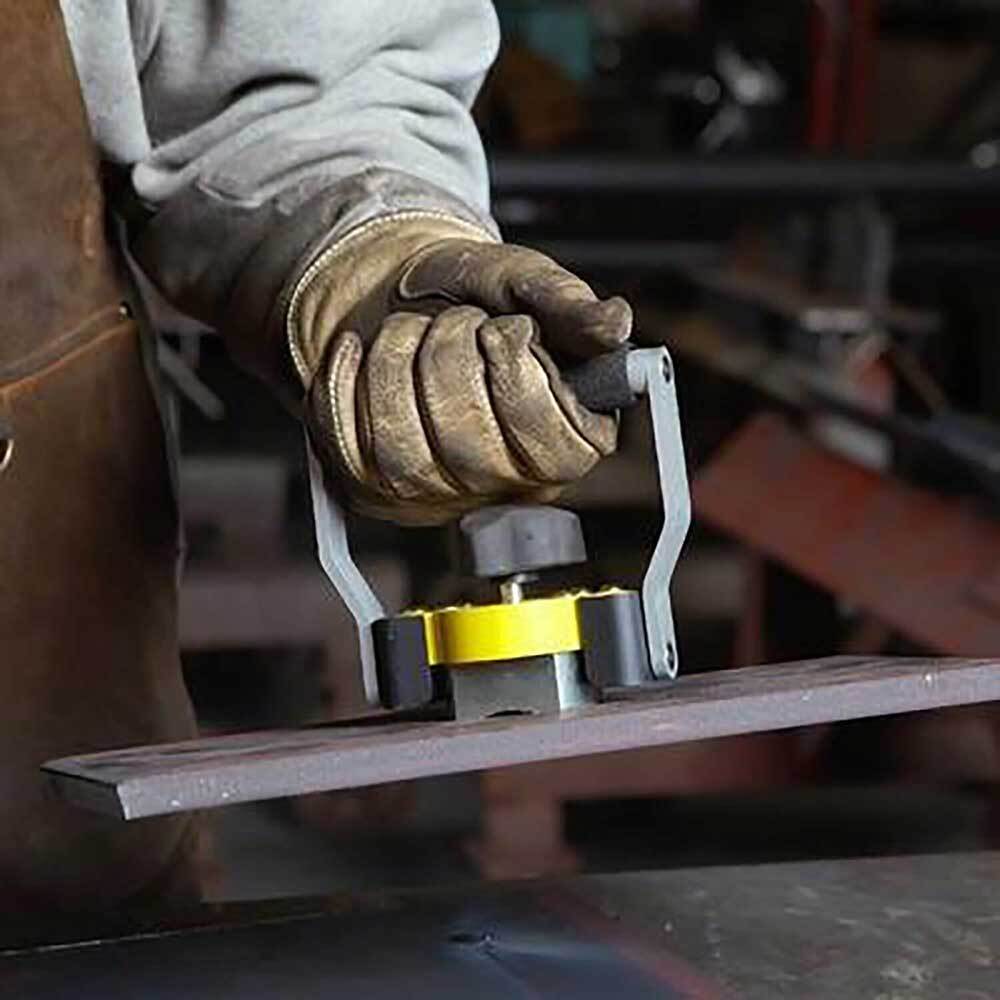

- Lifting and carrying steel plate and parts by hand
- Moving steel stock around a workshop or fabrication shop
Features
- Maximum breakaway of 235lb (106kg) on thick, clean, flat steel, a lab figure and not a safe working load
- Full saturation thickness of 0.25" (6mm), so thinner steel is held with less force
- Light at 1.3lb (0.6kg) and 140mm tall

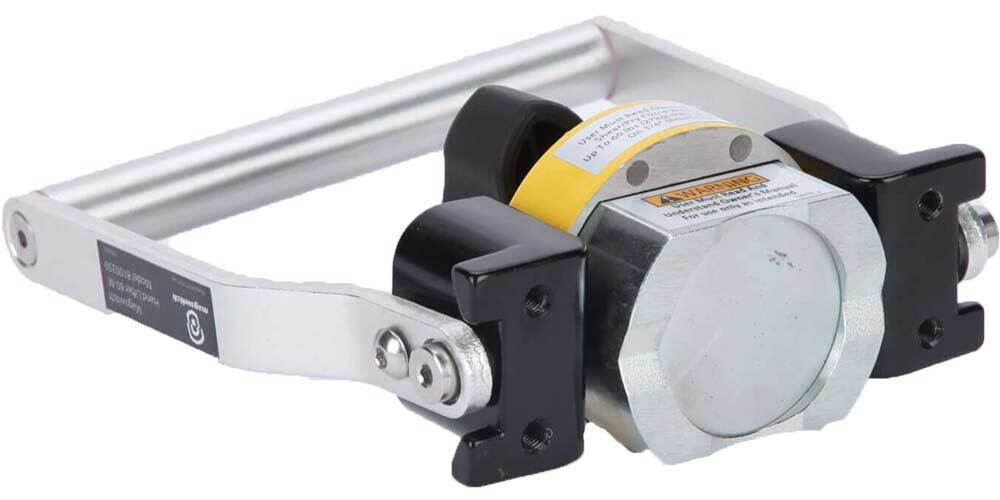

- Magnetic pole footprint of 56mm x 41.25mm
- Warning: Do not operate unless in contact with a ferrous target (iron or steel)
- Many factors change the real breakaway force, so test it in your own application before use
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Model | Hand Lifter 60-M (manual) |
| Part number | 8100359 |
| Maximum breakaway (lab figure) | 235lb (106kg) |
| Shear working load (sideways load) | 45lb (20kg) at 2:1 |
| Full saturation thickness | 0.25" (6mm) |
| Net weight | 1.3lb (0.6kg) |
| Overall height | 140mm |
| Magnetic pole footprint | 56mm x 41.25mm |
| Breakaway test basis | Lab test on 2" thick SAE1018 steel, surface roughness 63 micro inches |
| Warning | Do not operate unless in contact with a ferrous target (iron or steel) |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Magswitch Hand Lifter 60-M (Manual) 8100359
SKU: A0171094 | Model: 8100359
The Magswitch Hand Lifter 60-M is the manual hand lifter in the 60 range. Its maximum breakaway at 235lb (106kg) on thick, clean, flat steel, which is a lab figure and not a safe working load.
