Magswitch MagReach 400 - 400lb Max Breakaway (50.5 - 90" Range) 81001332
Out of stock

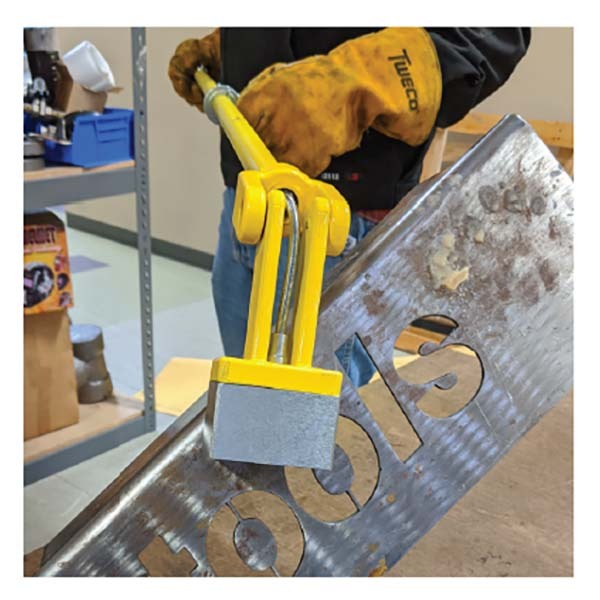

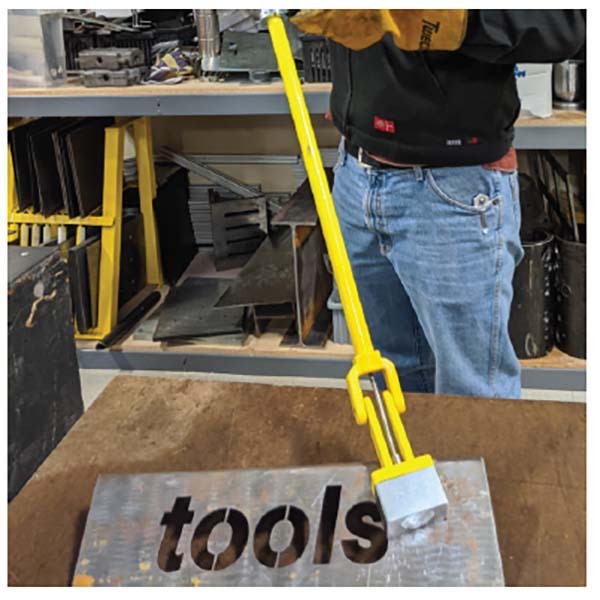

The Magswitch MagReach 400 is a no-touch tool for guiding, dragging and lifting steel. The extendable handle keeps your hands away from sharp, dirty or hot material, and it can pull parts off a burn table. It has patented Magswitch magnets with Fail-Safe Technology.
It has multiple working surfaces for flat and round material and a maximum lifting capacity of 23kg (50 lb). Do not exceed it. Its maximum forces are not safe lifting forces and recommends a 5:1 safe working load ratio for most applications.
Where this product is used
- Pulling parts off a burn table
- Moving hot, sharp or dirty steel without touching it
- Guiding and dragging steel into position
- Lifting light flat and round steel
Features
- No-touch design keeps hands away from sharp, dirty or hot material

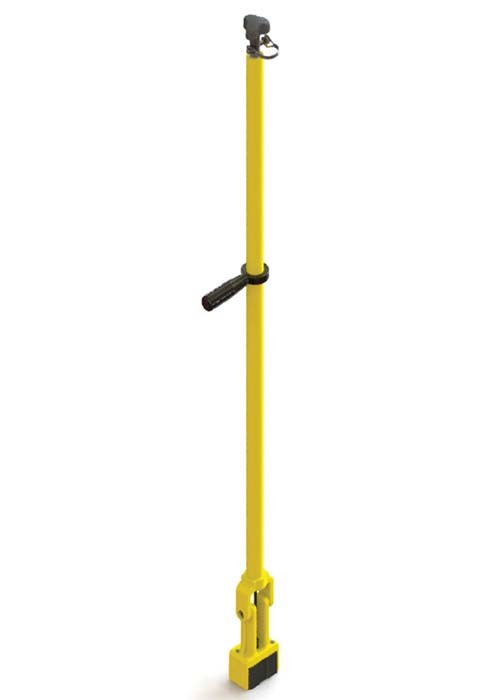

- Extendable handle with four length settings from 1282mm to 2182mm
- Pulls parts off a burn table

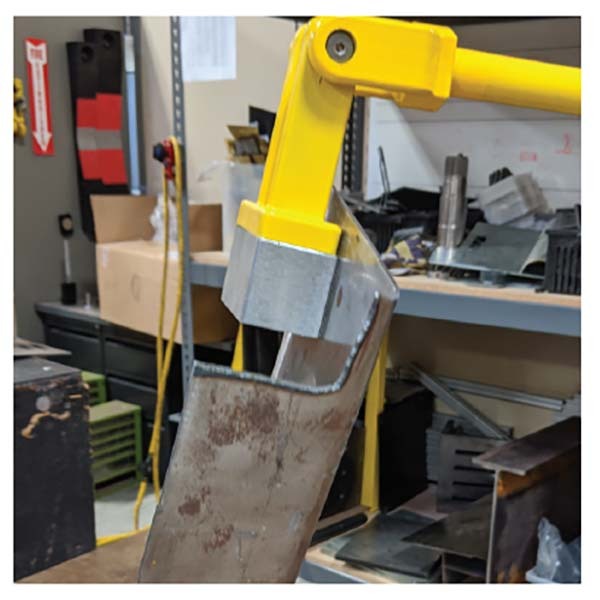

- Multiple working surfaces for flat and round material
- Patented Magswitch magnets with Fail-Safe Technology
- Maximum lifting capacity of 23kg (50 lb), and not to exceed it
- A 5: 1 safe working load ratio for most applications
- Maximum breakaway reaches 415.0kg (915 lb) on 12.7mm steel, and is much lower on thin steel
- Light at 3.5kg (7.7 lb) net weight
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Model | MagReach 400 |
| Part number | 81001332 |
| Type | Extendable no-touch magnetic lifter |
| Maximum lifting capacity | 23kg (50 lb) |
| Full saturation thickness | 9.5mm |
| Maximum breakaway by steel thickness | 1.9mm: 86.2kg, 3.0mm: 139.4kg, 6.4mm: 359.5kg, 9.5mm: 409.4kg, 12.7mm: 415.0kg |
| Basis for force figures | Flat pole shoes, values may vary by plus or minus 5% |
| Length settings | 1282mm, 1582mm, 1882mm and 2182mm |
| Pole footprint | 71 x 43mm (2.8 x 1.7") |
| Net weight | 3.5kg (7.7 lb) |
| Recommended safety ratio | 5:1 safe working load for most applications |
| Warning | Maximum forces are not safe lifting forces. Do not operate unless in contact with a ferrous target. Do not exceed maximum lifting capacity |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Magswitch MagReach 400 - 400lb Max Breakaway (50.5 - 90" Range) 81001332
SKU: A0171099 | Model: 81001332
The MagReach 400 (part 81001332) is an extendable no-touch magnetic lifter for guiding, dragging and lifting steel while keeping your hands away from sharp, dirty or hot material. It has a maximum lifting capacity of 23kg (50 lb), four length settings up to 2182mm and weighs 3.5kg (7.7 lb). Do not exceed the lifting capacity.
