Master Lock 0005UP and 0005UPLF 51mm Universal Pin padlocks
Available

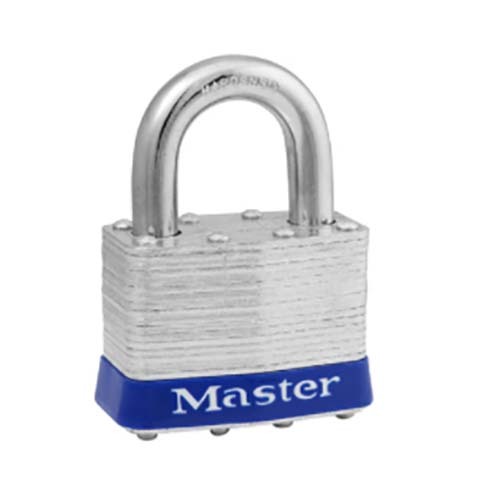

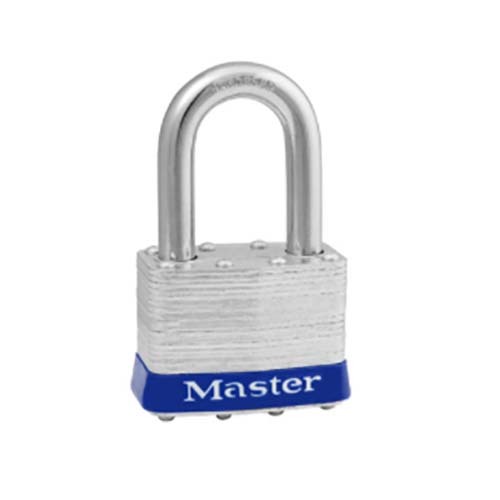

Master Lock Universal Pin (UP) laminated steel padlocks come with a 51mm body and a boron shackle, in two shackle heights: 0005UP (25mm opening height) and 0005UPLF (38mm opening height).
Wide laminated steel body, dual ball bearing locking and a 4-pin tumbler cylinder, and the padlock can be pinned to a customer's key in minutes.
Where this product is used
- Adding a padlock to an existing 1K key profile system
- Securing gates, sheds, lockers, toolboxes and equipment
Features
- Universal Pin design: cylinder set to your own 1K key
- Laminated steel body, 51mm wide
- Boron shackle, 10mm diameter, 24mm wide
- Dual ball bearing locking and a 4-pin tumbler cylinder
- Key profile 1K
Key specifications
| Specification | Detail |
|---|---|
| Brand | Master Lock |
| Product | Universal Pin laminated steel padlock |
| Part numbers | 0005UP, 0005UPLF |
| Body width | 51mm |
| Body | Laminated steel |
| Shackle | Boron |
| Key profile | 1K |

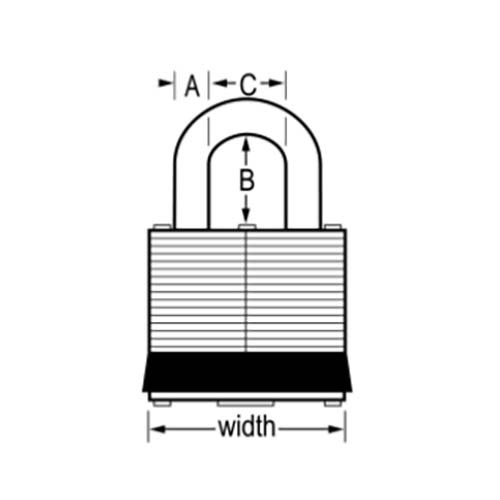

| Shackle diameter x height x width | 10mm x 25mm x 24mm, 10mm x 38mm x 24mm |
Choosing the right option
Choose the shackle height: 0005UP has a 25mm opening height and 0005UPLF has a 38mm opening height. The padlock is otherwise the same. No. 0376 keying tool and 0001B key blanks as separate items.
Also from Master Lock: 44mm Universal Pin padlocks, 5DAU 51mm laminated steel padlock, 51mm Magnum padlocks.
| Option | Part number | SKU |
|---|---|---|
| 10 x 25 x 24mm | 0005UP | A0170316 |
| 10 x 38 x 24mm | 0005UPLF | A0170317 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Master Lock Laminated Padlock Steel - Boron Shackle: 10 x 38 x 24 mm
SKU: A0170317 | Model: 0005UPLF
Master Lock 0005UPLF: 51mm Universal Pin laminated steel padlock, boron shackle 10mm x 38mm, key profile 1K.
