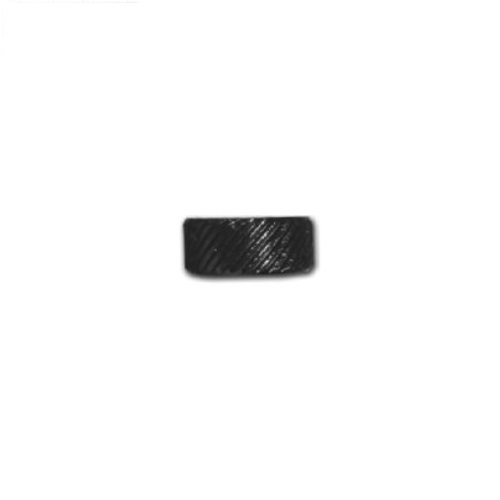

Maxigear K3/4DLF 3/4" x 3/8" Diagonal Left Hand Fine Knurling Wheel Replacement

Maxigear diagonal left hand fine knurling wheel replacement in 5/8" x 5/16" (K5/8DLF, 7/32" bore) and 3/4" x 3/8" (K3/4DLF, 1/4" bore).

Maxigear gives the pitch of a fine knurl as 0.75mm or 33 TPI (manufacturer-stated). The table gives each size with its bore and the tools it suits.

Where this product is used

• Replacement wheel, 5/8" x 5/16" size, for the KTAS and KT6S tools (manufacturer-stated)
• Replacement wheel, 3/4" x 3/8" size, for the KTS3/4, KTP, KTAL and KT6L tools (manufacturer-stated)

Features

• Diagonal left hand knurling pattern (manufacturer-stated)
• Fine knurl, pitch 0.75mm or 33 TPI (manufacturer-stated)
• Sizes 5/8" x 5/16" and 3/4" x 3/8", with bores 7/32" and 1/4" (manufacturer-stated)

Common specifications

Key specifications

Size, bore and suitable tools for each part number.

Selecting the right option

Pick the wheel by the knurling tool you are fitting. The 5/8" x 5/16" size (7/32" bore) suits KTAS (self adjusting knurling tool) and KT6S (revolving knurling tool). The 3/4" x 3/8" size (1/4" bore) suits KTS3/4 (single straight knurling tool), KTP (pivot head knurling tool), KTAL (self adjusting knurling tool) and KT6L (revolving knurling tool) (manufacturer-stated).

Related products

Same pattern, other grades: Diagonal left hand medium wheel and Diagonal left hand coarse wheel. Same grade, other patterns: Straight fine wheel, Diagonal right hand fine wheel and Diamond cross fine wheel.
