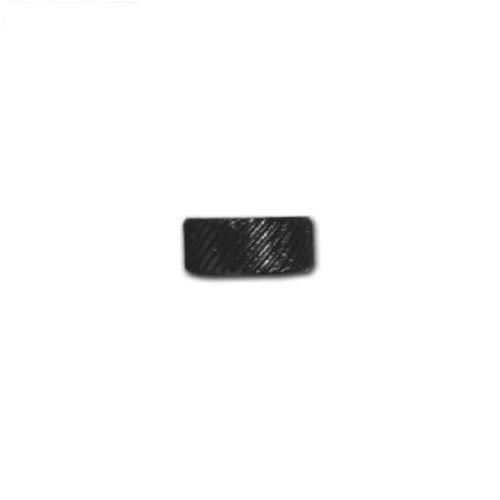

Maxigear Diagonal Right Hand Fine Knurling Wheel, 1/4

Maxigear diagonal right hand fine knurling wheel replacement is available in 5/8" x 5/16" (K5/8DRF, 7/32" bore) and 3/4" x 3/8" (K3/4DRF, 1/4" bore).

A fine knurl has a pitch of 0.75mm or 33 TPI. The table gives each size with its bore and the tools it suits.

Where this product is used

• Replacement wheel, 5/8" x 5/16" size, for the KTAS and KT6S tools
• Replacement wheel, 3/4" x 3/8" size, for the KTS3/4, KTP, KTAL and KT6L tools

Features

• Diagonal right hand knurling pattern
• Fine knurl, pitch 0.75mm or 33 TPI
• Sizes 5/8" x 5/16" and 3/4" x 3/8", with bores 7/32" and 1/4"
• Type: Knurling wheel replacement

Key specifications

Choosing the right option

Pick the wheel by the knurling tool you are fitting. The 5/8" x 5/16" size (7/32" bore) suits KTAS (self adjusting knurling tool) and KT6S (revolving knurling tool). The 3/4" x 3/8" size (1/4" bore) suits KTS3/4 (single straight knurling tool), KTP (pivot head knurling tool), KTAL (self adjusting knurling tool) and KT6L (revolving knurling tool).

Same pattern, other grades: Diagonal right hand medium wheel, Diagonal right hand coarse wheel.

Same grade, other patterns: Straight fine wheel, Diagonal left hand fine wheel, Diamond cross fine wheel.
