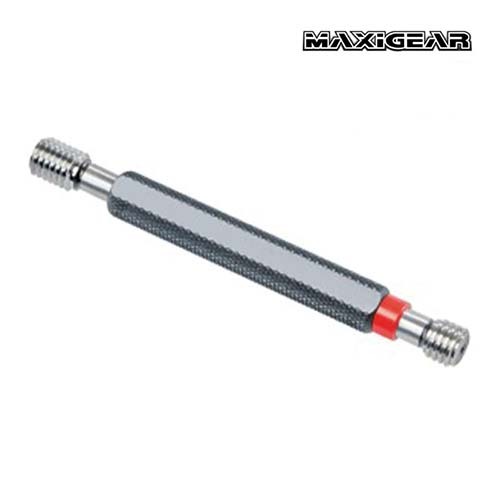

Maxigear TPGM01420 M14 x 2.0 Thread Plug Gauge
Available
Maxigear thread plug gauges are available in two metric sizes: M14 x 2.0 (TPGM01420) and M16 x 2.0 (TPGM01602).
It is a thread limit plug gauge as a combination of a go plug gauge and a no-go plug gauge, with the scrap side marked with a red ring.
Where this product is used
- Checking a cut thread: the go end must screw in by hand, without excessive force
- Checking that the scrap side does not turn more than two turns into the thread
Features
- Thread limit plug gauge: go and no-go ends
- Scrap side marked with a red ring
- Reference temperature for parts and gauges is 20°C
- Type: Thread limit plug gauge
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Thread limit plug gauge |
| Part numbers | TPGM01420 and TPGM01602 |
| Sizes | M14 x 2.0 and M16 x 2.0 |
| Ends | Go and no-go, scrap side marked with a red ring |
Choosing the right option
Choose the part number by thread: TPGM01420 for M14 x 2.0 or TPGM01602 for M16 x 2.0. The go end must screw into the thread by hand without excessive force, and the scrap side must not turn more than two turns. For several sizes see the 7 piece metric set.
Metric set: Thread plug gauge set, 7 pieces.
Thread tools: Combination drill and tap, Screw pitch gauge.
| Option | Part number | SKU |
|---|---|---|
| M14 | TPGM01420 | A0144572 |
| M16 | TPGM01602 | A0144573 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Maxigear Thread Plug Gauge: M14
SKU: A0144572 | Model: TPGM01420
Maxigear TPGM01420: M14 x 2.0 thread limit plug gauge, go and no-go, scrap side marked with a red ring.
