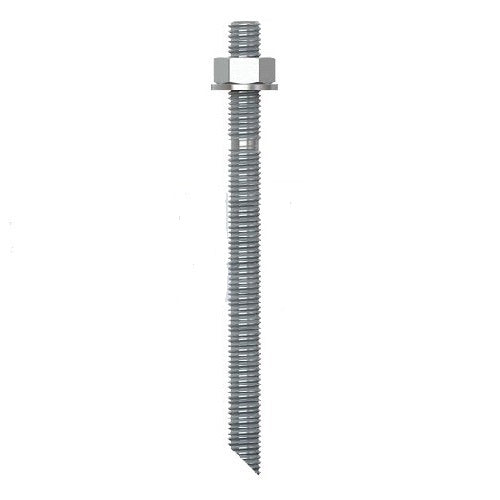

Hobson Metric Flat Cut Stud Chemical Anchor, M10

This is the Hobson metric flat cut stud chemical anchor (flat cut end and galvanised finish). The range has 5 items: M10 to M24. A chemical anchor stud is a threaded stud that is fixed into a drilled hole with a chemical (resin) anchoring system.

Where this product is used

• Setting a threaded stud in concrete with a chemical anchoring system
• Fixing base plates, posts and brackets where a threaded stud and nut are wanted
• Heavier fixings to concrete, where the fixing is specified to the manufacturer's installation data
• Weather-exposed fixings where plain or zinc plated parts would rust
• The 5 items cover diameters from M10 to M24, confirm the size against your drawing before ordering

Features

• 5 items: M10 to M24
• Flat cut end and galvanised finish
• Pack quantities from 5 to 10, shown for each item
• Sizes: M10 to M24

Key specifications

Choosing the right option

Choose the stud size and length to suit the fixture and the hole depth the job needs.

Treat it as an outdoor-capable zinc coating, and check the item description for hot dip if the job depends on it, for example structural work or treated pine. For coastal splash zones and sites within about 1 km of the sea, 316 stainless is generally the better choice.

Check the installation data for the anchor size for hole size and depth.

Related anchors: Hobson Metric Stud Chemical Anchor Kit, Grade 5.8, Hot Dip Galvanised, M10 to M24, Hobson Metric Stud Chemical Anchor Kit, Grade 5.8, Zinc Yellow, M8 to M24 and Hobson Stud Chemical Anchor Kit, Class 8.8, Flat Top Angle Cut, Hot Dip Galvanised, M10 to M24.
