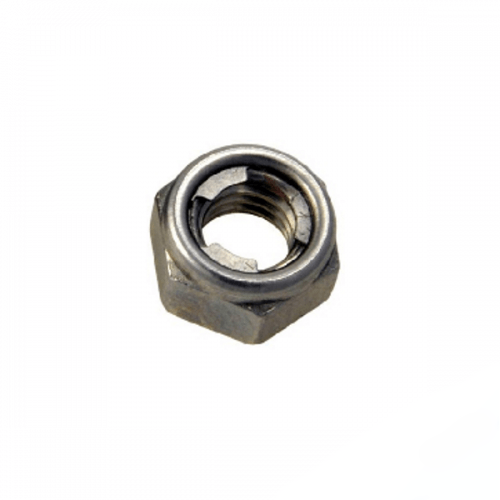

M4 Hex Lock Nut, 304 Stainless Steel - XIWA2M4
The price shown is for the box.
Available
The Metric Hex Lock Nut, 304 Stainless Steel (M4 to M20) is a hex lock nut. A lock nut is designed to resist loosening under vibration better than a plain hex nut.
The range runs to 8 variants, covering sizes M4 to M20. Pack quantities depend on size: packs of 25 to 100.
A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.
Where this product is used
- Larger sizes for frames, plant and structural fixings
- Small sizes for enclosures, instruments and light fittings
- Equipment that is hard to re-tighten
- Indoor architectural and joinery work
- Food and beverage equipment
- Fresh water and general outdoor fittings
Features
- Designed to resist loosening under vibration
- Supplied in packs of 25 to 100
- Hex form for spanner or socket tightening
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- Range covers M4 to M20 in 8 variants
Key specifications
| Specification | Detail |
|---|---|
| Product | Metric Hex Lock Nut (M4 to M20) |
| Type | Hex lock nut |
| Material | A2 (304) stainless steel |
| Variants | 8 |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Environment | Indoor, fresh water and general outdoor use |
| Sizes available | M4 to M20 |
| Key features | Designed to resist loosening under vibration; Hex form for spanner or socket tightening |
| Thread system | Metric |
| Pack size | 25 to 100, by size |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Head type | Hex |
Selecting the right option
The locking method (for example nylon insert or all-metal) varies between suppliers, so check a sample if the locking method matters for your use. Match the thread system, diameter and pitch to the bolt. Use anti-seize on the thread. For coastal or chloride-exposed use, choose the A4 (316) version: Hex Inox Lock Nut A4 (316).
Related products
Other versions in this range: Metric Hex Lock Nut - 316 Stainless Steel and Metric Hex Lock Nut - 304 Stainless Steel. Often used with: Metric Hex Bolt - 304 Stainless Steel, Metric Hex Set Bolt (Full Thread) - 304 Stainless Steel and Inox Standard Flat Round Washer - 304 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Metric Hex Lock Nut - 304 Stainless Steel (M4 to M20): M4
SKU: A0075451 | Model: XIWA2M4
XIWA2M4: M4 hex lock nut, 304 Stainless Steel. Sold in a box of 100. Suits vibrating machinery, frames and guards.
