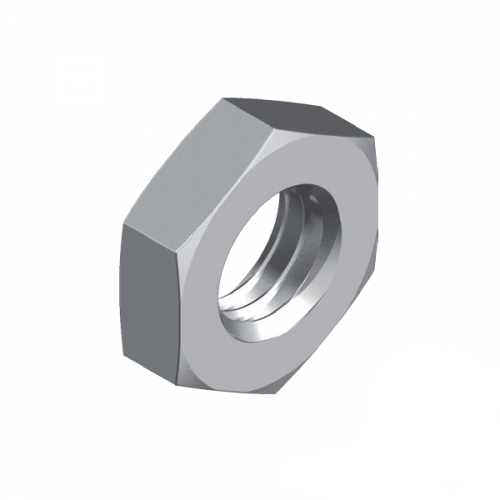

M4 Hex Lock Nut, 316 Stainless Steel - XLNA4M4

Made in 316 (A4) stainless steel, the Metric Hex Lock Nut is a hex lock nut. A lock nut is designed to resist loosening under vibration better than a plain hex nut.

This listing has 16 variants covering sizes M4 to M36. Variants are supplied in packs of 5 to 100, depending on size.

The A4 (316) grade is stainless steel with added molybdenum, which helps it hold up where salt, pool chemicals or washdown chemicals are present. It is the more corrosion-resistant of the two common stainless grades, at a higher cost than 304. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.

Where this product is used

• Marine, coastal and washdown fittings
• Vibrating machinery, frames and guards
• Boat, jetty and waterfront structures
• Small sizes for enclosures, instruments and light fittings
• Food and beverage equipment
• Larger sizes for frames, plant and structural fixings

Features

• Hex form for spanner or socket tightening
• Pack quantities to suit trade and bulk buying: packs of 5 to 100
• Choice of 16 sizes, M4 to M36
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• Designed to resist loosening under vibration

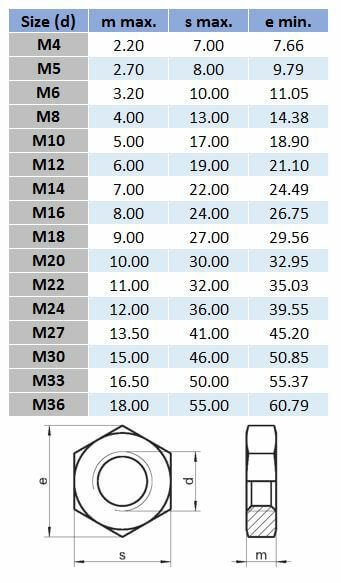

Key specifications

Selecting the right option

The supplier does not state the locking method (for example nylon insert or all-metal) for this listing, so check a sample if the locking method matters for your use. Match the thread system, diameter and pitch to the bolt. Use anti-seize on the thread. Where chlorides are not a concern, the A2 (304) version costs less: Metric Hex Lock Nut - 304 Stainless Steel (M4 to M20).
