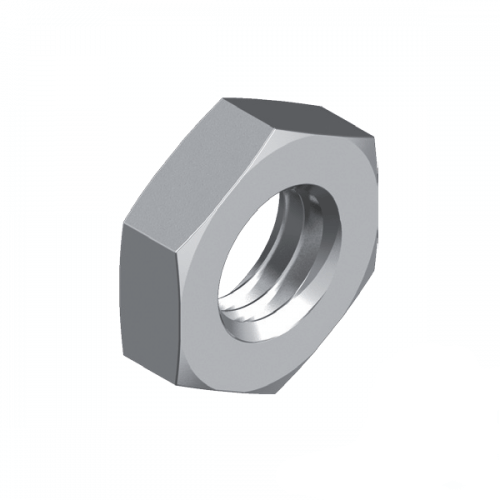

M4 Hex Lock Nut, 304 Stainless Steel - XLNA2M4

Made in 304 (A2) stainless steel, the Metric Hex Lock Nut is a hex lock nut. A lock nut is designed to resist loosening under vibration better than a plain hex nut.

The A2 (304) stainless material suits indoor, fresh water and typical outdoor use. Where the fastening is exposed to salt air, pool chemicals or marine conditions, A4 (316) is the grade to use instead. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

This listing has 10 variants covering sizes M4 to M24. Pack quantities depend on size: packs of 25 to 100.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.

Where this product is used

• Larger sizes for frames, plant and structural fixings
• Outdoor structures away from the coast
• Indoor architectural and joinery work
• Vibrating machinery, frames and guards
• Small sizes for enclosures, instruments and light fittings
• Food and beverage equipment

Features

• Supplied in packs of 25 to 100
• Hex form for spanner or socket tightening
• Range covers M4 to M24 in 10 variants
• Designed to resist loosening under vibration
• A2 (304) stainless steel for indoor, fresh water and general outdoor use
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment

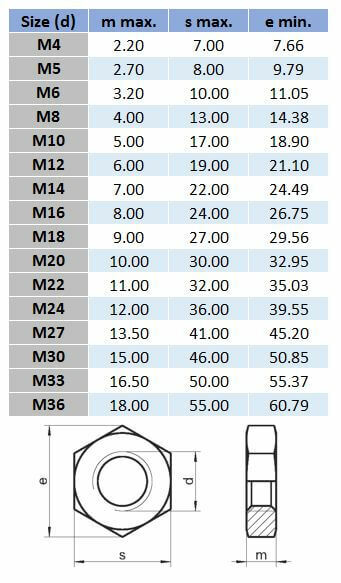

Key specifications

Selecting the right option

The supplier does not state the locking method (for example nylon insert or all-metal) for this listing, so check a sample if the locking method matters for your use. Match the thread system, diameter and pitch to the bolt. Use anti-seize on the thread. Near the coast, around pools or in marine settings, use the A4 (316) version instead: Hex Inox Lock Nut A4 (316).
