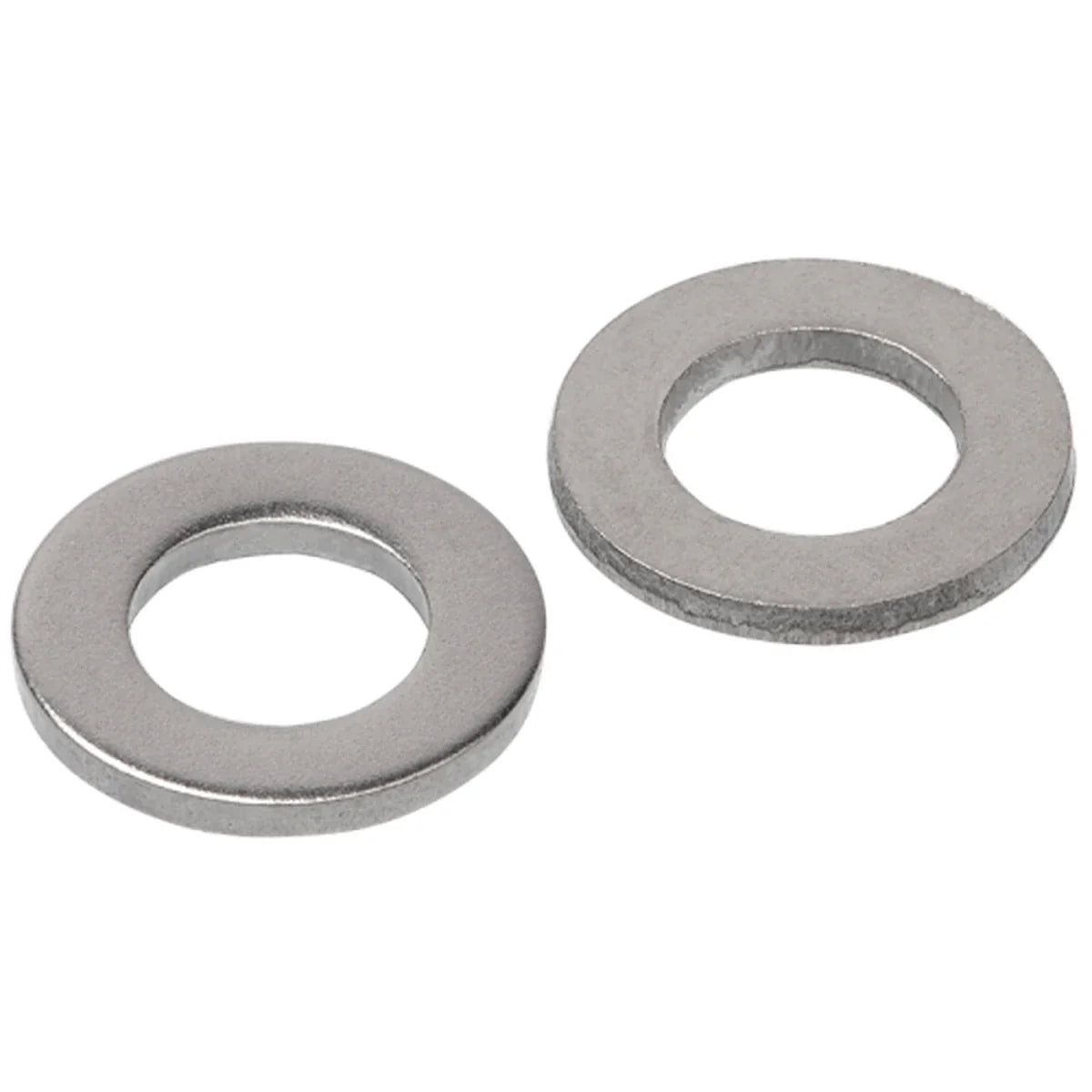

M30 x 56 x 4.0mm Flat Round Washer, 316 Stainless Steel - FWAA4M30

The Flat Round Washer DIN125A Stainless Steel is a flat ring that spreads the clamping load of a nut or bolt head and protects the surface being fixed.

Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

You can choose from 3 variants, covering sizes M30 x 56 x 4.0mm to M36 x 66 x 5.0mm. Variants are supplied in packs of 10 to 20, depending on size.

In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Marine, coastal and washdown fittings
• Boat, jetty and waterfront structures
• Architectural work near the coast
• Larger sizes for frames, plant and structural fixings
• Protecting soft or painted surfaces
• Under nuts and bolt heads to spread the load

Features

• Spreads clamping load under bolts and nuts
• Pack quantities to suit trade and bulk buying: packs of 10 to 20
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Protects the surface from damage
• Choice of 3 sizes, M30 x 56 x 4.0mm to M36 x 66 x 5.0mm
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment

Key specifications

Selecting the right option

Match the washer to the fastener size, and check outer diameter and thickness for the load. Washers are listed by the size of bolt they suit. Use stainless washers with stainless bolts to avoid mixed-metal corrosion. Where chlorides are not a concern, the A2 (304) version costs less: Inox Standard Flat Round Washer - 304 Stainless Steel.
