M3 Nylon Insert Lock Nut, 316 Stainless Steel - XNNA4M3

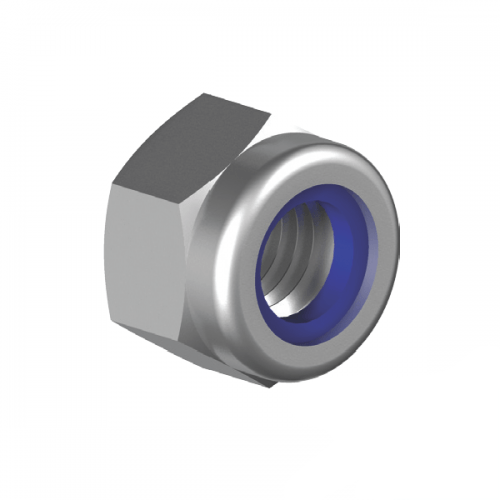

The Metric Hex Nylon Insert Lock Nut, 316 Stainless Steel is a hex nut with a nylon ring set into the top. The nylon grips the bolt thread and resists loosening from vibration.

A4 (316) stainless steel contains molybdenum (about 2 to 3 per cent), which improves its resistance to chlorides. It is the grade normally chosen for coastal, pool, marine and food-processing settings, and it costs more than A2 (304). Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

This listing has 17 variants covering sizes M3 to M36. Pack quantities depend on size: packs of 5 to 200.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.

Where this product is used

• Equipment that is hard to re-tighten
• Food and beverage processing equipment
• Small sizes for enclosures, instruments and light fittings
• Marine, coastal and washdown fittings
• Food and beverage equipment
• Larger sizes for frames, plant and structural fixings

Features

• Pack quantities to suit trade and bulk buying: packs of 5 to 200
• Choice of 17 sizes, M3 to M36
• Nylon insert grips the thread and resists loosening
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• Hex form for spanner or socket tightening

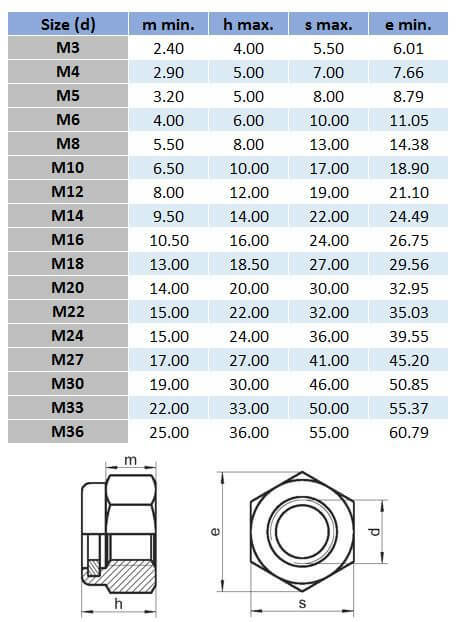

Key specifications

Selecting the right option

The nylon ring limits the working temperature of the nut, so check the supplier data before using it near heat. A nylon insert nut is normally treated as single-use where a tight lock is needed. The bolt must pass fully through the nylon ring. Use a stainless flat washer. Where chlorides are not a concern, the A2 (304) version costs less: Metric Hex Nylon Insert Lock Nut - 304 Stainless Steel.
