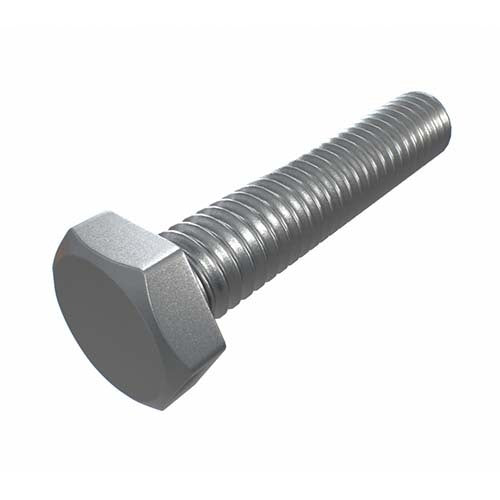

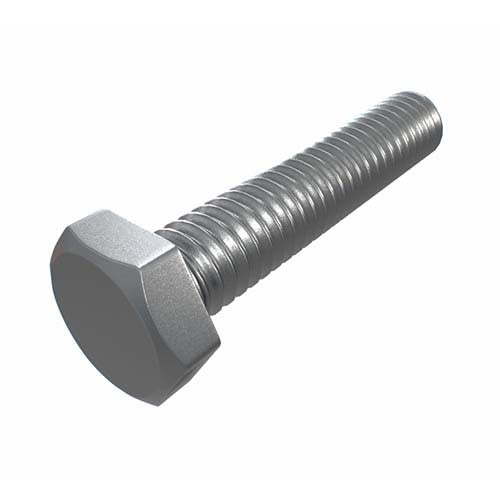

Hobson Metric Hex Set Screw, M6 / 20

The Hobson metric hex set screw has a hex head and a metric thread, and is fitted into a tapped hole or through a clearance hole with a nut (Class 4.6 UTS, hot dip galvanised). There are 56 items: M6 to M24, in lengths from 20 to 150mm. Class 4.6 is low tensile carbon steel, and corresponds to imperial grade 2.

These screws are Class 4.6 UTS. UTS is a tensile strength abbreviation.

Where this product is used

• Fitted into a tapped hole, or through a clearance hole with a nut and washer, to clamp parts together
• Replacing a hex head screw of the same thread form, diameter, pitch and length
• Machinery, equipment and fabrication work where a hex head screw is called for

Features

• 56 items: M6 to M24
• Class 4.6 UTS, hot dip galvanised
• Length 20 to 150mm
• Sizes: M6 to M24

Key specifications

Choosing the right option

Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Length is measured from under the head to the end of the screw. For a different strength level see Hobson Metric Hex Set Screw, Class 8.8, Plain, M6 to M24.
