Bremick WRMSZSM06 M6 x 11.8mm x 1.6mm Metric Spring Washer, Spring Steel, Zinc
The price shown is for the box.
Available

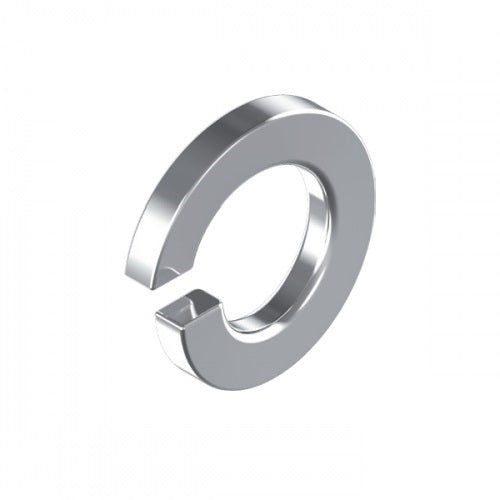

A spring washer is a split ring fitted under a nut or bolt head. There are 8 Bremick metric spring washer items (metric thread, spring steel, zinc finish): M6 to M24.
Size is the nominal thread size the washer is made for. The outside diameter and thickness are the figures listed with each size; the product data does not give the hole (inside) diameter.
The product data does not state a standard for these spring washers, so none is published.
Items shown as Each are single pieces; the others are supplied in the pack or box quantity shown in the table.
Where this product is used
- Under nuts and bolt heads where some resistance to loosening from vibration is wanted
- Bolted joints in light fabrication, fitted with a flat washer where the surface needs protecting
- Replacing spring washers in existing assemblies, matching the bolt size
- Dry, indoor and sheltered locations such as workshops, enclosed machinery and interior fit-out
- The 8 items cover diameters from M6 to M24; confirm the size against your drawing before ordering.
Choosing the finish
A zinc plated finish gives light corrosion protection indoors and under cover. The coating is thin, so outdoor exposure without extra protection is generally not recommended, and treated pine calls for a different finish.
For weather-exposed work, look at a hot dip galvanised version instead; within about 1 km of the sea, 316 stainless is generally the safer choice.
Matching the bolt
A spring washer resists loosening to a degree. Choose it by the bolt size shown, and use a flat washer as well where the surface needs protecting.
Features
- 8 items: M6 to M24
- Metric thread, spring washer
- Spring steel, zinc finish
- Pack quantity shown for each item
- Electroplated zinc finish: indoor and under-cover use
- Material: spring steel
Common specifications
| Specification | Detail |
|---|---|
| Sizes | M6 to M24 |
| Washer type | Spring washer |
| Material | Spring steel |
| Finish | Zinc |
Key specifications
| Model | Size | Outside diameter | Thickness | Supplied as |
|---|---|---|---|---|
| WRMSZSM06 | M6 | 11.8mm | 1.6mm | Box of 200 |
| WRMSZSM08 | M8 | 14.8mm | 2mm | Box of 200 |
| WRMSZSM10 | M10 | 18.1mm | 2.2mm | Box of 200 |
| WRMSZSM12 | M12 | 21.1mm | 2.5mm | Box of 200 |
| WRMSZSM14 | M14 | 24.1mm | 3mm | Each |
| WRMSZSM16 | M16 | 27.4mm | 3.5mm | Box of 200 |
| WRMSZSM20 | M20 | 33.6mm | 4mm | Box of 100 |
| WRMSZSM24 | M24 | 40mm | 5mm | Pack of 300 |
Selecting the right option
Choose the size by the bolt or screw diameter the washer goes on, then check the outside diameter and thickness against your joint. The outside diameter and thickness are shown for each size in the table. For a flat washer to spread the load, see the related flat round washers.
Related products
Related washers: Bremick Metric Spring Washer, Spring Steel, Hot Dip Galvanised, M8 to M24, Bremick Metric Flat Round Washer, Mild Steel, Plain, M6 to M56 and Bremick Metric Flat Round Washer, Mild Steel, Hot Dip Galvanised, M6 to M64.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bremick Metric Spring Washer, Spring Steel, Zinc, M6 to M24: M6 x 11.8 x 1.6mm
SKU: A0086708 | Model: WRMSZSM06
Bremick WRMSZSM06: M6 spring washer, 11.8mm OD x 1.6mm thick, spring steel, zinc. Box of 200.
