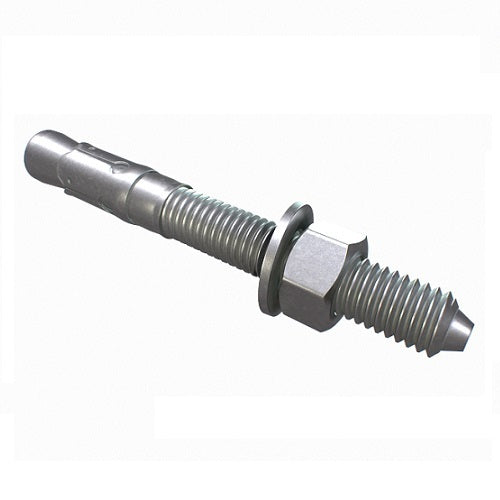

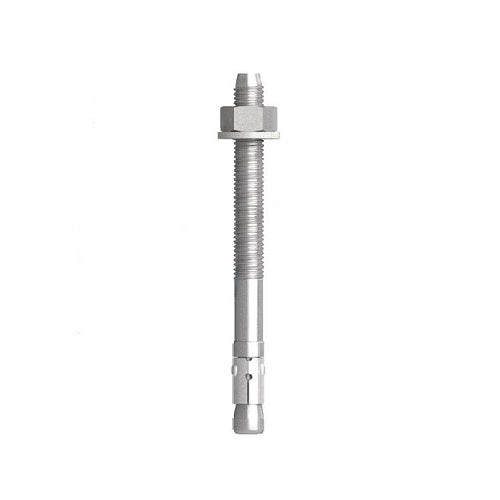

Bremick Through Bolt (Stud) Anchor, M10, 90mm
The price shown is for the pack.
Available
Bremick through bolt (stud) anchor is a metric anchor with a mechanical galvanised finish. There are 11 items: M10 to M20 diameter, 80mm to 200mm long. Pack quantities range from 10 to 20.
Where this product is used
- Through-fixing plates, brackets and frames to concrete, fitting the anchor through the fixture into the drilled hole
- Structural fixings to concrete, where the anchor is chosen to the engineer's specification
- Base plates, posts and rails on slabs and walls
- Jobs where the part is unsuited to hot dip galvanising and a mechanically applied zinc coating is specified
- The 11 items cover diameters from M10 to M20 and lengths from 80mm to 200mm
Features
- 11 items: M10 to M20 diameter, 80mm to 200mm long
- Metric thread
- Mechanical galvanised finish
- Pack quantity shown for each item
- Mechanical galvanising (peen plated zinc) for parts unsuited to hot dip
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bremick |
| Product type | Anchor |
| Sizes | M10 to M20 diameter, 80mm to 200mm long |
| Thread | Metric |
| Finish | Mechanical galvanised |
| Diameter | M10, M12, M16, M20 |
| Length | 80 to 200mm |
| Supplied as | Pack of 20, Box of 20, Box of 10 |
Choosing the finish
A mechanically galvanised finish is a peen plated zinc coating, applied mechanically rather than by dipping or electroplating. Because there is no acid or electroplating step, there is no hydrogen embrittlement from the process.
It is normally used for parts that are unsuited to hot dip, such as springs and thin sections.
Installation
Fit the anchor through the fixture into the drilled hole and tighten it.
Choosing the right option
Choose the diameter and the overall length together, using the table. Hole size, embedment depth, base material limits and load ratings are not for these items, so check Bremick installation data before specifying. Pack quantity differs by size and is shown in the table.
See also: 316 stainless steel through bolt anchor, metric flat round washer, hot dip galvanised, metric hex nut, Grade 8 hot dip galvanised.
| Option | Part number | SKU |
|---|---|---|
| M10 / 90mm | A0096358 | |
| M12 / 80mm | A0096363 | |
| M12 / 100mm | A0096366 | |
| M12 / 140mm | A0096372 | |
| M16 / 105mm | A0096375 | |
| M16 / 125mm | A0096378 | |
| M16 / 140mm | A0096381 | |
| M16 / 190mm | A0096384 | |
| M20 / 125mm | A0096387 | |
| M20 / 160mm | A0096390 | |
| M20 / 200mm | A0096392 |
