Gates Miscellaneous V And Round Belt - Heavy

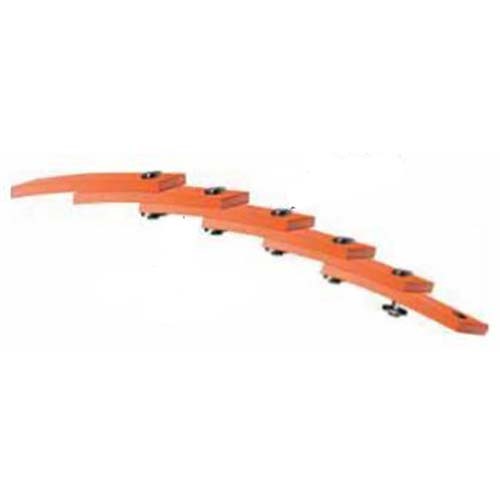

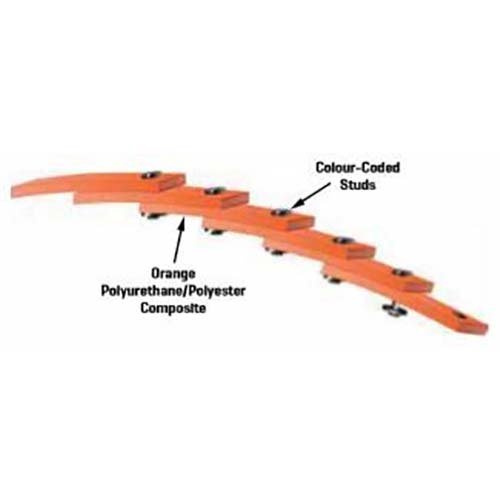

Nu-T-Link is a jointed V-belt sold by length — cut to size and connect links to form the required belt length. It eliminates the need to dismantle the drive for belt changes, making it ideal for applications where bearing removal is impractical. Available in B section.

Where this product is used

Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:

• Industrial drive systems — air compressors, pumps, fans, blowers and generators across manufacturing and utilities
• Agricultural machinery including combine harvesters, grain augers, irrigation pumps and crop-processing equipment
• HVAC and refrigeration plant — chillers, cooling towers, air handlers and refrigeration compressors

Key specifications

Selecting the right option

Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. For Micro-V (K/J section) automotive belts, match by OE reference or by rib count and pitch length. When in doubt, call AIMS — power transmission is our specialty and we'll confirm the right cross-reference.
