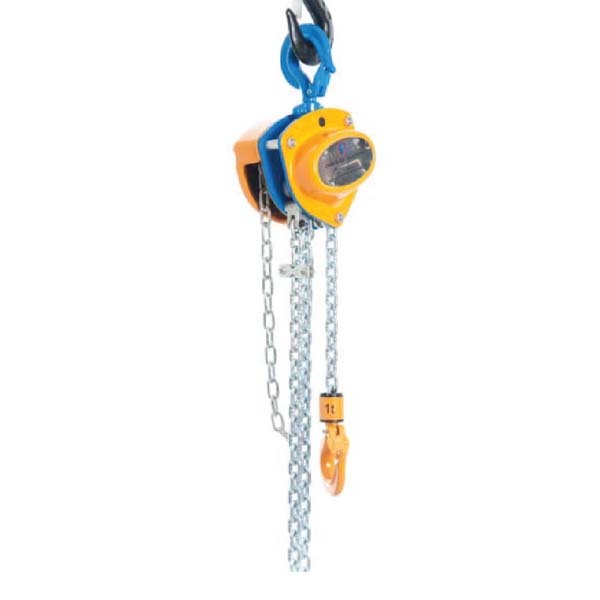

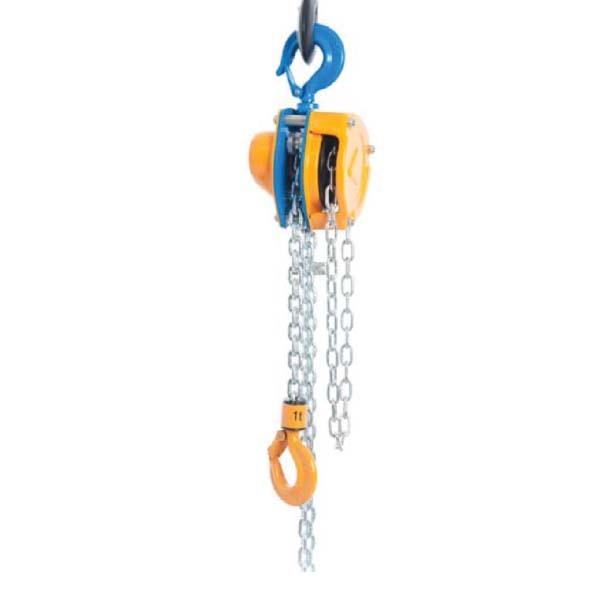

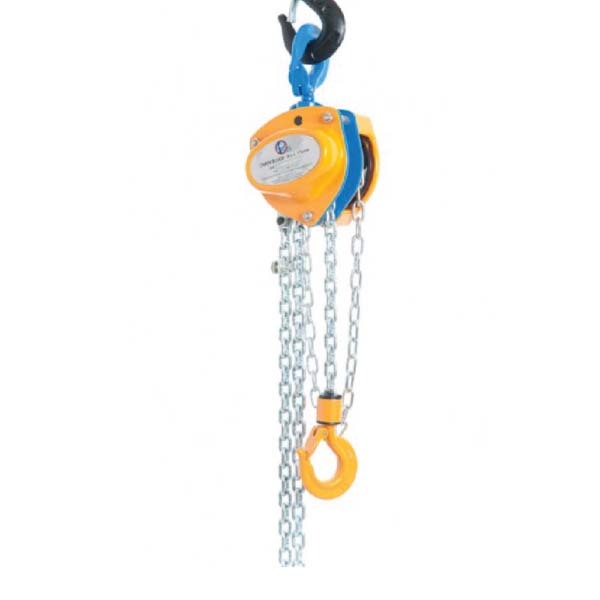

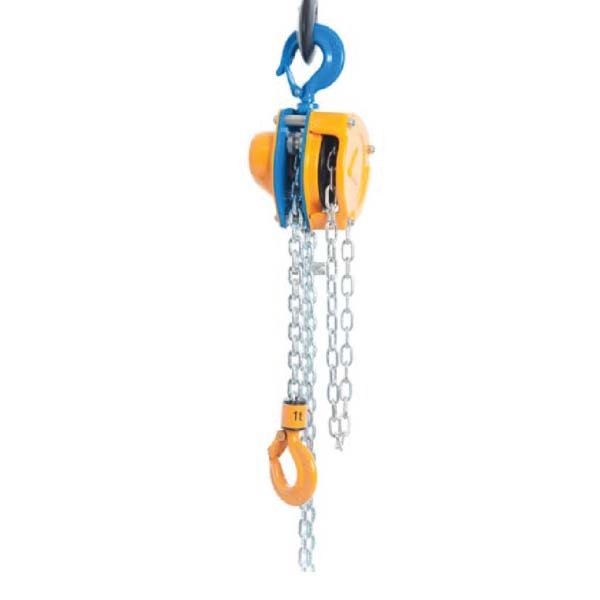

Pacific Hoists chain block with overload protection PCB303L

The Pacific Chain Block with Overload Protection is the overload protection version of the Pacific Chain Block, with part numbers that end in L. Range from 0.5 tonne to 10 tonne and names a patented overload limiting device as an option (excluding 250kg capacity). There are 6 models from 0.5 tonne to 5 tonne, with a lift of 3m or 6m.

For each model the range gives the rated capacity, lift, hand chain drop, chain falls, load chain size and net weight. The 3m lift models have a 2m hand chain drop and the 6m lift model a 5m drop. This range against Australian Standard AS1418.2.

Where this product is used

• Lifting loads where an overload limiting device is wanted on a manual chain block
• Workshop, maintenance and installation lifts from a beam, gantry or trolley
• Sites where several people operate the same hoist

Features

• Overload protection version of the Pacific Chain Block
• Lift of 3m or 6m, with a 2m or 5m hand chain drop
• European zinc-plated grade 80 load chain
• Brake lockout protection
• Encapsulated needle and side plate bearings

Key specifications

Choosing the right option

Choose the capacity on your heaviest lift and keep the load inside the rated capacity on the specifications, then choose the lift for the height you need. An overload limiting device does not replace the rated capacity: plan the lift to the rated capacity, not to the point where the device acts. Lifting equipment must be used within its rated capacity, inspected before each use, and selected and used in line with your site lifting procedure and the applicable standards and regulations. Do not use it to lift or lower people. If you are unsure what suits your lift, speak to a qualified rigger before ordering.

See also: Pacific chain blocks, Pacific lever blocks with overload protection, Challenger chain blocks Generation II.
