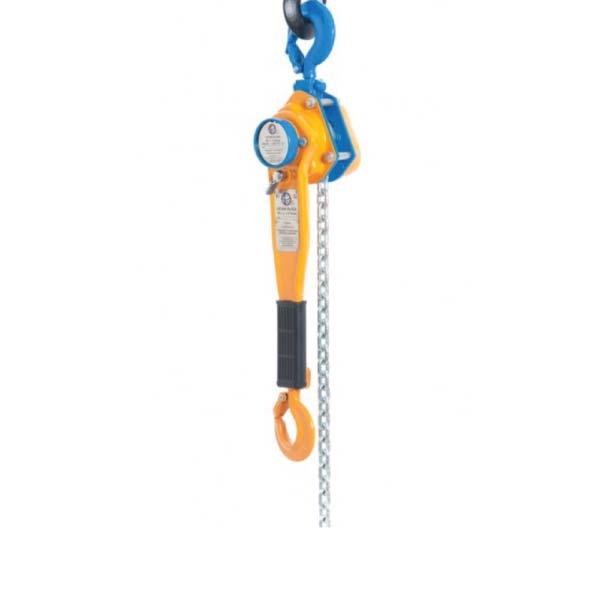

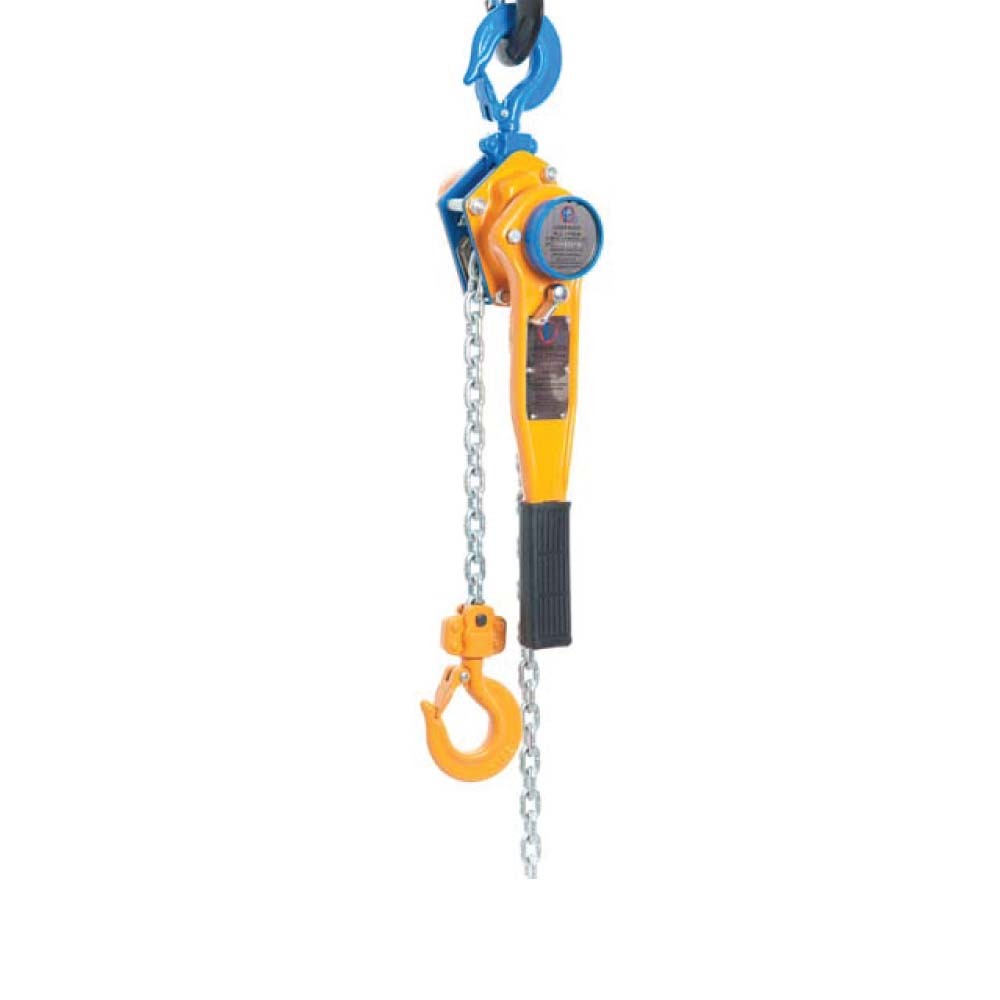

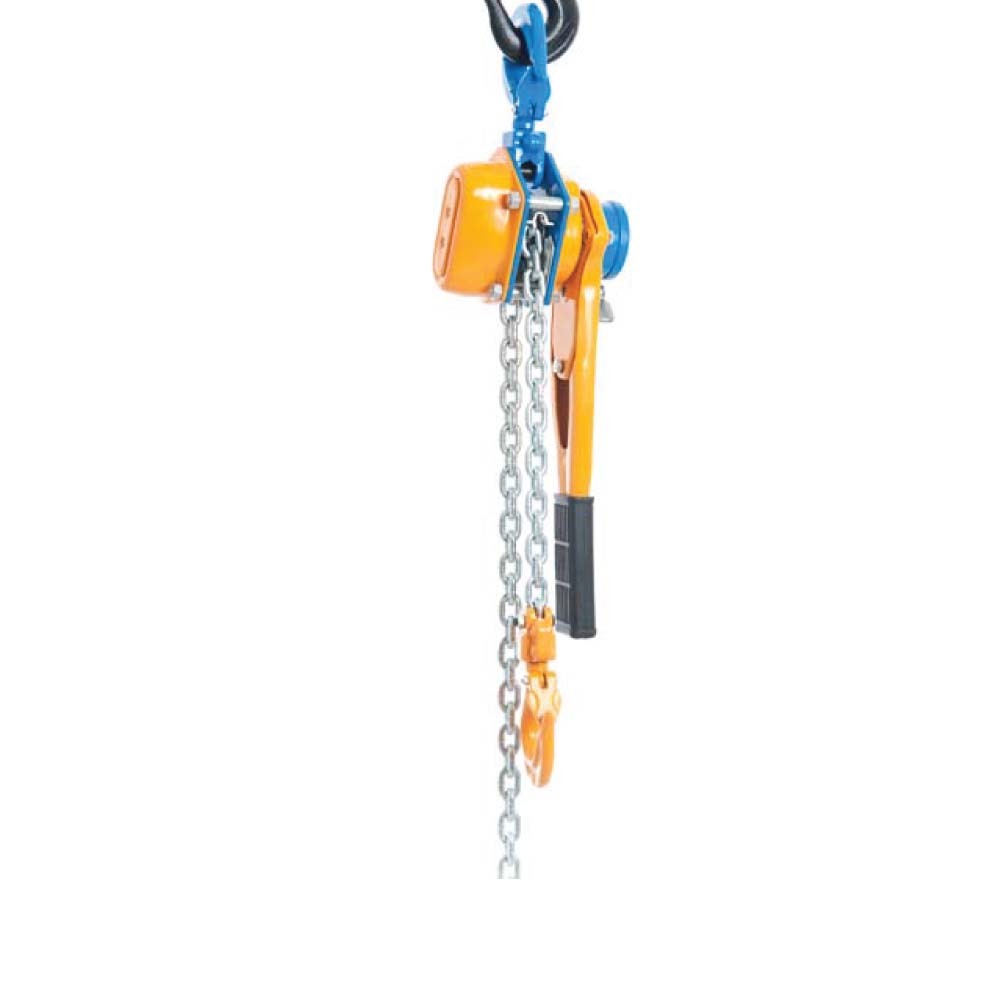

Pacific Hoists lever block with overload protection PLB305L

The Pacific Lever Block with Overload Protection is the overload protection version of the Pacific Lever Block, with part numbers that end in L. It under an Overload Protection table in capacities from 0.5 tonne to 6.3 tonne, each with a 1.5m lift.

For each model the range gives the rated capacity, lift, chain falls, load chain size and net weight. The 6.3 tonne model runs on 2 chain falls and the others on 1. This range against Australian Standard AS1418.2.

Where this product is used

• Lifting loads where an overload protection version of a lever block is wanted
• Fitting, assembly and repair work on machinery and fabrications
• Short lifts where there is no power

Features

• Overload protection version of the Pacific Lever Block
• Rated capacity from 0.5 tonne to 6.3 tonne
• 1.5m lift on every model
• European zinc-plated grade 80 load chain
• Free wheel and non-free wheel capabilities
• Brake lockout protection

Key specifications

Choosing the right option

Choose the capacity on your heaviest lift and keep the load inside the rated capacity on the specifications. Overload protection does not replace the rated capacity: plan the lift to the rated capacity. Every model has a 1.5m lift, so check that is enough for the job. Lifting equipment must be used within its rated capacity, inspected before each use, and selected and used in line with your site lifting procedure and the applicable standards and regulations. Do not use it to lift or lower people. If you are unsure what suits your lift, speak to a qualified rigger before ordering.
