Descriptions

• Cost-effective solution for a variety of applications
• Can be used for both pulling and lifting purposes
• Comply with the Australian Standards AS1418.2 when correctly fitted with the approved wire rope and fittings.

**Note: Flat Strap can be put on the BHW125N. It is designed to hold 23m of 4.8mm wire rope.**

Specifications

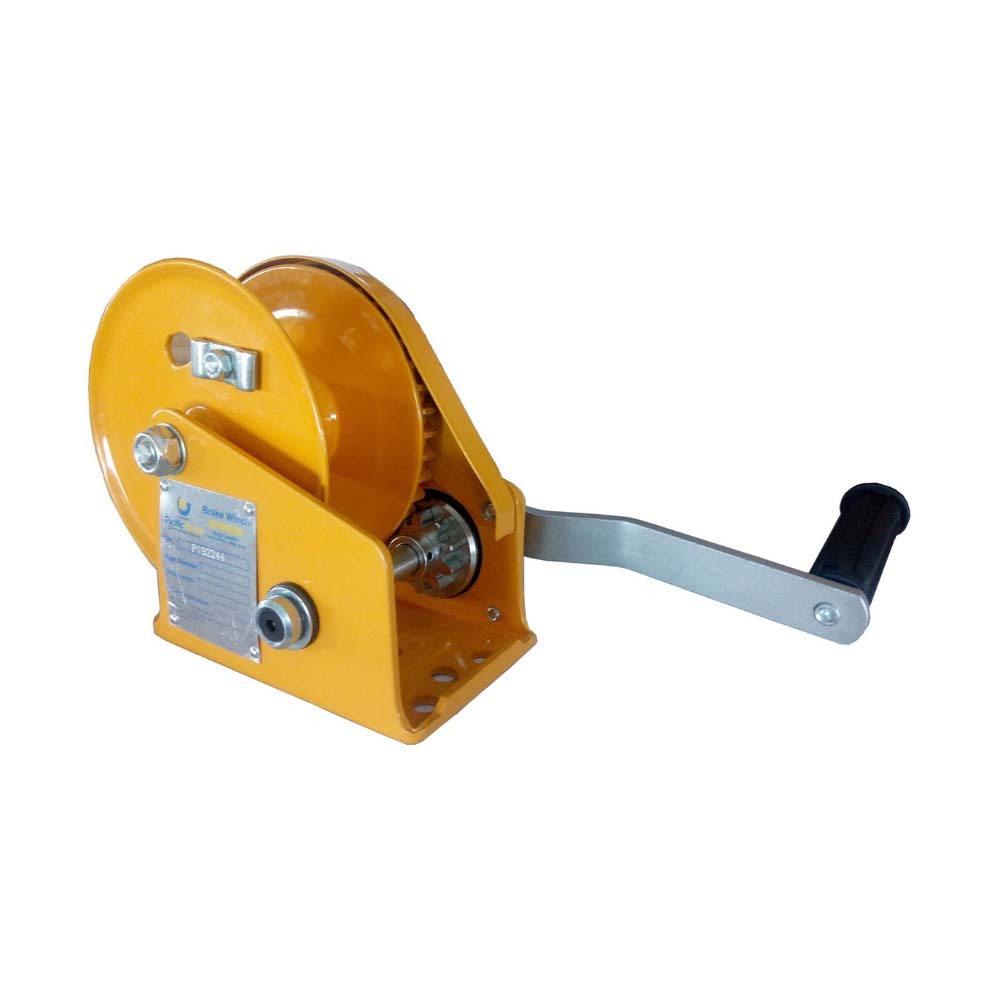

• Model: BHW125N
• Pulling Capacity: 545 kg
• Lifting Capacity:270
• Hand Force Required:18.4 kg
• Standard Finish: Powder-coated
• Gear Ratio: 4.2 : 1
• Handle Length: 208 mm
• Hub Diameter:Ø48 mm
• Cable Diameter: Ø5.0 mm x 23 m
• Net. Weight: 3.7
• Noiseless: YES

Features

• Positive Weston-style brake will hold the load in any position
• Compact, lightweight, and rugged construction
• Mechanical components enclosed for protection and safety
• Powder-coated to provide corrosion resistance to metallic parts made of steel, zinc, and aluminium alloys or brass.
• Rope to drum fixing clamp provided
• Heat-treated gears
• Strong removable handles
• High precision construction minimises gear noise.
