AIMS Industrial stocks 19 manual winches across four genuinely different jobs: braked hand winches for controlled pulling and lifting, a stainless boat winch for marine and corrosion-prone environments, wire rope winches for general hoisting, and Austlift truck ratchet winches for securing loads on trucks and trailers. If you searched "manual winch" you might be after any of these — a trailer winch for the boat ramp, a hand winch for the workshop, or a ratchet winch to tie down a load for transport. This range covers all four, from established brands Pacific Hoists, Challenger, Beaver and Austlift. We've put together a Manual Winch Guide: Hand Winch Types, Capacity Sizing & Selection for Australian Workshops if you'd like more detail before you buy.
Quick reference: winch type, capacity and application
| Winch type | Brand(s) | Capacity range | Typical application |
|---|---|---|---|
| Hand winch with brake | Pacific Hoists, Challenger, Beaver | 363–1,200 kg pulling / up to 600 kg lifting | Trailer loading, workshop pulling, controlled lifting where the load must be held in position |
| Hand winch, non-brake (worm drive) | Beaver | 900 kg pulling | General pulling only — not rated to hold a suspended load |
| Stainless boat/marine winch | Pacific Hoists | 545–1,200 kg pulling / 270–600 kg lifting | Boat trailers, marine and wash-down environments — 304 stainless steel with a marine-coated, corrosion-resistant finish |
| Wire rope winch (worm drive) | Austlift | 800–3,200 kg WLL | General hoisting — mining, construction, industrial and domestic lifting jobs |
| Truck ratchet winch — bare (clip-on, slide-on, gate) | Austlift | 3,000 kg LC | Load restraint on flat-bed and curtain-side trucks and trailers, cab rack systems |
| Truck ratchet winch — with webbing strap | Austlift | 2,000–2,500 kg lashing capacity | Quick-fit tie-down and load restraint, strap included |
Hand winches with brake — trailer and general-duty lifting
Pacific Hoists, Challenger and Beaver all supply braked hand winches, and between them they cover the bulk of trailer and workshop pulling jobs. The Pacific Manual Hand Winch with Brake and Challenger Manual Hand Winch with Brake are both available across the same four capacities — 370/180 kg, 545/270 kg, 820/410 kg and 1,200/600 kg (pulling/lifting) — giving a straightforward like-for-like choice between the two brands at each capacity point. The Pacific Noiseless Hand Winch with Brake (model BHW125N, 545 kg pulling / 270 kg lifting) uses a quieter gear train for noise-sensitive settings. Beaver Brake Hand Winches are supplied in 363 kg, 820 kg and 1,200 kg pulling capacities.
All of these use a positive Weston-style (or load-actuated) brake that holds the load in whatever position the handle is released, and a powder-coated finish for general corrosion resistance. Where correctly fitted with approved wire rope and fittings, the Pacific and Challenger braked hand winches are stated by the manufacturer to comply with AS 1418.2, the Australian Standard covering serial hoists and winches.
Non-brake winch — pulling only
The Beaver Non-Brake Winch Worm Drive (900 kg pull) is the one product in this range without a load-holding brake. It's a genuine option for straight horizontal pulling jobs, but it will not safely hold a suspended or lifted load in position — see "brake vs non-brake" below before you specify it for anything other than pulling.
Stainless boat winch — marine and corrosive environments
The Stainless Steel Braked Hand Winch / Boat Winch from Pacific Hoists is built in 304 stainless steel with a marine-coated, corrosion-resistant finish, and carries the same positive Weston-style brake as the standard hand winch range. It's available at 545/270 kg, 820/410 kg and 1,200/600 kg (pulling/lifting) and suits boat ramps, wash-down areas and other environments where a standard powder-coated winch would corrode.
Wire rope winches — general hoisting
The Austlift Wire Rope Winch is stocked in both aluminium and steel body construction, each available at 800 kg, 1,600 kg and 3,200 kg working load limit (WLL). These are worm-drive hoisting winches for general lifting and hauling — mining, construction, industrial and domestic applications — rather than trailer or load-restraint winches.

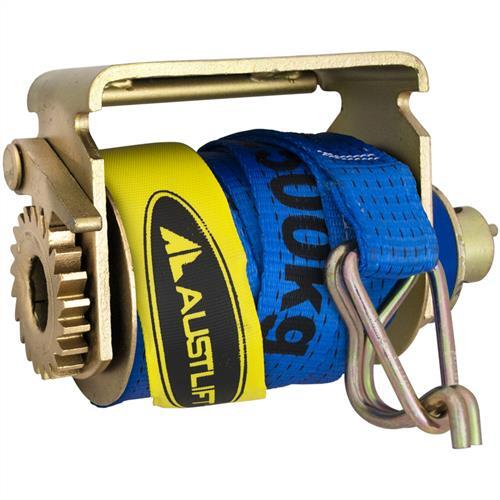

Austlift truck ratchet winches — load restraint
The largest part of this range — 11 of the 19 products — is Austlift's truck winch line, built for restraining loads on trucks and trailers rather than for lifting. They're rated in LC (Lashing Capacity), not WLL, and are supplied as bare winches or with a webbing strap already fitted.
Mounting style is the main thing that varies:
- Clip-on types (Ratchet and Standard) fit to truck tie rails and are supplied bare or with a strap.
- Slide-on types fit into a winch track, including a Slide On With Double Bosses variant and versions supplied bare or with webbing.
- Gate type winches mount to the underbody of the trailer for lashing truck gates, bare or with a 50 mm x 5 m x 2.5T strap.
- Ratchet webbing winches are supplied as a complete strap-and-winch assembly, including standalone webbing options rated to 2,500 kg lashing capacity, built for AS/NZS 4380 transport tie-down service.
Bare winches are rated 3,000 kg LC; the various strap and webbing assemblies are rated between 2,000 kg and 2,500 kg lashing capacity depending on the strap fitted. If you already run a fleet with a particular mounting standard (clip rail, slide track or gate), match that first — the ratchet mechanism itself is common across the range.
How to choose
Brake or non-brake
This is the genuine safety decision in the range. A braked hand winch holds the load in position the moment you stop cranking — the Weston-style or load-actuated brake engages automatically. A non-brake winch (the Beaver worm drive winch in this range) will not do that; it's built for pulling along a surface, not for holding a lifted or suspended load. If there's any chance the load needs to be held, or the winch is used on an incline where an uncontrolled load could run back, specify a braked winch.
Match capacity to the load
Hand and boat winches in this range are rated separately for pulling and lifting — the lifting figure is always the lower of the two, and it's the one that matters if the load will be lifted rather than dragged. Truck ratchet winches are rated by LC (Lashing Capacity) rather than WLL, which is the figure used for load restraint calculations under the load restraint guidelines for the relevant vehicle and load. Don't substitute a pulling/WLL figure for an LC figure or vice versa — they aren't measuring the same thing.
Corrosion environment
A standard powder-coated hand winch is fine for a dry workshop or shed. For a boat ramp, wash-down bay, or anywhere the winch will see salt water or regular hosing down, the 304 stainless, marine-coated boat winch is the one built for that environment — a powder-coated finish will corrode faster in sustained salt exposure.
Mounting and configuration
For the Austlift truck winch range, mounting style (clip-on, slide-on or gate) needs to match your existing tie rail, winch track or trailer underbody fitting — check what your truck or trailer is set up for before ordering, and choose bare or strap-included depending on whether you already have compliant webbing on hand.
Brands in this range
Pacific Hoists — the standard, noiseless and stainless boat winch. Challenger — a like-for-like braked hand winch alternative to the Pacific standard range. Beaver — braked and non-brake hand winches. Austlift — wire rope winches and the full truck ratchet winch and webbing range.
Related categories
See also Load Restraints for the wider tie-down and lashing range, Rigging & Lifting Slings for load-attachment hardware, Chain Blocks and Hoists for overhead lifting alternatives, Electric Winches where mains or battery power is available, Winch Accessories for wire rope, straps and fittings, and the Lifting Equipment category overall. Browse by brand: Pacific Hoists, Austlift, Beaver, Challenger.
Frequently asked questions
What's the difference between a hand winch with brake and without a brake?
A braked hand winch has a mechanism (typically a Weston-style or load-actuated brake) that automatically holds the load in position when you stop turning the handle. A non-brake winch, like the Beaver worm drive model in this range, has no such holding mechanism and is intended for pulling rather than holding a suspended load. If the load needs to be held mid-lift, or used on any kind of incline, choose a braked model.
What capacity manual winch do I need?
Check both the pulling and lifting capacities on hand and boat winches — they're rated differently, and the lifting figure is lower. For truck ratchet winches, size by the load's rated Lashing Capacity (LC) requirement rather than a general weight figure. If you're unsure, our team can help you match a winch to your specific load — contact us.
Can I use a hand winch for lifting, not just pulling?
The braked hand and boat winches in this range are rated for both pulling and lifting, with a separate (lower) lifting capacity figure for each model — check the specific model's lifting rating before using it to lift a load. The non-brake Beaver worm drive winch is rated for pulling only.
Which winch suits a boat trailer in a marine environment?
The Pacific Hoists Stainless Steel Braked Hand Winch / Boat Winch is built in 304 stainless steel with a marine-coated, corrosion-resistant finish specifically for this kind of environment. A standard powder-coated hand winch will work but is more exposed to corrosion from regular salt water and wash-down contact.
What's the difference between clip-on, slide-on and gate-type truck winches?
These describe how the winch mounts to the vehicle. Clip-on winches fit to truck tie rails, slide-on winches fit into a winch track, and gate-type winches mount to the underbody of the trailer for lashing gates. Match the type to how your truck or trailer is already set up to receive a winch.
Do Austlift truck winches meet Australian load restraint requirements?
The webbing strap assemblies in the Austlift truck winch range are built for AS/NZS 4380 transport tie-down service. As with any load restraint equipment, the overall restraint system needs to be assessed against the load, vehicle and relevant load restraint guidelines for your specific transport task — the winch and strap are one part of that system.
What's the difference between LC and WLL?
WLL (Working Load Limit) is the rated capacity for lifting or pulling equipment. LC (Lashing Capacity) is the rating used for load restraint webbing and ratchet assemblies, and reflects a different calculation basis to WLL. Truck ratchet winches in this range are rated in LC; hand and boat winches are rated in WLL (shown here as pulling and lifting capacity in kg).
Are these winches suited to industrial or trade use, or general/recreational use as well?
Both — this range genuinely spans both. The braked hand winches and stainless boat winch cover general trade, workshop and boat trailer use. The Austlift wire rope winches suit industrial hoisting in mining, construction and general industrial settings. The Austlift truck ratchet winches are aimed at commercial transport load restraint. Pick based on the application above rather than assuming the whole range is one or the other.
