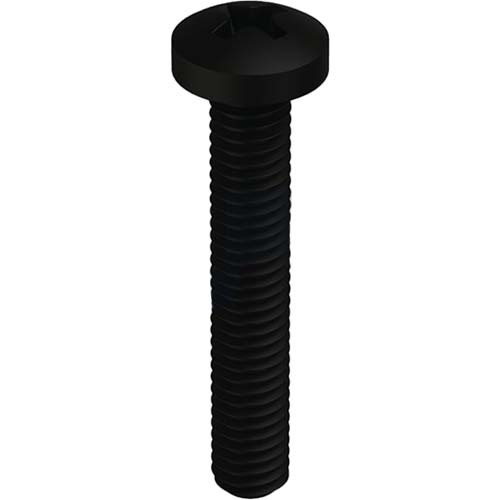

Hobson Pan Phillips Metal Thread Screw, M3 / 6
The price shown is for the box.
Available
The Hobson pan Phillips metal thread screw range has 20 items in sizes M3 to M6 and lengths 6 to 30mm (pan head, Phillips drive, mild steel, zinc black finish). Ph Dr means Phillips drive (cross recess) and MTS means metal thread screw. Every item is supplied as a box of 200.
Where this product is used
- Fitting into a tapped hole or with a nut of the same thread
- Replacing a screw of the same size, length and head style
- Assembling parts with a metric thread screw of the required size and length
Features
- 20 items: sizes M3 to M6, lengths 6 to 30mm
- Pan head, Phillips drive, mild steel, zinc black finish
- Thread pitch for each size
- Supplied as a box of 200
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | M3 to M6 |
| Lengths | 6 to 30mm |
| Head | Pan |
| Drive | Phillips |
| Material | Mild steel |
| Finish | Zinc black |
| Supplied as | Box of 200 |
Choosing the right option
A pan head has a low rounded top and sits above the surface.
Related screws: Hobson Pan Phillips Metal Thread Screw, Mild Steel, Zinc Plated, M2 to M8, 4 to 100mm, Hobson Sems Spring/Flat Washer Pan Phillips Metal Thread Screw, Zinc, M3 to M6, 6 to 30mm and Hobson Countersunk Phillips Metal Thread (Machine) Screw, Mild Steel, Zinc, M2 to M8, 4 to 100mm.
| Option | Part number | SKU |
|---|---|---|
| M3 / 6 | MSMSVPPM030006 | A0137530 |
| M3 / 8 | MSMSVPPM030008 | A0137531 |
| M3 / 10 | MSMSVPPM030010 | A0137532 |
| M3 / 12 | MSMSVPPM030012 | A0137533 |
| M4 / 6 | MSMSVPPM040006 | A0137534 |
| M4 / 8 | MSMSVPPM040008 | A0137535 |
| M4 / 10 | MSMSVPPM040010 | A0137536 |
| M4 / 12 | MSMSVPPM040012 | A0137537 |
| M4 / 16 | MSMSVPPM040016 | A0137538 |
| M4 / 20 | MSMSVPPM040020 | A0137539 |
| M4 / 25 | MSMSVPPM040025 | A0137540 |
| M5 / 12 | MSMSVPPM050012 | A0137541 |
| M5 / 16 | MSMSVPPM050016 | A0137542 |
| M5 / 20 | MSMSVPPM050020 | A0137543 |
| M5 / 25 | MSMSVPPM050025 | A0137544 |
| M6 / 12 | MSMSVPPM060012 | A0137545 |
| M6 / 16 | MSMSVPPM060016 | A0137546 |
| M6 / 20 | MSMSVPPM060020 | A0137547 |
| M6 / 25 | MSMSVPPM060025 | A0137548 |
| M6 / 30 | MSMSVPPM060030 | A0137549 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson Pan Phillips Metal Thread Screw, Mild Steel, Zinc Black, M3 to M6, 6 to 30mm: M3 / 6
SKU: A0137530 | Model: MSMSVPPM030006
Hobson MSMSVPPM030006: M3 x 6mm pan Phillips metal thread screw, mild steel, zinc black. Box of 200. Pitch 0.5mm.
