Pferd Ball Shape Burr KUD 1210/6 TOUGH, 12 x 10 mm, 6 mm Shank
Available

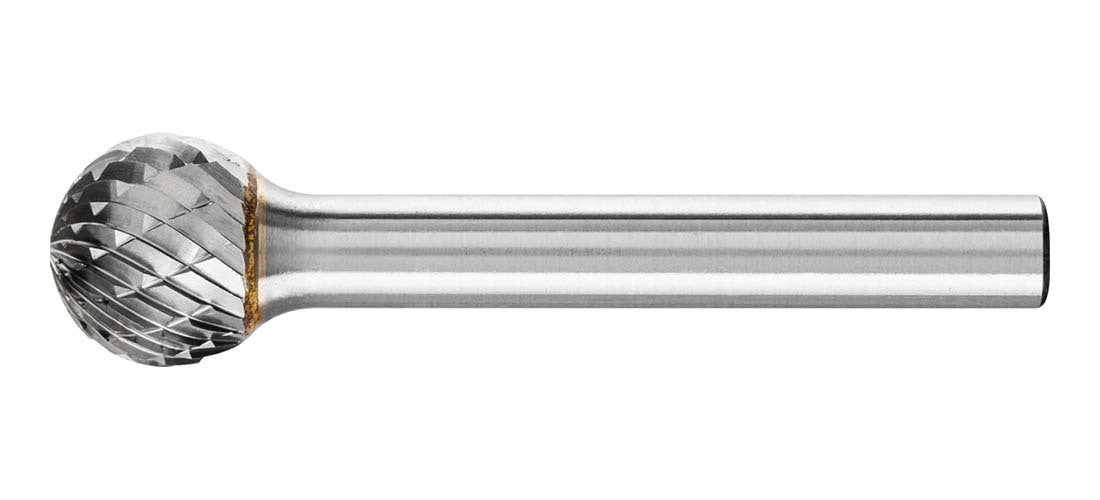

The Pferd ball shape burr KUD 1210/6 TOUGH (item 21000056) is a shank-mounted tungsten carbide burr with a 6mm shank. The head is 12 x 10mm (diameter x cut length). Overall length is 51mm.
The this KUD family is a ball-shaped burr for tough applications in dockyards, foundries and steel construction. It has the TOUGH cut for cast iron and steel below 54 HRC; it is impact-resistant, minimizes tooth chipping and breakage, and can also be used at low rotational speeds and under impact loads.
Where this product is used
- Tough applications in dockyards, foundries and steel construction
- Cast iron and steel below 54 HRC

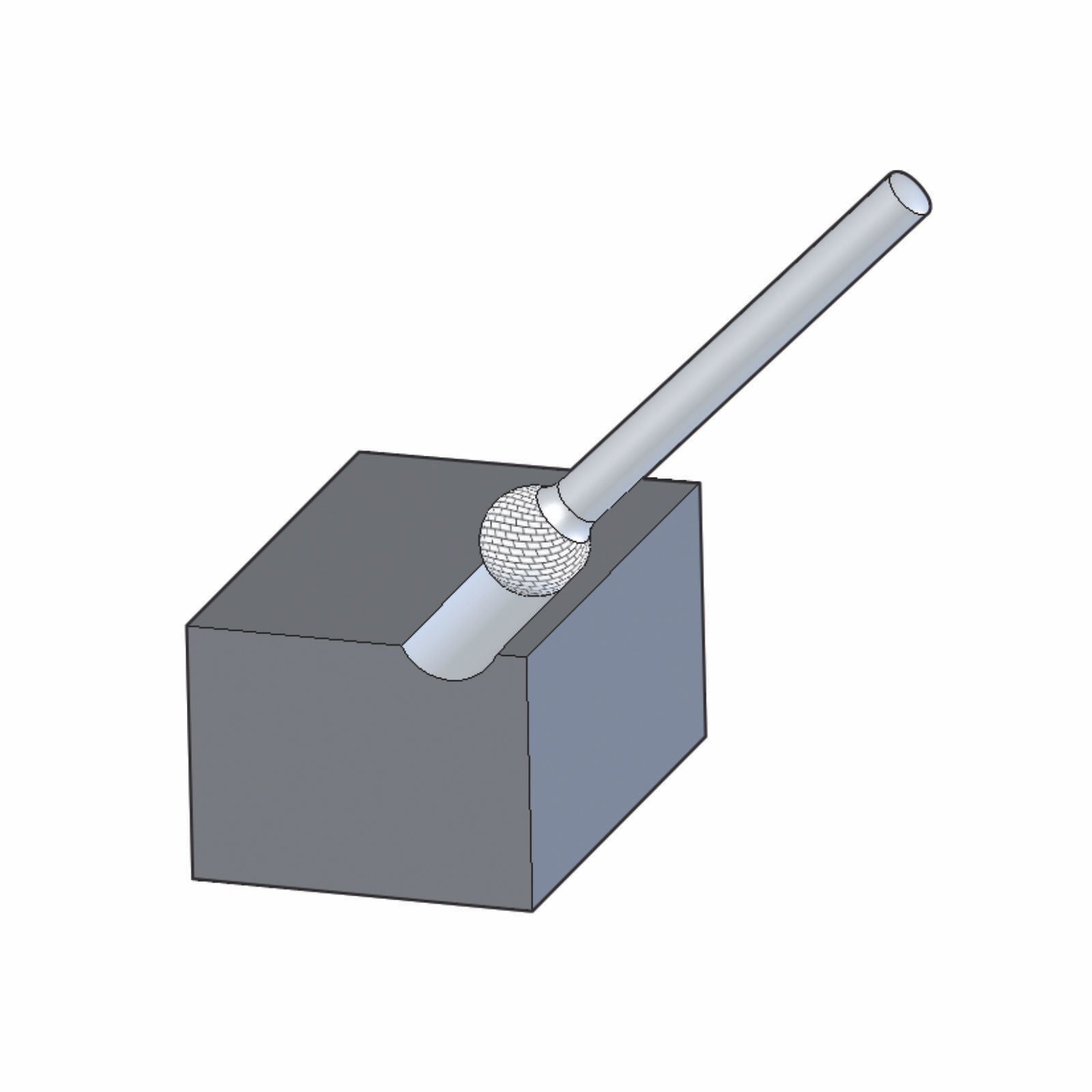

- Deburring, chamfering, milling out for build-up welding preparation, machining weld seams and machining contours, and cleaning cast material
Features
- 12mm head diameter, 10mm cut length
- 6mm shank, 51mm overall length
- Impact-resistant TOUGH cut
- Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity
- Can also be used at low rotational speeds
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Material | Tungsten carbide |
| Cut | TOUGH |
| Shank diameter (d2) | 6mm |
| Designation | KUD 1210/6 TOUGH |
| Head diameter (d1) | 12mm |
| Cut length (l2) | 10mm |
| Overall length (l1) | 51mm |
Choosing the right option
Match the shank to your tool: item 21000056 has a 6mm shank. Never exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and observe the recommended rotational speed, especially with long shanks.
Related burrs: Pferd Ball Shape Burr KUD 1210/6,35 TOUGH, 6.35mm Shank (21722244), Pferd Ball Shape Burr KUD 0807/6 NON-FERROUS, 8 x 7mm, 6mm Shank (21112696), Pferd Ball Shape Burr KUD, MX NCC Cut, 6 x 5 to 16 x 14mm, 6mm Shank.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Ball Shape Burr KUD 1210/6 TOUGH, 12 x 10 mm, 6 mm Shank
SKU: A0178418 | Model: 21000056
Pferd 21000056: ball shape burr KUD 1210/6 TOUGH. Designation: KUD 1210/6 TOUGH. Head diameter (d1): 12mm.
