Pferd ball shape burr, 1/4 x 3/16"
Available
It has 3 Pferd ball shape burrs: shank-mounted tungsten carbide burrs with the MX NCC cut, all on a 6.35mm shank. Head sizes (diameter x cut length) run from 1/4 x 3/16 to 5/8 x 9/16".
Where this product is used

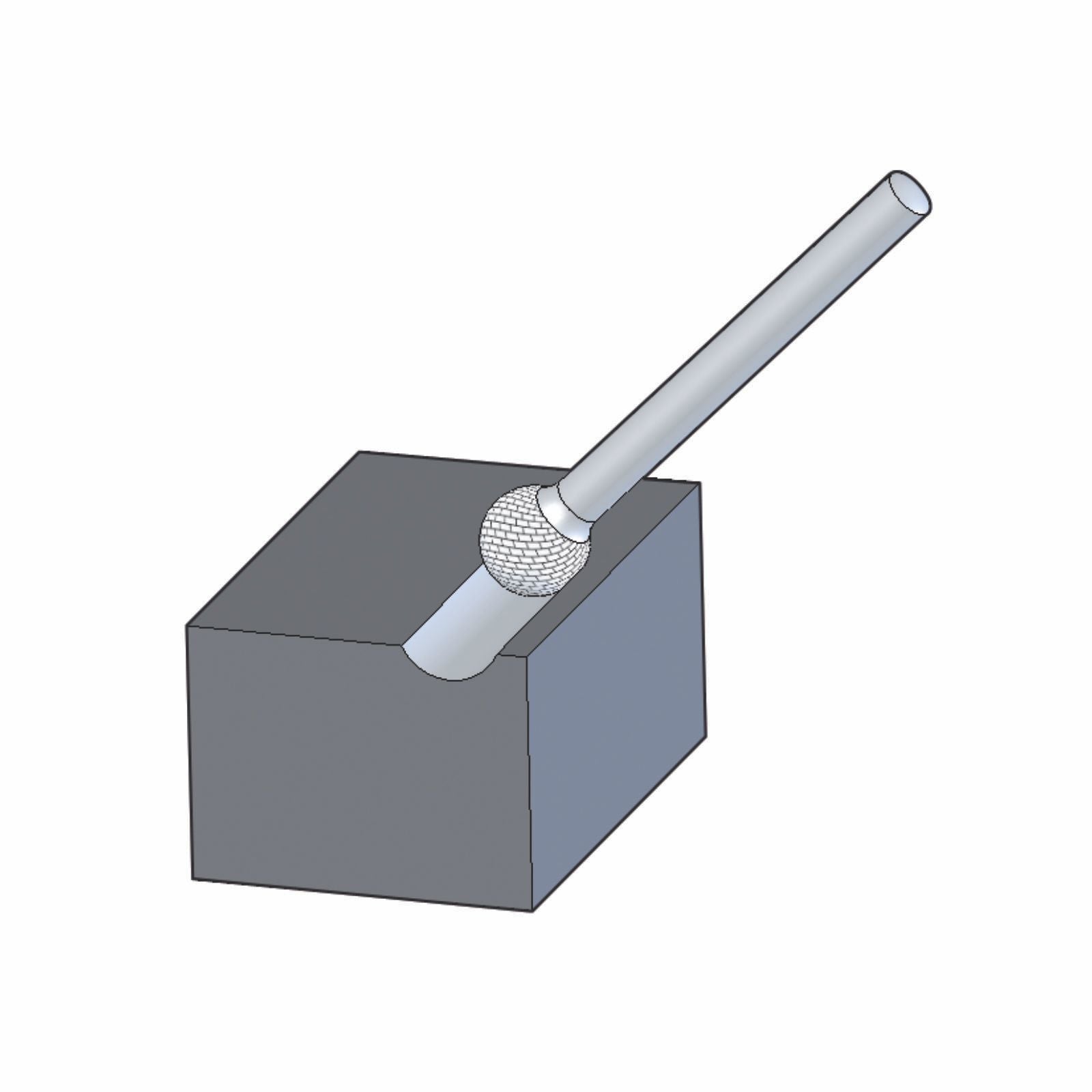

- Deburring, chamfering and machining contours with a shank-mounted burr
- Deburring, chamfering, milling out for build-up welding preparation, machining weld seams and machining contours, and cleaning cast material
Features
- Head sizes (diameter x cut length) (some items not listed): 1/4 x 3/16 to 5/8 x 9/16"
- 6.35mm shank

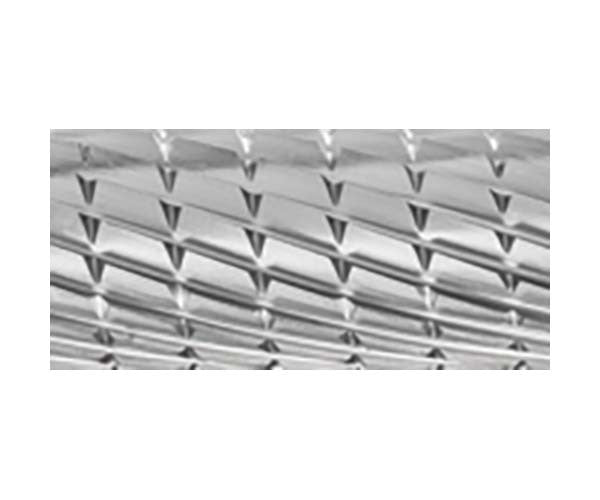

- NEW COMBI CUT, MX NCC
- Material: Tungsten carbide
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Material | Tungsten carbide |
| Cut | MX NCC |
| Shank diameter (d2) | 6.35mm |
Choosing the right option
Match the shank to your tool: this item has a 6.35mm shank. Choose the head size for the feature you are cutting. Never exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and observe the recommended rotational speed, especially with long shanks.
Related burrs: Pferd Ball Shape Burr KUD 9,5x7,9x6,35 MX NCC, 6.35mm Shank (26007214), Pferd Ball Shape Burr KUD, MX NCC Cut, 6 x 5 to 16 x 14mm, 6mm Shank, Pferd Ball Shape Burr KUD, ALLROUND Cut, 1/4 x 3/16 to 1/2 x 7/16", 6.35mm Shank.
| Option | Part number | SKU |
|---|---|---|

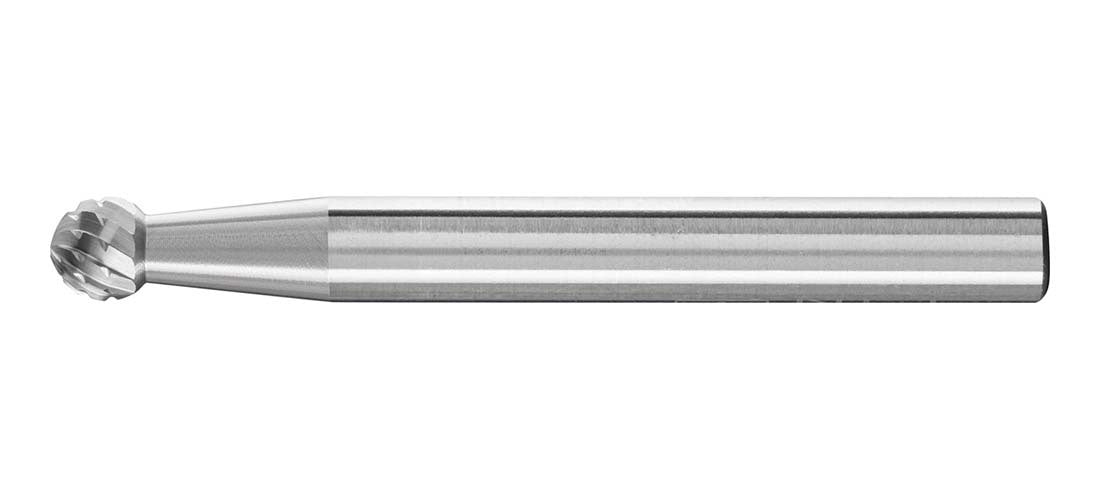

| 1/4 x 3/16" | 26007651 | A0178569 |

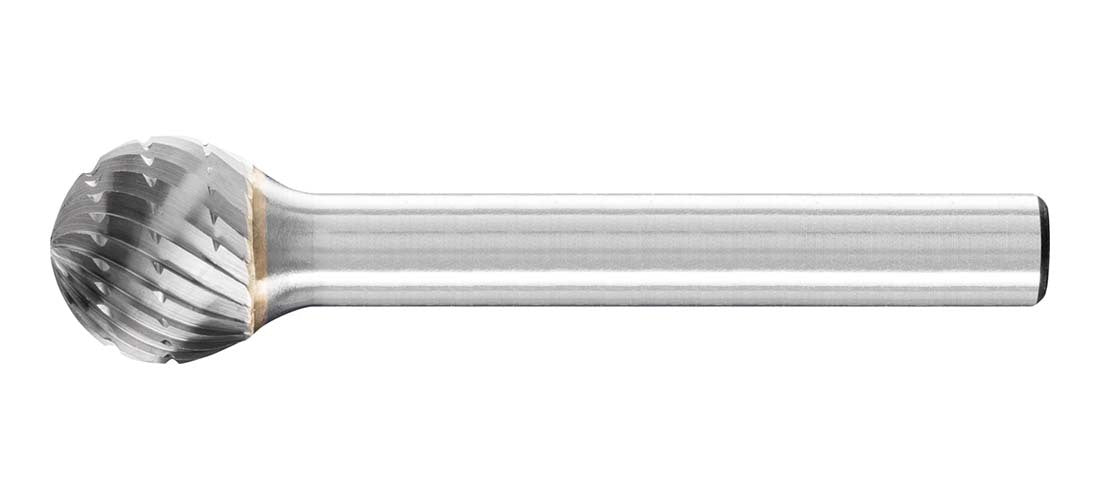

| 1/2 x 7/16" | 26007652 | A0178570 |

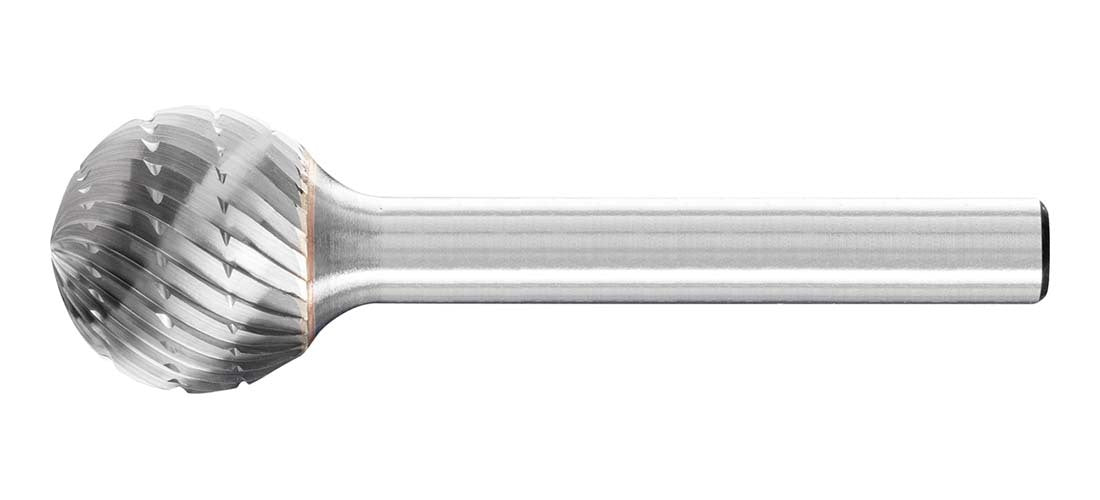

| 5/8 x 9/16" | 26007653 | A0178571 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
1/4 x 3/16"
Model Number: 26007651
-
1/2 x 7/16"
Model Number: 26007652
-
5/8 x 9/16"
Model Number: 26007653
