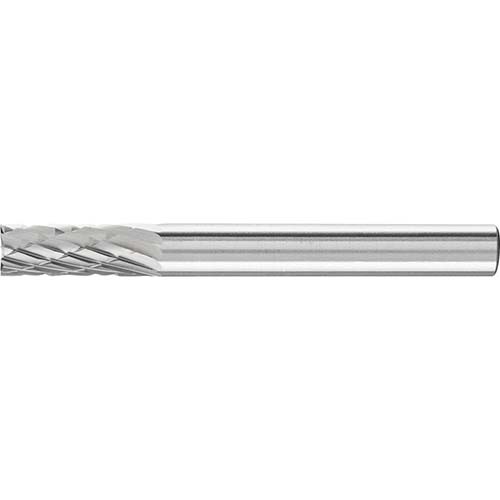

Pferd 21100226 ZYAS Cylindrical End Cut Burr 6 x 16 mm, Cut 3 PLUS, 6 mm Shank

The Pferd ZYAS Cylindrical End Cut Burr is a tungsten carbide burr in cut 3 PLUS (listed in the store as C3 Plus) with a 6 mm shank (manufacturer-stated). This page lists 6 items, with head sizes of 6 x 16 to 16 x 25 mm (diameter x cut length) and total lengths of 55 to 65 mm.

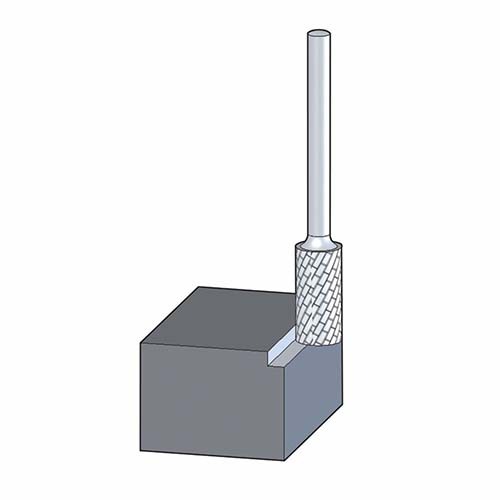

The catalogue describes the ZYAS as a cylindrical burr according to DIN 8032 with circumferential and end cut, with the cut conforming to DIN 8033, for general use on all materials (manufacturer-stated).

Cut 3 PLUS is similar to the 3 cut but has a cross cut. The catalogue lists it for machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys, with high stock removal and good surfaces (manufacturer-stated).

Special features listed in the catalogue: long tool life and a high surface finish; reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity (manufacturer-stated).

Where this product is used

• Machining steel, cast iron and stainless steel (INOX) (manufacturer-stated)
• Machining nickel-based alloys and titanium alloys (manufacturer-stated)
• General use on all materials (manufacturer-stated)

Features

• Cut 3 PLUS: cross cut, similar to the 3 cut, with high stock removal and good surfaces (manufacturer-stated)
• Circumferential cut plus end cut, 6 mm shank (manufacturer-stated)
• Head sizes 6 x 16 to 16 x 25 mm; total length 55 to 65 mm (manufacturer-stated)
• Long tool life and a high surface finish (manufacturer-stated)
• Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity (manufacturer-stated)

Common specifications

Key specifications

Each item number is a separate head size; all share the 6 mm shank and cut 3 PLUS.

Selecting the right option

Pick the head size for the job: d1 is the burr diameter and l2 the cut length, and the table shows the total length l1 of each item. Check that your tool holds a 6 mm shank. The catalogue lists cut 5 for fine machining and the INOX cut for stainless steel (INOX) (manufacturer-stated). Do not exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and do not use a damaged burr (manufacturer-stated).
