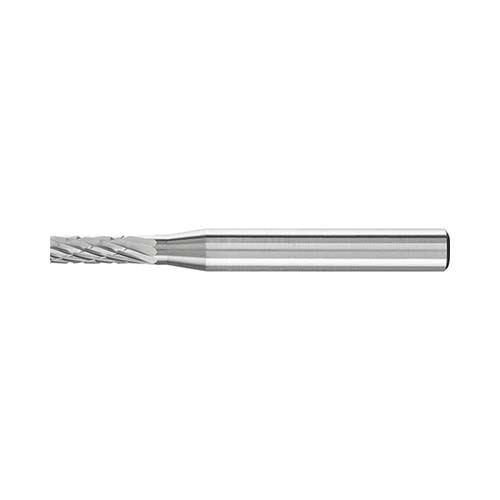

Pferd ZYA burr, 4 x 13mm / 55mm

The Pferd ZYA Cylindrical Burr is a tungsten carbide burr in cut 3 PLUS with a 6mm shank. The range has 8 options, with head sizes of 4 x 13 to 16 x 25mm (diameter x cut length) and total lengths of 53 to 65mm.

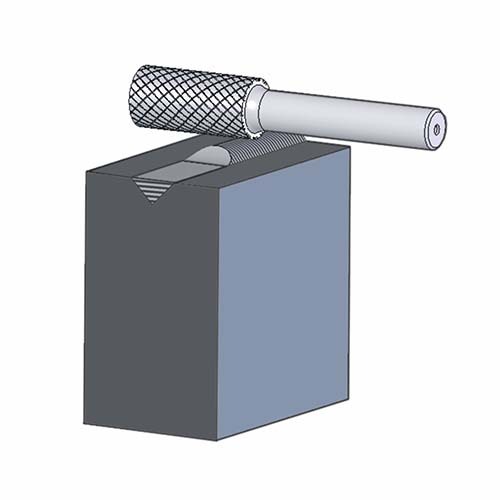

The ZYA is a cylindrical burr to DIN 8032, with the cut conforming to DIN 8033, for general use on all materials. Cut 3 PLUS is similar to the 3 cut but has a cross cut. It has it for machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys, with high stock removal and good surfaces. Key features: long tool life and a high surface finish, reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity.

Where this product is used

• Machining steel, cast iron and stainless steel (INOX)
• Machining nickel-based alloys and titanium alloys
• General use on all materials

Features

• Cut 3 PLUS: cross cut, similar to the 3 cut, with high stock removal and good surfaces
• Cylindrical head without end cut, 6mm shank
• Head sizes 4 x 13 to 16 x 25mm, total length 53 to 65mm
• Long tool life and a high surface finish
• Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity

Key specifications

Choosing the right option

Check that your tool holds a 6mm shank. It has cut 5 for fine machining and the INOX cut for stainless steel (INOX). Do not exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and do not use a damaged burr.

Same cut in other shapes: Pferd ZYAS Cylindrical End Cut Burr, Cut 3 PLUS, 6mm Shank, 6 x 16 to 16 x 25mm, Pferd WRC Cylindrical Radius End Burr, Cut 3 PLUS, 6mm Shank, 6 x 16 to 16 x 25mm.

Same shape in other cuts: Pferd ZYA Cylindrical Burr, Cut 5, 6mm Shank, 6 x 16 and 12 x 25mm, Pferd ZYA Cylindrical Burr, INOX Cut, 6mm Shank, 6 x 16 and 12 x 25mm.
