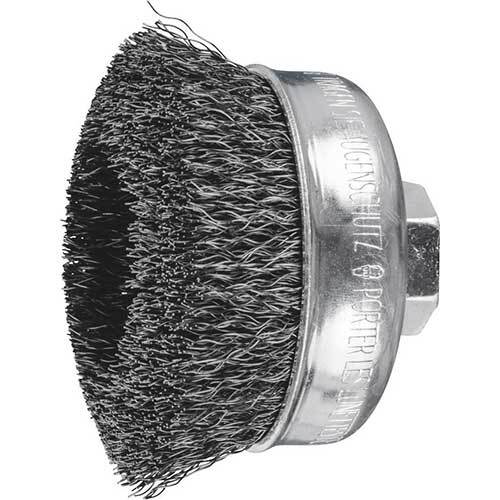

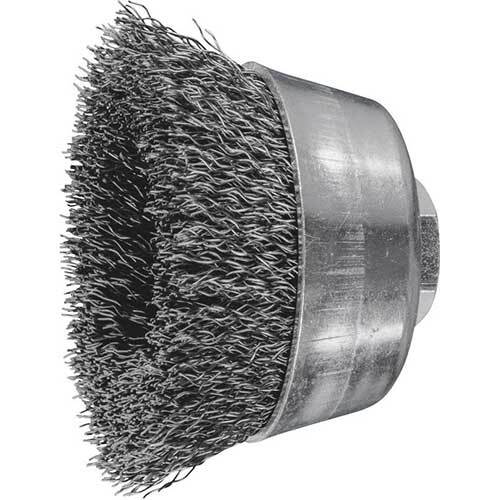

Pferd crimped Cup Brush TBU, 100mm
Available
The Pferd TBU is a crimped cup brush. It has an M14 x 2 thread and steel wire filament. The range has 3 options: 60mm, 75mm and 100mm (brush diameter).
The TBU is suited to medium-duty brushing such as deburring, cleaning and derusting on large surfaces. Filament diameter is 0.30mm. Optimum and maximum speeds depend on the size: maximum speeds run from 8,500 to 12,500rpm, so check the figures for the item you choose. Steel wire: high tensile and bending fatigue strength, temperature resistance up to 300°C. Key features: highly flexible, so it adjusts to the workpiece contour, creates fine surfaces.
Where this product is used

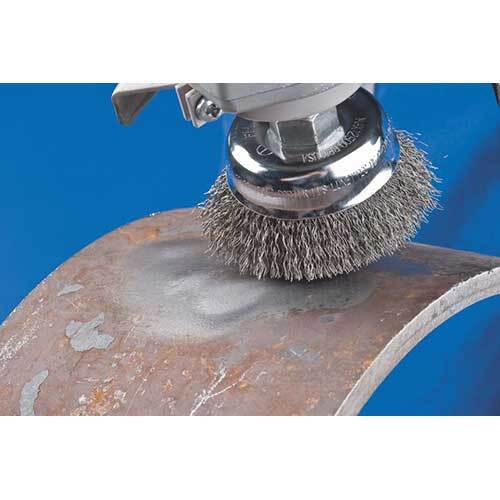

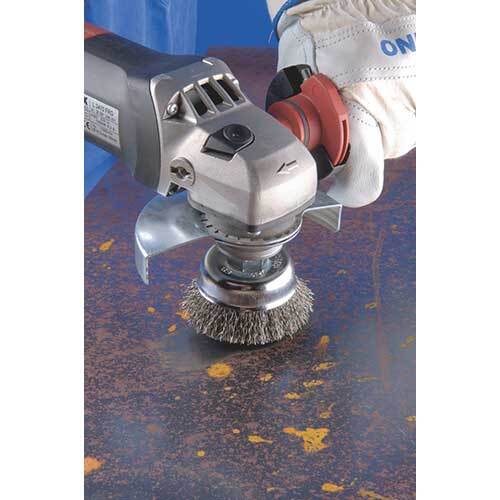

- Suited to medium-duty brushing such as deburring, cleaning and derusting on large surfaces
- Steel wire is highly suitable for steel and cast iron, and suitable for plastics
Features
- Brush diameters 60mm, 75mm and 100mm
- M14 x 2 thread
- Steel wire (ST), filament diameter 0.30mm
- Highly flexible, so it adjusts to the workpiece contour
- Creates fine surfaces
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Brush diameters | 60mm, 75mm and 100mm |
| Thread (DT) | M14 x 2 |
| Filament diameter (DF) | 0.30mm |
| Filament material | Steel wire (ST) |
Choosing the right option
Check that the M14 x 2 thread matches your tool. The recommended cutting speed is 15 to 45 m/s for cup brushes, depending on the application and below the maximum permitted speed. Steel wire is rated not suitable for stainless steel, aluminium or non-ferrous metals. Never exceed the maximum permitted speed marked on the brush, its label and .
The same TBU cup brush in stainless steel wire: Pferd Crimped Cup Brush TBU, Stainless Steel Wire 0.30mm, M14 Thread, 60, 75 and 100mm.
| Option | Part number | SKU |
|---|---|---|
| 60mm | 43468902 | A0155399 |
| 75mm | 43469001 | A0155400 |
| 100mm | 43469102 | A0155401 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Crimped Cup Brush TBU, Steel Wire 0.30 mm, M14 Thread, 60, 75 and 100 mm: 100 mm
SKU: A0155401 | Model: 43469102
Pferd 43469102: steel wire crimped cup brush, 100mm, M14 x 2 thread, 0.30mm filament. Optimum speed 4,300 to 6,400rpm.
