Pferd 43704002 Pencil Brush PBU 15 x 16 mm, 6 mm Shank, Stainless Steel Wire 0.35 mm
Available
The Pferd PBU is a crimped pencil (end) brush. It has a 6 mm shank and stainless steel wire filament. This page lists 2 items: 15 x 16 mm and 20 x 22 mm (brush diameter and cup diameter).
The catalogue describes the PBU as suited to light brushing such as deburring, cleaning and derusting (manufacturer-stated).
Filament diameters are 0.35 mm and 0.50 mm. Optimum speed is 7,200 to 11,700 rpm and maximum speed is 18,000 rpm (manufacturer-stated).
Stainless steel wire: no corroding residues left on the workpiece, temperature resistance up to 450°C (manufacturer-stated).

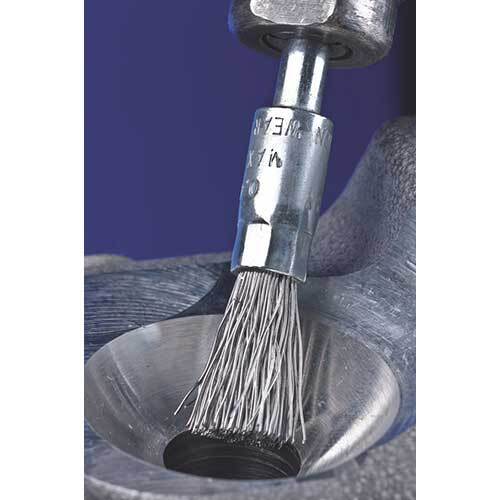

Special features listed in the catalogue: the wires spread out on rotation, which gives access to hard-to-reach areas such as drilled holes and cavities; creates fine surfaces (manufacturer-stated).
Where this product is used
- Suited to light brushing such as deburring, cleaning and derusting (manufacturer-stated)
- Stainless steel wire is rated highly suitable for stainless steel and aluminium, and suitable for steel, soft non-ferrous metals (brass, copper, zinc) and hard non-ferrous metals (manufacturer-stated)
- Access to drilled holes and cavities (manufacturer-stated)
Features
- Brush diameter and cup diameter: 15 x 16 mm and 20 x 22 mm
- 6 mm shank (manufacturer-stated)
- Stainless steel wire (INOX), filament diameters 0.35 mm and 0.50 mm (manufacturer-stated)
- Optimum speed 7,200 to 11,700 rpm, maximum speed 18,000 rpm (manufacturer-stated)
- The wires spread out on rotation, which gives access to hard-to-reach areas such as drilled holes and cavities (manufacturer-stated)
- Creates fine surfaces (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Sizes (D x DC) | 15 x 16 mm and 20 x 22 mm |
| Shank diameter (DS) | 6 mm (manufacturer-stated) |
| Filament material | Stainless steel wire (INOX) (manufacturer-stated) |
| Optimum speed | 7,200 to 11,700 rpm (manufacturer-stated) |
| Maximum speed | 18,000 rpm (manufacturer-stated) |
Key specifications
| Model | Designation | Brush diameter (D) | Cup diameter (DC) | Filament length (LT) | Overall length (L) | Filament diameter (DF) |
|---|---|---|---|---|---|---|

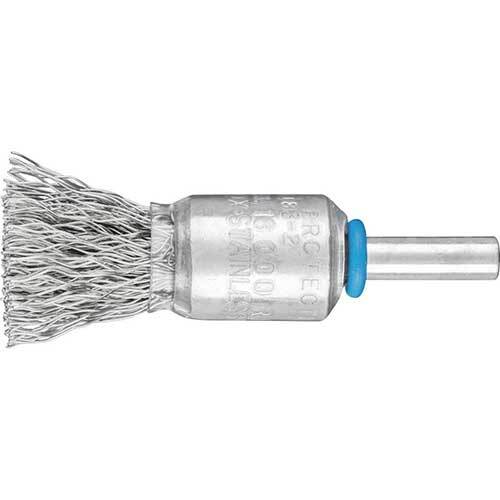

| 43704002 | POS PBU 1516/6 INOX 0,35 | 15 mm | 16 mm | 22 mm (manufacturer-stated) | 65 mm (manufacturer-stated) | 0.35 mm (manufacturer-stated) |

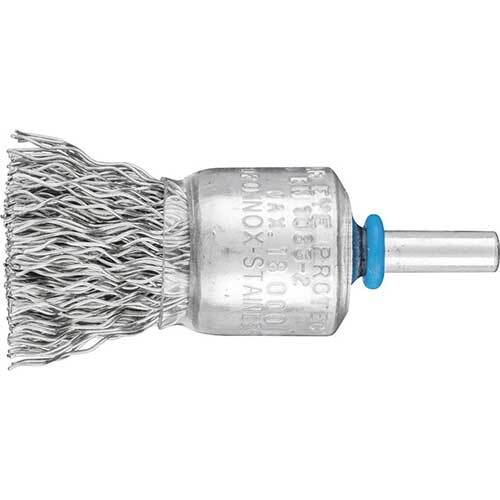

| 43704006 | POS PBU 2022/6 INOX 0,50 | 20 mm | 22 mm (manufacturer-stated) | 25 mm (manufacturer-stated) | 70 mm (manufacturer-stated) | 0.50 mm (manufacturer-stated) |
Each item number is a separate size.
Selecting the right option
Match the 6 mm shank to your chuck or collet. The catalogue gives a recommended cutting speed of 5 to 15 m/s for end brushes, depending on the application and below the maximum permitted speed (manufacturer-stated). Stainless steel wire is rated not suitable for cast iron or plastics (manufacturer-stated). Never exceed the maximum permitted speed marked on the brush, its label and in the catalogue (manufacturer-stated).
Related products
The same POS item in steel wire, and the wider PBU stainless steel range: Pferd Pencil Brush PBU (POS), Steel Wire, 6 mm Shank, 15 x 16 and 20 x 22 mm and Pferd Pencil Brush PBU, Stainless Steel Wire, 6 mm Shank, 10 x 10 to 30 x 29 mm.
