Pferd pencil Brush PBU, 10 x 10mm
Available
The Pferd PBU is a crimped pencil (end) brush. It has a 6mm shank and stainless steel wire filament. The range has 5 options: 10 x 10mm, 13 x 12mm, 15 x 16mm, 20 x 22mm and 30 x 29mm (brush diameter and cup diameter).
The PBU is suited to light brushing such as deburring, cleaning and derusting. Filament diameters are 0.35mm and 0.50mm. Optimum and maximum speeds depend on the size: maximum speeds run from 15,000 to 20,000rpm, so check the figures for the item you choose. Stainless steel wire: no corroding residues left on the workpiece, temperature resistance up to 450°C. Key features: the wires spread out on rotation, which gives access to hard-to-reach areas such as drilled holes and cavities, creates fine surfaces.
Where this product is used
- Suited to light brushing such as deburring, cleaning and derusting
- Stainless steel wire is highly suitable for stainless steel and aluminium, and suitable for steel, soft non-ferrous metals (brass, copper, zinc) and hard non-ferrous metals
- Access to drilled holes and cavities
Features
- Brush diameter and cup diameter: 10 x 10mm, 13 x 12mm, 15 x 16mm, 20 x 22mm and 30 x 29mm
- 6mm shank
- Stainless steel wire (INOX), filament diameters 0.35mm and 0.50mm

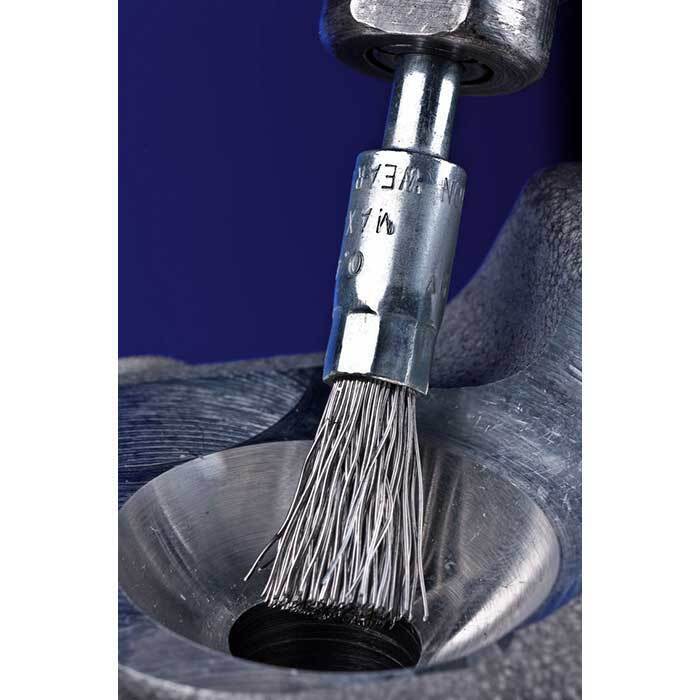

- The wires spread out on rotation, which gives access to hard-to-reach areas such as drilled holes and cavities
- Creates fine surfaces
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Sizes (D x DC) | 10 x 10mm, 13 x 12mm, 15 x 16mm, 20 x 22mm and 30 x 29mm |
| Shank diameter (DS) | 6mm |
| Filament material | Stainless steel wire (INOX) |
Choosing the right option
Match the 6mm shank to your chuck or collet. The recommended cutting speed is 5 to 15 m/s for end brushes, depending on the application and below the maximum permitted speed. Stainless steel wire is rated not suitable for cast iron or plastics. Never exceed the maximum permitted speed marked on the brush, its label and .
The same PBU range in steel wire, and the POS items: Pferd Pencil Brush PBU, Steel Wire, 6mm Shank, 10 x 10 to 30 x 29mm, 0.20 to 0.50mm, Pferd Pencil Brush PBU (POS), Stainless Steel Wire, 6mm Shank, 15 x 16 and 20 x 22mm.
| Option | Part number | SKU |
|---|---|---|

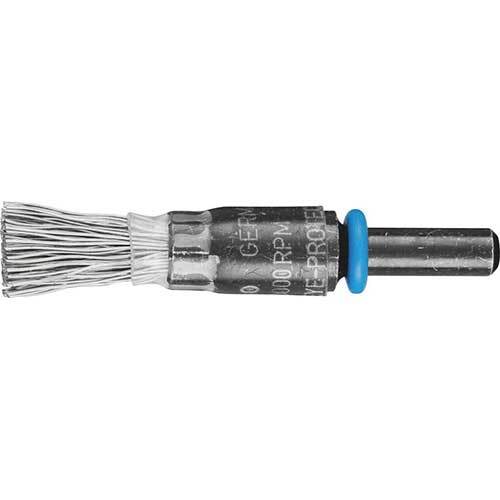

| 10 x 10mm | 43204003 | A0160938 |

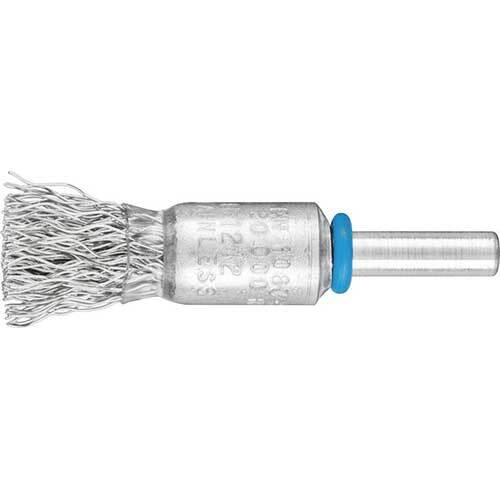

| 12 x 12mm | 43204103 | A0160939 |

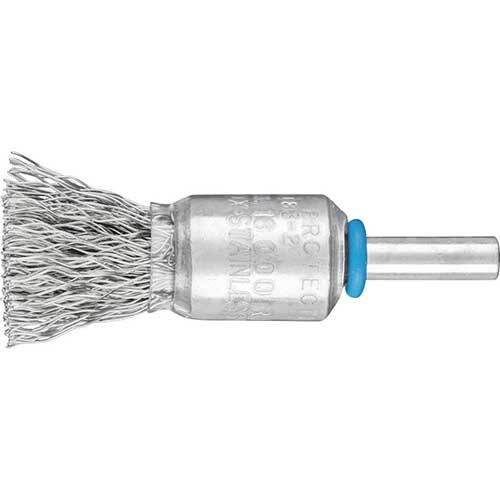

| 15 x 16mm | 43203003 | A0160940 |

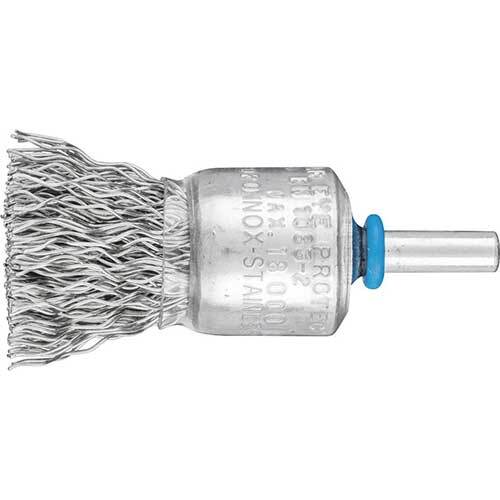

| 20 x 20mm | 43202003 | A0160941 |

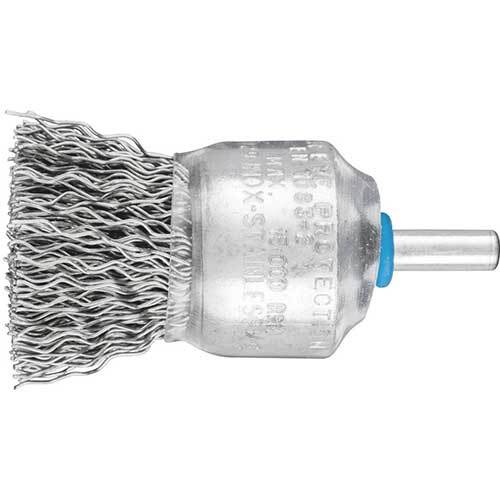

| 30 x 29mm | 43201003 | A0160942 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Pencil Brush PBU, Stainless Steel Wire, 6 mm Shank, 10 x 10 to 30 x 29 mm: 10 x 10 mm
SKU: A0160938 | Model: 43204003
Pferd 43204003: pencil Brush PBU, 10 x 10mm. Designation: PBU 1010/6 INOX 0,35. Brush diameter (D): 10mm.
