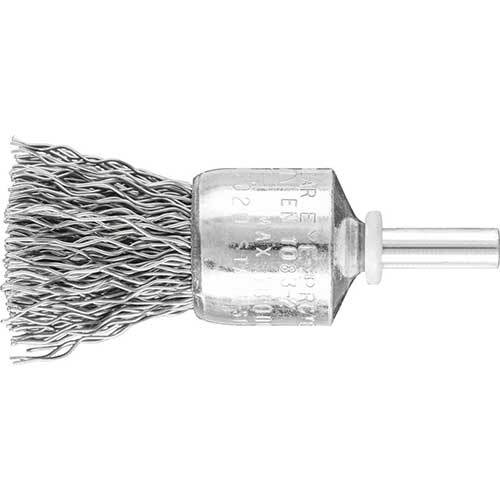

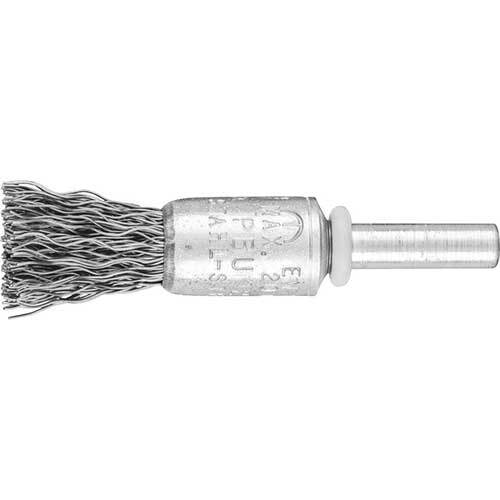

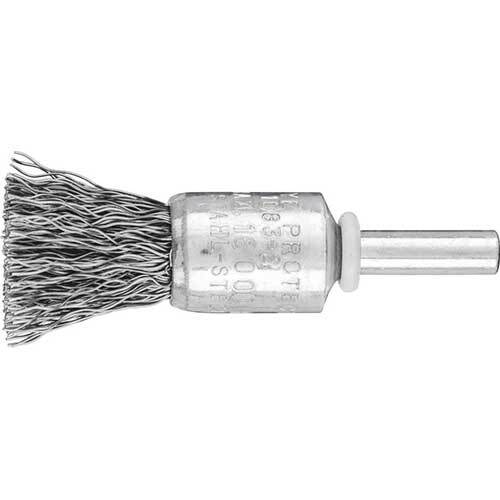

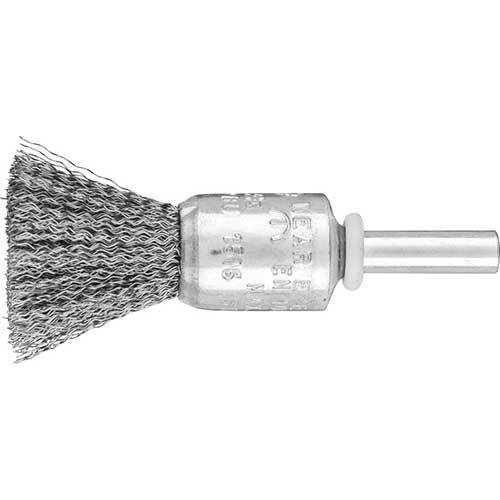

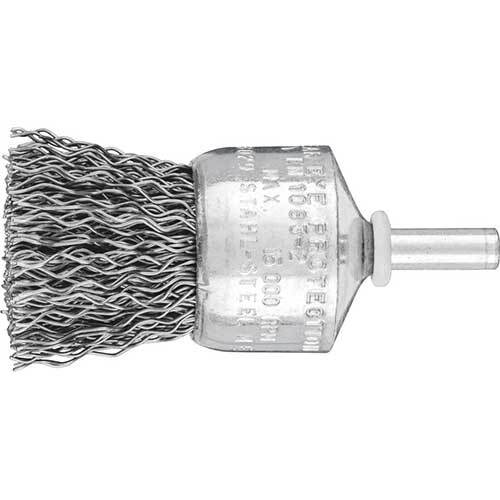

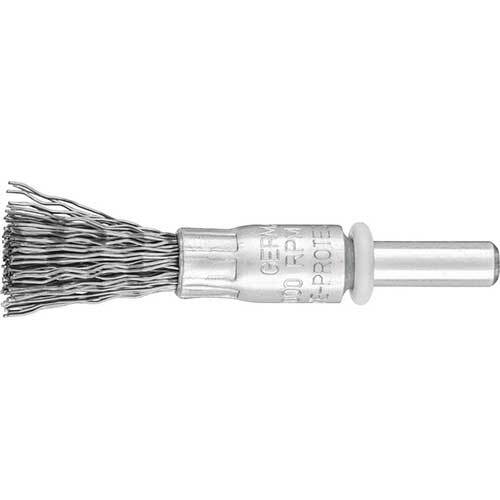

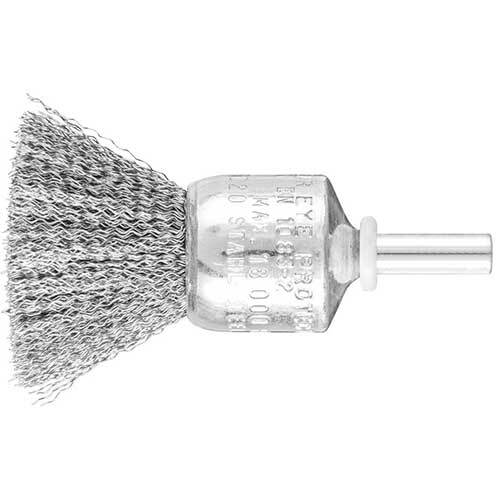

Pferd pencil Brush PBU, 10 x 10mm / 0.35mm

The Pferd PBU is a crimped pencil (end) brush. It has a 6mm shank and steel wire filament. The range has 7 options in 5 sizes: 10 x 10mm, 13 x 12mm, 15 x 16mm, 20 x 22mm and 30 x 29mm (brush diameter and cup diameter). Some sizes come in more than one filament diameter.

The PBU is suited to light brushing such as deburring, cleaning and derusting. Filament diameters are 0.20mm, 0.35mm and 0.50mm. Optimum and maximum speeds depend on the size: maximum speeds run from 15,000 to 20,000rpm, so check the figures for the item you choose. Steel wire: high tensile and bending fatigue strength, temperature resistance up to 300°C. Key features: the wires spread out on rotation, which gives access to hard-to-reach areas such as drilled holes and cavities, creates fine surfaces.

Where this product is used

• Suited to light brushing such as deburring, cleaning and derusting
• Steel wire is highly suitable for steel and cast iron, and suitable for plastics

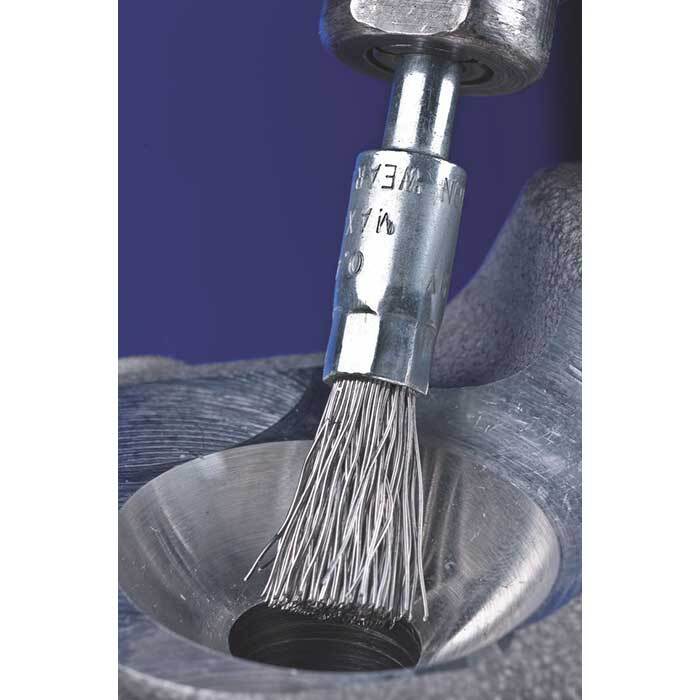

• Access to drilled holes and cavities

Features

• Brush diameter and cup diameter: 10 x 10mm, 13 x 12mm, 15 x 16mm, 20 x 22mm and 30 x 29mm
• 6mm shank
• Steel wire (ST), filament diameters 0.20mm, 0.35mm and 0.50mm
• The wires spread out on rotation, which gives access to hard-to-reach areas such as drilled holes and cavities
• Creates fine surfaces

Key specifications

Choosing the right option

Match the 6mm shank to your chuck or collet. The recommended cutting speed is 5 to 15 m/s for end brushes, depending on the application and below the maximum permitted speed. Steel wire is rated not suitable for stainless steel, aluminium or non-ferrous metals. Never exceed the maximum permitted speed marked on the brush, its label and .

The same PBU range in stainless steel wire, and the POS items: Pferd Pencil Brush PBU, Stainless Steel Wire, 6mm Shank, 10 x 10 to 30 x 29mm, Pferd Pencil Brush PBU (POS), Steel Wire, 6mm Shank, 15 x 16 and 20 x 22mm.
